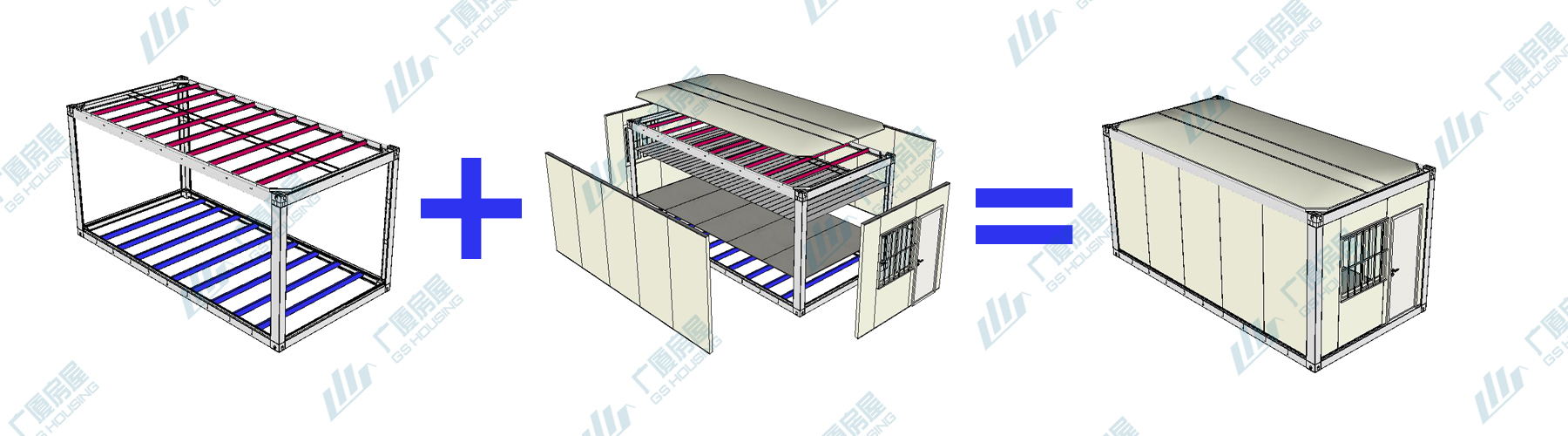

The container house is composed of top frame components, bottom frame components, columns and several interchangeable wall panels. Using modular design concepts and production technology, modularize a house into standard parts and assemble the houses on the construction site quickly.

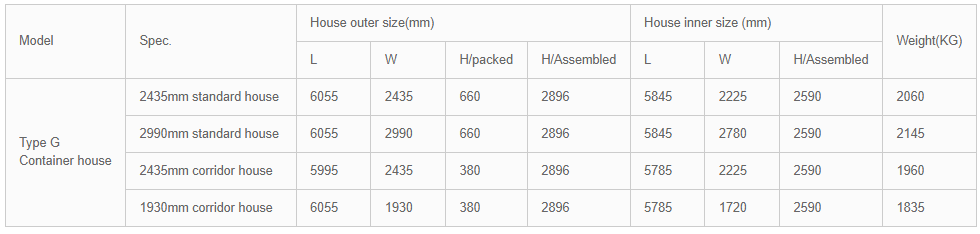

Model | Spec. | House outer size(mm) | House inner size (mm) | Weight(KG) | |||||
L | W | H/packed | H/Assembled | L | W | H/Assembled | |||
Type G Container house | 2435mm standard house | 6055 | 2435 | 660 | 2896 | 5845 | 2225 | 2590 | 2060 |
2990mm standard house | 6055 | 2990 | 660 | 2896 | 5845 | 2780 | 2590 | 2145 | |
2435mm corridor house | 5995 | 2435 | 380 | 2896 | 5785 | 2225 | 2590 | 1960 | |
1930mm corridor house | 6055 | 1930 | 380 | 2896 | 5785 | 1720 | 2590 | 1835 |
2435mm standard house
2990mm standard house
2435mm corridor house
1930mm corridor house
Custom Service of GS Housing Container House

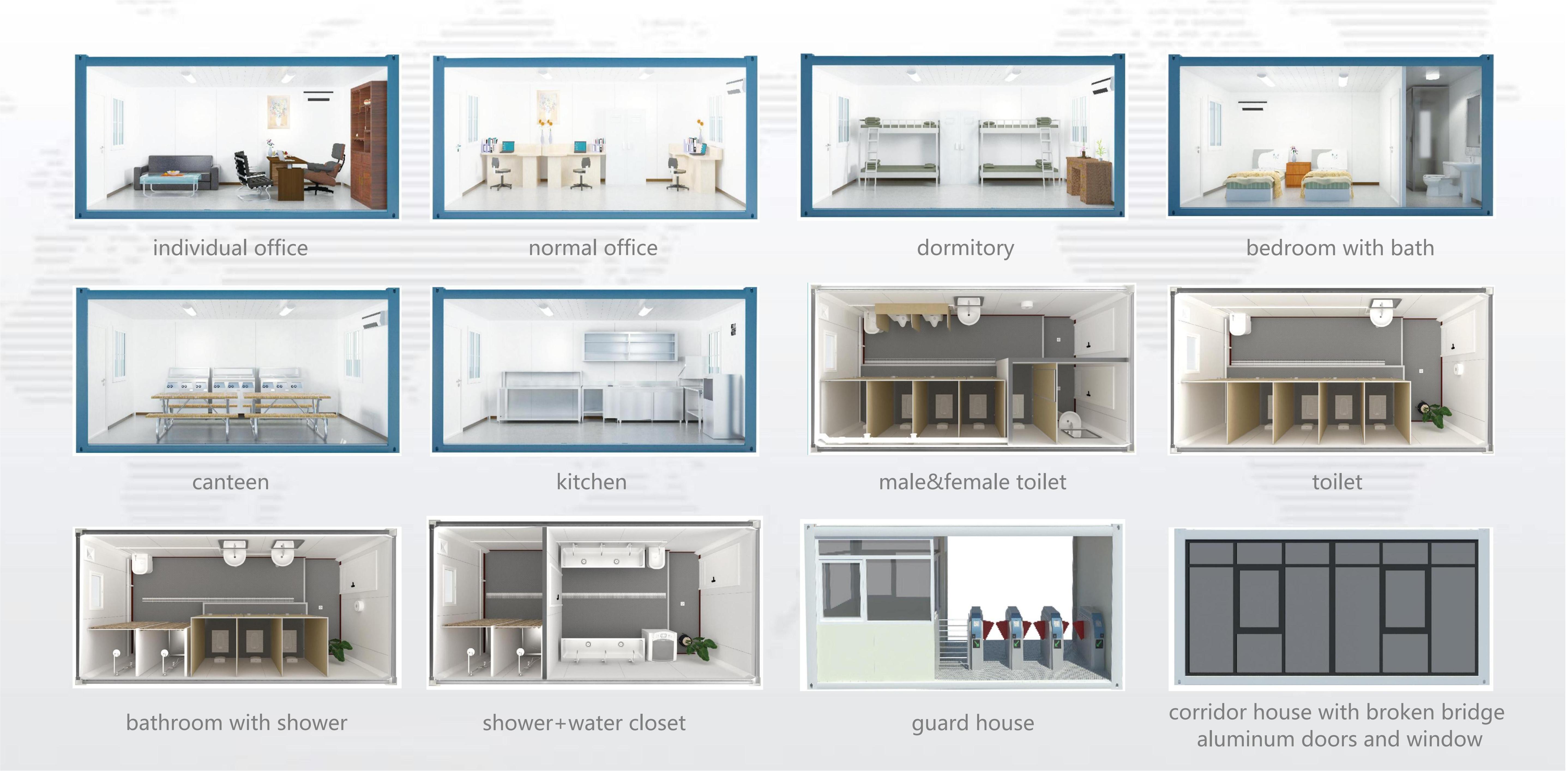

The size, color, function, decoration of container house can be customized according to your requirements.

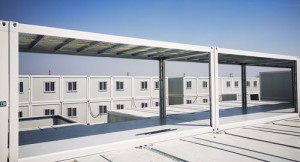

Main Structure of GS Housing Container House
Top Frame of the Container House
Main beam:3.0mm SGC340 galvanized cold-rolled steel profile
Sub-beam: 7pcs Q345B galvanizing steel, spec. C100x40x12x1.5mm
Bottom Frame of the Container House
Main beam: 3.5mm SGC340 galvanized cold-rolled steel profile
Sub-beam: 9pcs "π" typed Q345B, spec.:120*2.0

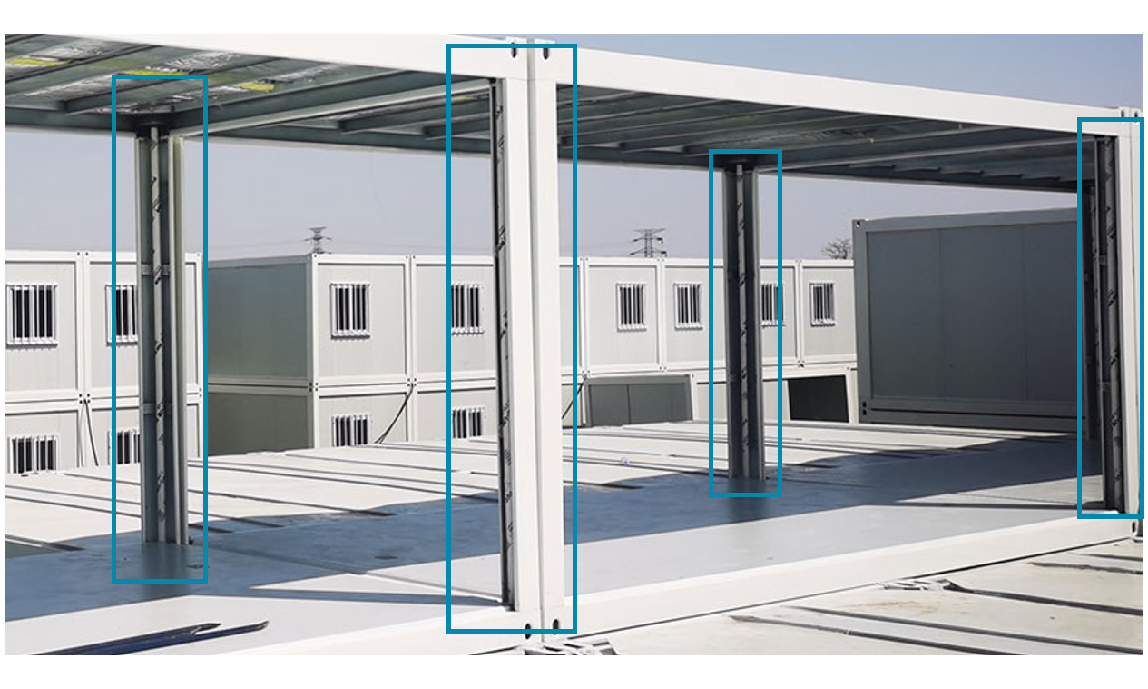

Corner post of the Container House
Material: 3.0mm SGC440 galvanized cold rolled steel profile
The Main structure of GS Housing container house is more higher than the house in market, normally the beam is lower than 2.5mm. Safety performance cannot be guaranteed.

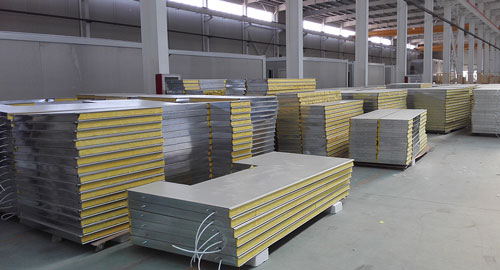

Wall panel system of GS housing container house
Outer board:0.5mm thick galvanized color steel plate, the zinc content is ≥40g/㎡, which guarantees anti-fading and anti-rust for 20 years.
Insulation layer: 50-120mm thick hydrophobic basalt wool (different thickness can be choosed according to different environment), density ≥100kg/m³, class A non-combustible.
Inner board: 0.5mm Alu-zinc colorful steel plate, PE coating

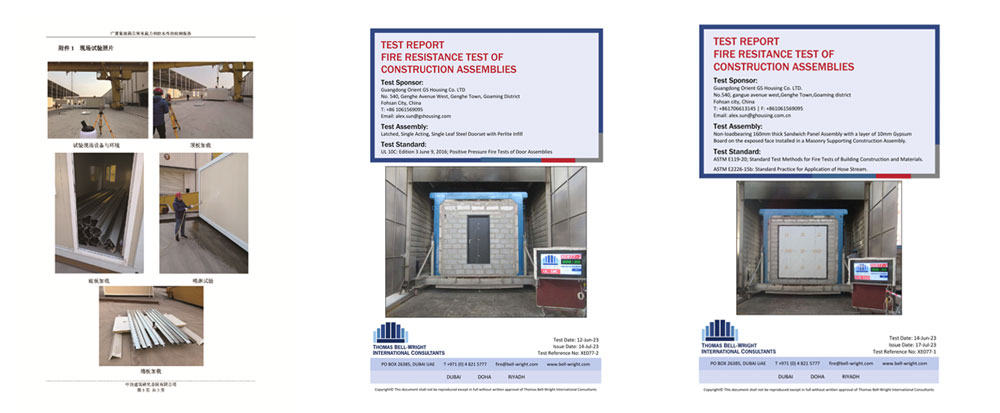

The wall panel of GS housing container house has passed 1 hour fireproof test with ASTM standard, which can highly imporve the insulation performance and life safety for users.

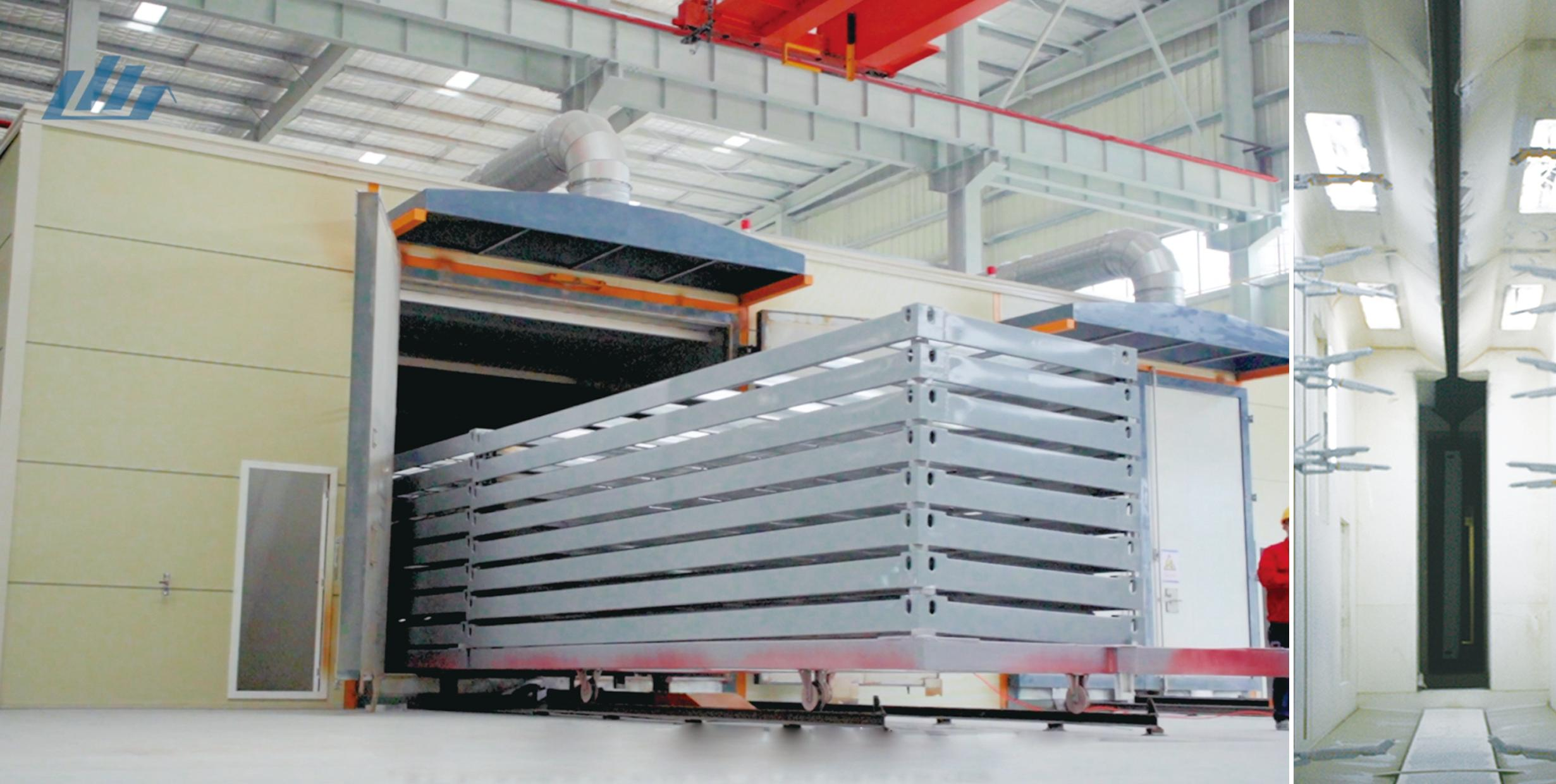

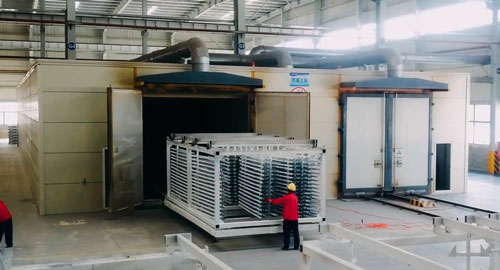

Painting of GS housing container house
Spray graphene powder evenly on the surface of the polished structural part. After heating at 200 degrees for 1 hour, the powder is fully melted and attached to the surface of the structure. After 4 hours of natural cooling, it can be used immediately.
Graphene powder spraying has higher adhesion,efficient than common water varnishes on the market, it’s anti-corrosion can up to 20 years.
Electrical System of GS Housing container house

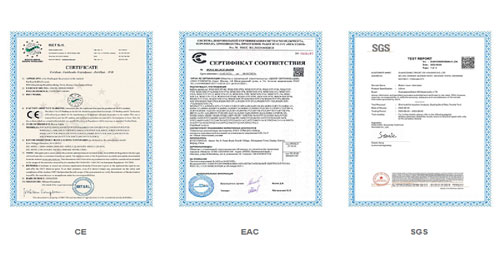

All electrical have the CE,UL,EAC... certifications to meet different country’s standard.
In order to respond to different regional electrical needs, GS Housing will do its best to solve electrical and certification issues for you.
Strictly Tests of GS Housing Container House
Before the launch of the new prefabricated building, the container house sample of GS housing company passed the air tightness, load-bearing, water resistance, fire resistance... rests and retest on a fixed date according to the industry standard, meantime the container houses has also passed the full inspection and secondary sampling inspection of GS Housing quality control team before delivery,that ensures the quality and safety performance of GS Housing’s prefabricated building.
IMIP Mining Camp Container House Project
The mining camp consists of 1605 sets container houses in IMIP,include standard multi functional flat packed container houses, guard modular houses, shower houses, male toilet houses, female toilet houses, bath rooms, water closet houses, shower houses and walkway container houses.
IMIP Project Reference Video
Features of IMIP Project
❈ Good drainage performance
Drainage ditch:Four PVC downpipes with a diameter of 50mm are designed on the corner column of the container house, to prove the drainage of heavy storms.

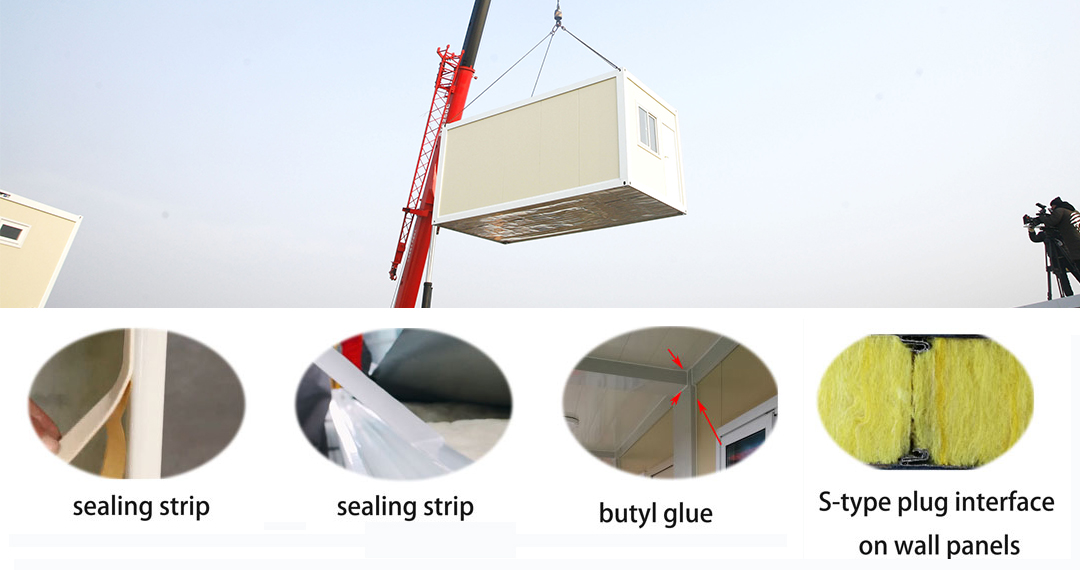

❈ Good sealing performance
1.360-degree lap joint outer roof panel to prevent rainwater entering the room from the roof
2.Sealing with sealing strip and butyl glue between the houses
3.S-type plug interface on wall panels to enhance the sealing performance
❈ Anti-corrosion performance
1. The structure is used galvanized cold-rolled steel profile which has high strength and anti-corrosion performance
2. Adopt graphene electrostatic spraying, and the thickness can be adjust according to the environment
GS Housing Container House factories
GS Housing's five factories have a comprehensive annual production capacity of more than 170,000 set container houses, we can bear the urgent, big orders, welcome to contact us for more details.
Let’s go into GS housing factory together:
