Female Toilet Ready Container House
The design of female toilet house in GS housing is humanized. The house can be moved as a whole, or packed and moved after dis-assembly, then assembled again on site and put into use after being connected with water and electricity.

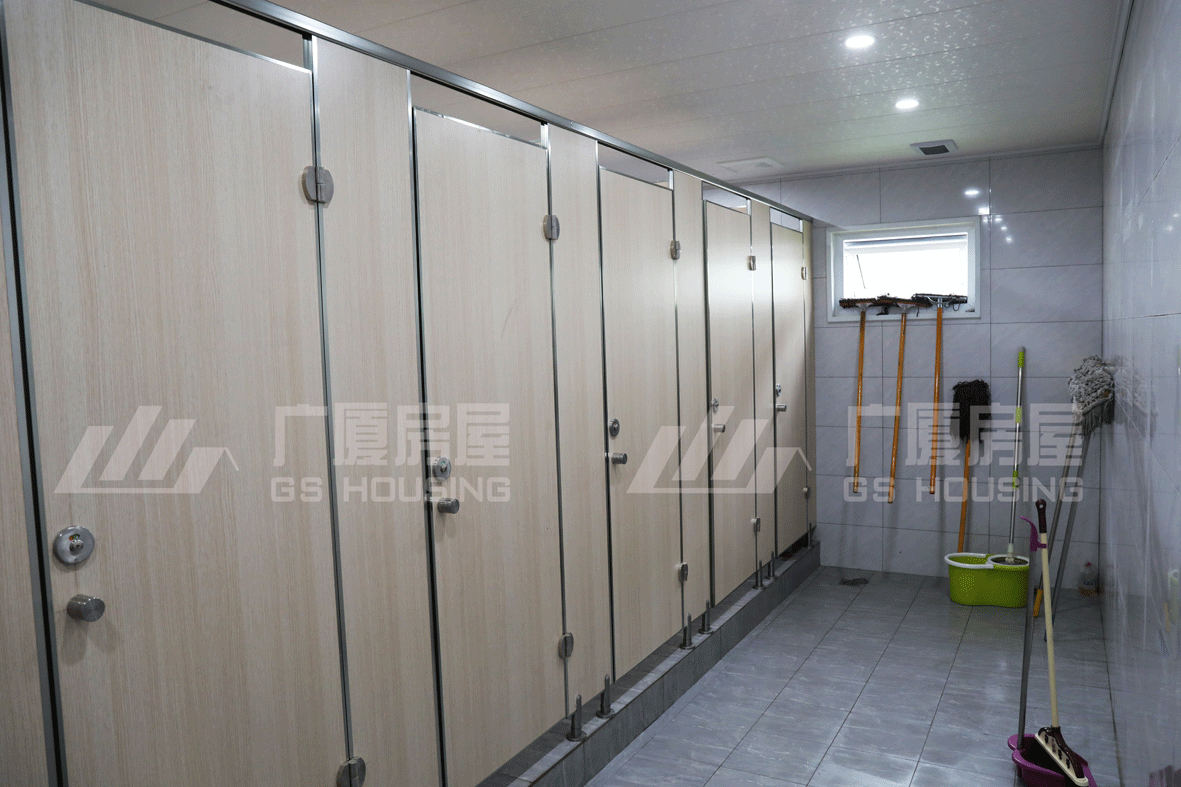

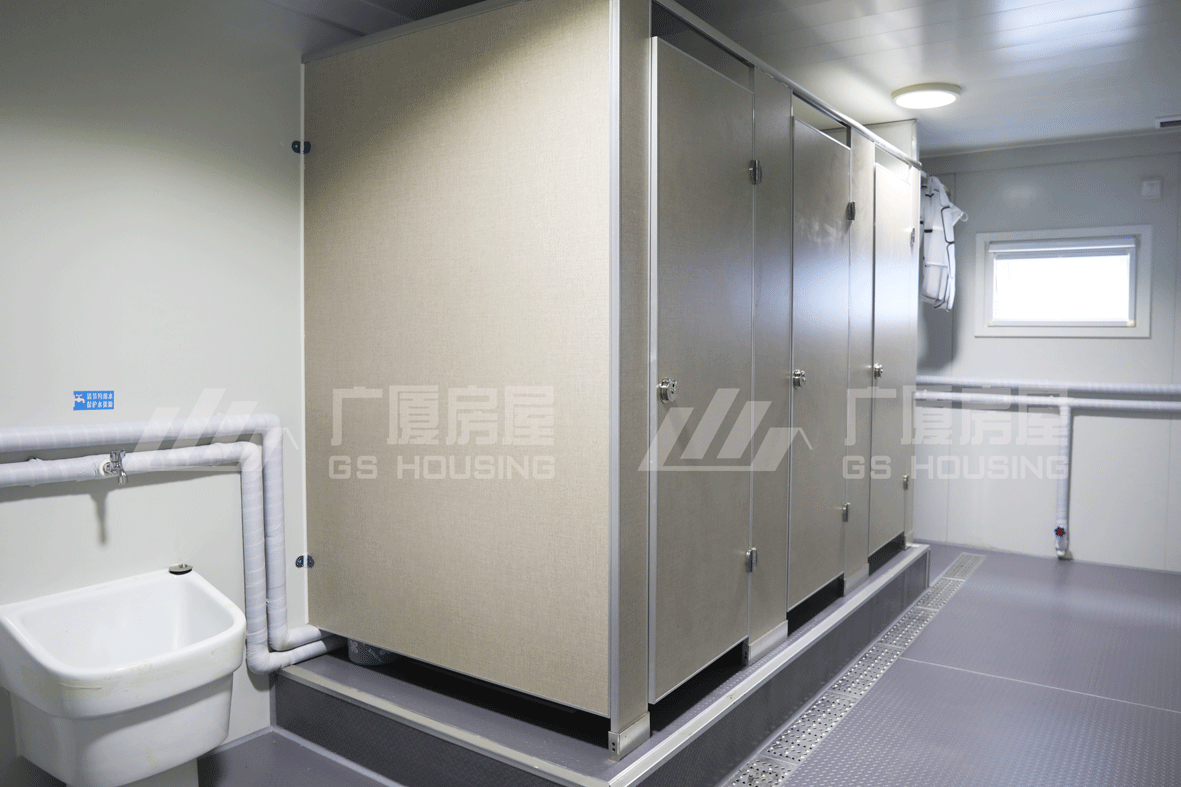

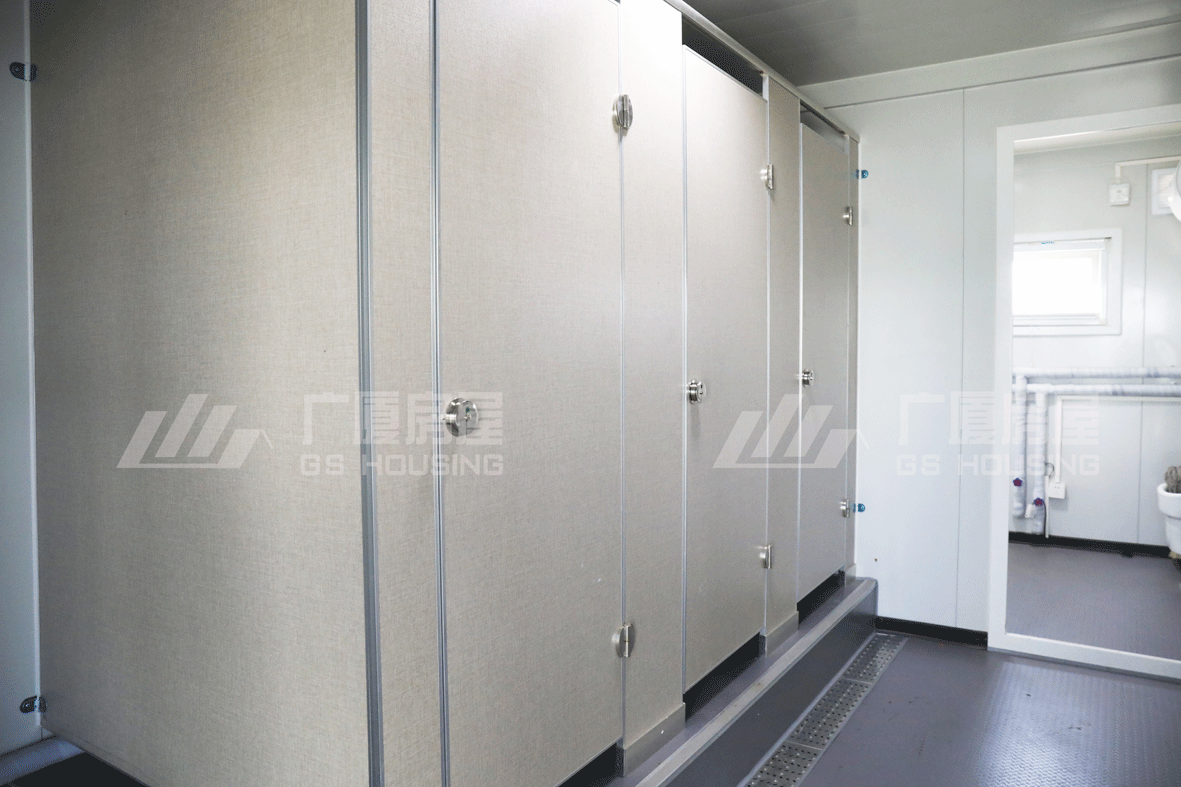

The sanitary ware in the standard female toilet house includes 5pcs squatting toilets and water tanks, 1pcs mop sink and faucet, 1pcs column basin and faucet, inside facilities could be designed according to different project requirements.
In addition , the standard width of the bath house is 2.4/ 3M,bigger or small size house could be customized.
Sanitary Wares Package
High Standard Structures
Top frame
Main beam:
3.0mm thick galvanized cold-rolled steel profile, material:SGC340;
Sub-beam: adopts 7pcs galvanizing steel, material: Q345B, interval: 755mm.
The thickness of the market modular houses is 2.5-2.7mm, service life is about 15 years. consider the oversea project, maintenance is not convenience, we’ve thicken the beam steel of the houses, 20 years usage life is ensured.
Bottom frame:
Main beam:
3.5mm thick galvanized cold-rolled steel profile, material:SGC340;
Sub-beam: 9pcs "π" typed galvanizing steel, material:Q345B,
The thickness of the market modular houses is 2.5-2.7mm, service life is about 15 years. consider the oversea project, maintenance is not convenience, we’ve thicken the beam steel of the houses, 20 years usage life is ensured.
Columns:
3.0mm Galvanized cold rolled steel profile, material: SGC440, four columns can be interchanged.
The columns are connected with the top frame and the bottom frame with Hexagon head bolts (strength: 8.8)
Ensure the insulation block is filled after completed the installation of columns.
Add the insulating tapes among the junctions of the structures and the wall panels to prevent the effect of cold and heat bridges and improve the performance of heat preservation and energy saving.
Wall panels:
Thickness:60-120mm thick colorful steel sandwich panel,
Outer board: The outer board is made of 0.42mm orange peel pattern Alu-zinc colorful steel plate, HDP coating,
Insulation layer: 60-120 mm thick hydrophobic basalt wool (environmental protection), density ≥100kg/m³, combustion performance is Class A non-combustible.
Inner wall panel: The inner panel adopts 0.42mm pure flat Alu-zinc colorful steel plate, PE coating,color : white gray,
Ensured the goods heat insulation,sound insulation performance.
Female Toilet Houses Application
The install of toilet house is more complex than the standard houses, but we have the detailed install instruction and videos, and the online video could be connected to help customers solve the install problem, of course,the installation supervisors can be dispatched to the site if needed.
There’s more than 360 professional house install workers in GS housing, more than 80% are worked in GS Housing over 8 years. At present, they have installed more than 2000 projects smoothly.
Production Bases Introduction
GS Housing's five production bases have a comprehensive annual production capacity of more than 170,000 houses,the strong comprehensive production and operation capabilities provide a solid backing for houses production. As well as the factories designed with garden-type, environment is very beautiful,They are large-scale new and modern modular building product production bases in China. A special modular housing research institute has been established to ensure that it provides customers with a safe, environmentally,friendly,intelligent and comfortable combined building space.
Smart factory-production base in Tianjin
Covers : 130,000㎡
Annual production capacity: 50,000 set houses
Garden-type factory- production base in Jiangsu
Covers: 80,000㎡
Annual production capacity : 30,000 set houses
6S model factory- production base in Guangdong
Covers: 90,000 ㎡
Annual production capacity: 50,000 set houses
Efficient factory-production base in Liaoning
Covers : 60,000㎡
Annual production capacity: 20,000 set houses.
Ecological factory-production base in Sichuan
Covers: 60,000㎡
Annual production capacity: 20,000 set houses.
GS Housing has the advanced supporting modular housing production lines, including fully automatic composite board production lines, Graphene electrostatic spray coating lines, independent profiling workshops, door and window workshops, machining workshops, assembly workshops, fully automatic CNC flame cutting machines, and laser cutting machines, portal submerged arc welding machines, carbon dioxide shielded welding, high-power punching presses, cold bending forming machines,milling machines, CNC bending and shearing machines etc. High quality operators are equipped in each machine, so the houses can achieved the full CNC production,that ensure the houses produced timely ,efficiently and accurately.
| Female toilet house specifiction | ||
| Specifiction | L*W*H（mm） | Outer size 6055*2990/2435*2896 Inner size 5845*2780/2225*2590 customzied size could be provided |
| Roof type | Flat roof with four internal drain-pipes (Drain-pipe cross size:40*80mm) | |
| Storey | ≤3 | |
| Design date | Designed service life | 20 years |
| Floor live load | 2.0KN/㎡ | |
| Roof live load | 0.5KN/㎡ | |
| Weather load | 0.6KN/㎡ | |
| Sersmic | 8 degree | |
| Structure | Column | Specification:210*150mm,Galvanized cold roll steel, t=3.0mm Material: SGC440 |
| Roof main beam | Specification:180mm,Galvanized cold roll steel, t=3.0mm Material: SGC440 | |
| Floor main beam | Specification:160mm,Galvanized cold roll steel, t=3.5mm Material: SGC440 | |
| Roof sub beam | Specification:C100*40*12*2.0*7PCS,Galvanized cold roll C steel, t=2.0mm Material:Q345B | |
| Floor sub beam | Specification:120*50*2.0*9pcs,”TT”shape pressed steel, t=2.0mm Material:Q345B | |
| Paint | Powder electrostatic spraying lacquer≥80μm | |
| Roof | Roof panel | 0.5mm Zn-Al coated colorful steel sheet, white-gray |
| Insulation material | 100mm glass wool with single Al foil. density ≥14kg/m³, Class A Non-combustible | |
| Ceiling | V-193 0.5mm pressed Zn-Al coated colorful steel sheet, hidden nail, white-gray | |
| Floor | Floor surface | 2.0mm PVC board, dark gray |
| Base | 19mm cement fiber board, density≥1.3g/cm³ | |
| Moistureproof layer | Moisture-proof plastic film | |
| Bottom sealing plate | 0.3mm Zn-Al coated board | |
| Wall | Thickness | 75mm thick colorful steel sandwich plate; Outer plate:0.5mm orange peel aluminum plated zinc colorful steel plate, ivory white, PE coating; Inner plate:0.5mm aluminum-zinc plated pure plate of color steel, white gray, PE coating; Adopt “S” type plug interface to eliminate the effect of cold and hot bridge |
| Insulation material | rock wool, density≥100kg/m³, Class A Non-combustible | |
| Door | Specification（mm） | W*H=840*2035mm |
| Material | Steel shutter | |
| Window | Specification（mm） | Window：WXH=800*500； |
| Frame material | Pastic steel, 80S, With anti-theft rod, Invisible screen window | |
| Glass | 4mm+9A+4mm double glass | |
| Electrical | Voltage | 220V~250V / 100V~130V |
| Wire | Main wire:6㎡, AC wire:4.0㎡,socket wire:2.5㎡,light switch wire:1.5㎡ | |
| Breaker | Miniature circuit breaker | |
| Lighting | Double circle lamps,18W | |
| Socket | 2pcs 5 holes socket 10A, 1pcs 3 holes AC socket 16A, 1pcs single connection plane switch 10A, (EU /US ..standard) | |
| Water Supply&Drainage System | Water supply system | DN32,PP-R,Water supply pipe and fittings |
| Water drainage system | De110/De50,UPVC Water drainage pipe and fittings | |
| Steel Frame | Frame material | Galvanized square pipe 口40*40*2 |
| Base | 19mm cement fiber board, density≥1.3g/cm³ | |
| Floor | 2.0mm thick non-slip PVC floor, dark grey | |
| Sanitary ware | Sanitary appliance | 5 squatting toilets and water tanks, 1 mop sink and faucet, 2 column basins and faucet |
| Partition | 1200*900*1800 Imitation wood grain partition, aluminum alloy card slot, stainless steel edge | |
| Fittings | 1 pcs tissue box, 2 pcs bathroom mirrors, Stainless steel gutter, stainless steel gutter grate, 1 pcs standy floor drain | |
| Others | Top and column decorate part | 0.6mm Zn-Al coated color steel sheet, white-gray |
| Skirting | 0.8mm Zn-Al coated color steel skirting, white-grey | |
| Door closers | 1 pcs Door Closer, Aluminium (optional) | |
| Exhaust fan | 1 pcs wall exhaust fan, stainless steel rainproof cap | |
| Adopt standard construction, the equipment and fittings are accord with national standard. as well as, customized size and related facilities can be provided according to your needs. | ||
