Wholesale Prefab Temporary Stair House

Short Description:

The stair houses are usually divided into two-story staircase and three-story staircase.

The two-story staircase includes 2pcs 2.4M/3M standard boxes, 1pcs two-story running staircase (with handrail and stainless steel), and the top of the house has upper manhole.

The three-story staircase includes 3pcs 2.4M/3M standard boxes, 1pcs three-story double running staircase (with handrail and stainless steel), and the top of the house has upper manhole.


Product Detail

Specfication

Video

Product Tags

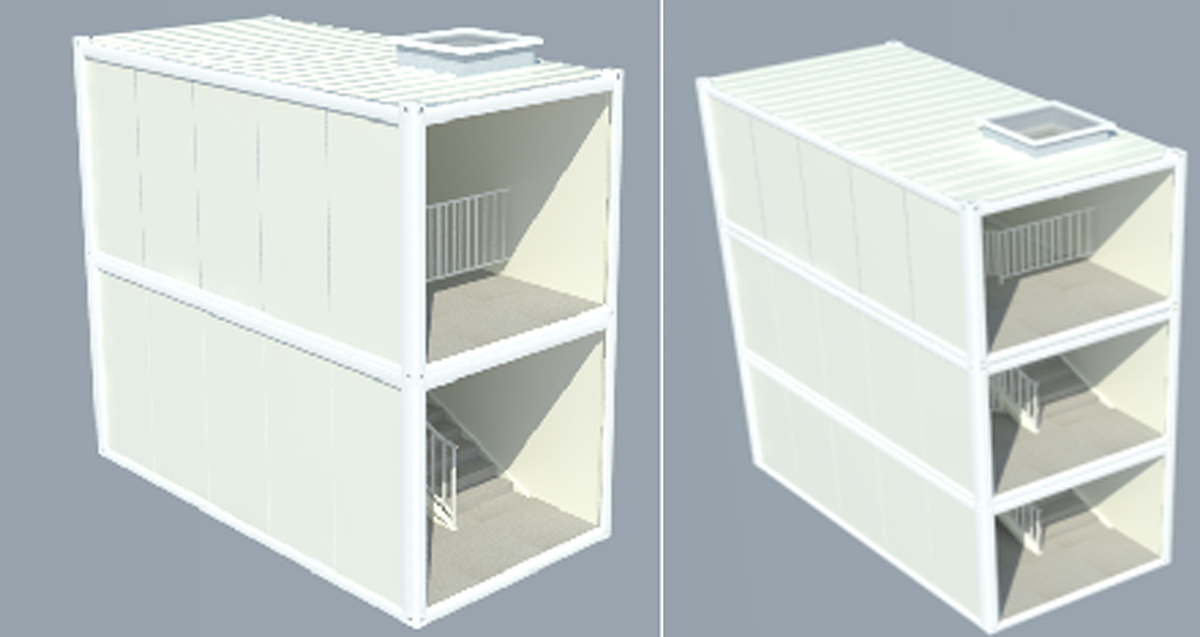

stair-house-(1)

The stair houses are usually divided into two-story staircase and three-story staircase.
The two-story staircase includes 2pcs 2.4M/3M standard boxes, 1pcs two-story running staircase (with handrail and stainless steel), and the top of the house has upper manhole.
The three-story staircase includes 3pcs 2.4M/3M standard boxes, 1pcs three-story double running staircase (with handrail and stainless steel), and the top of the house has upper manhole.

Each group of stair house is equipped with one group of emergency lights and safety evacuation instructions. The stair tread is 3mm thick checkered steel plate, and the surface layer is 2.0mm thick PVC floor (light gray). The stair house has strong structural stability and meets the load-bearing of 2.0kn/m2 to ensure the safety for personnel go through. The stairs and houses are prefabricated in factory, which are simple and fast to assemble,with 20 years design service life.

Stair (2)

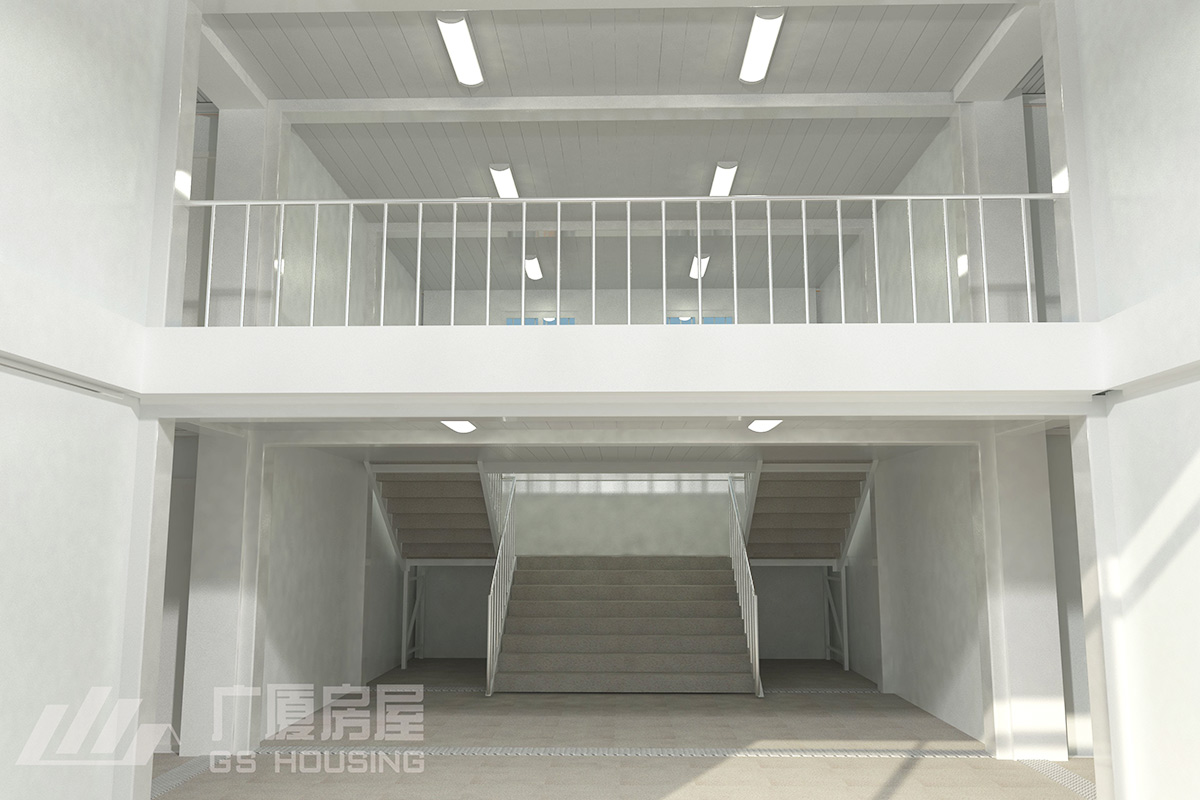

stair-house-(8)

Staircase Types

单跑楼梯
单跑楼梯2
单跑楼梯3
单跑楼梯4

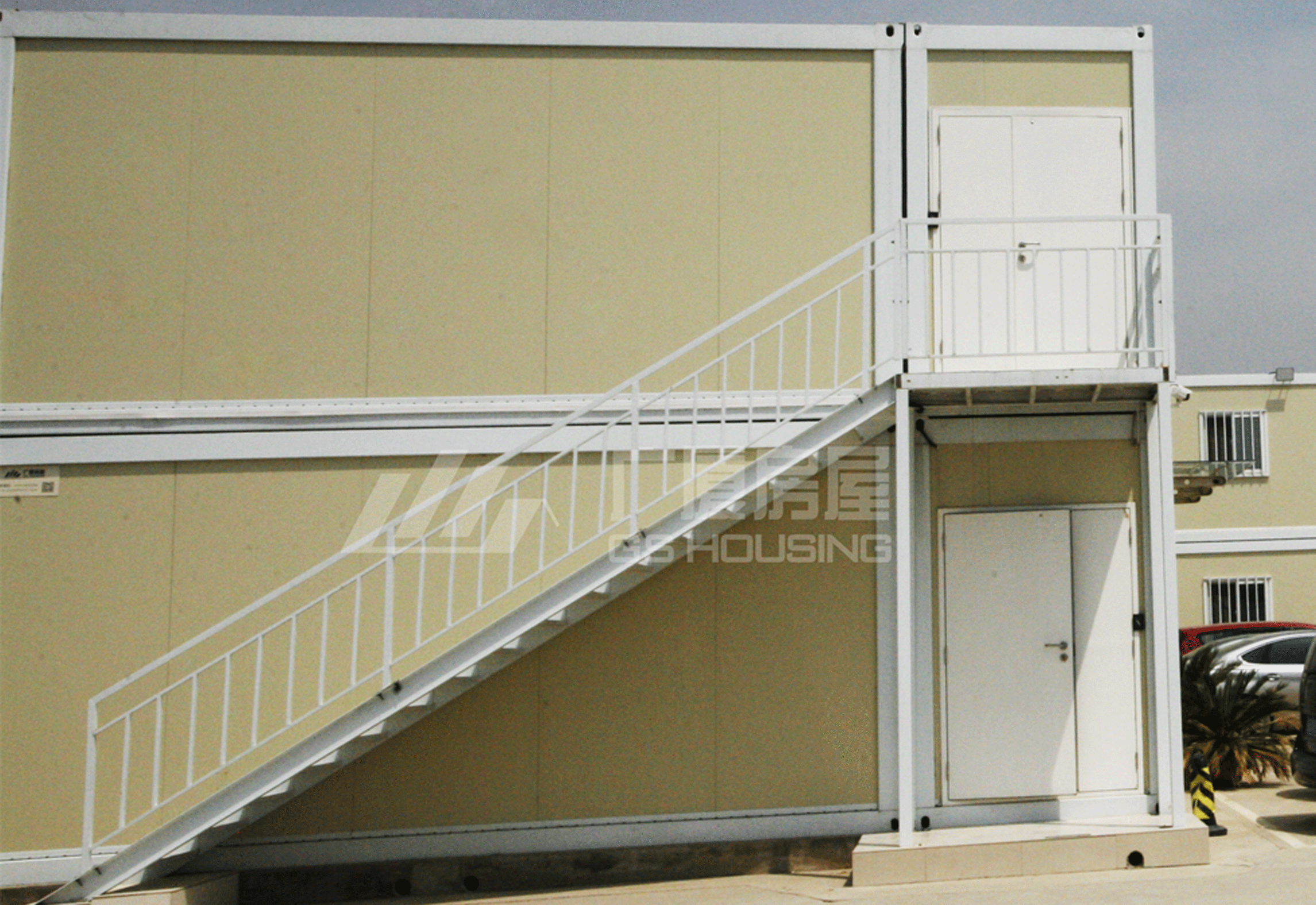

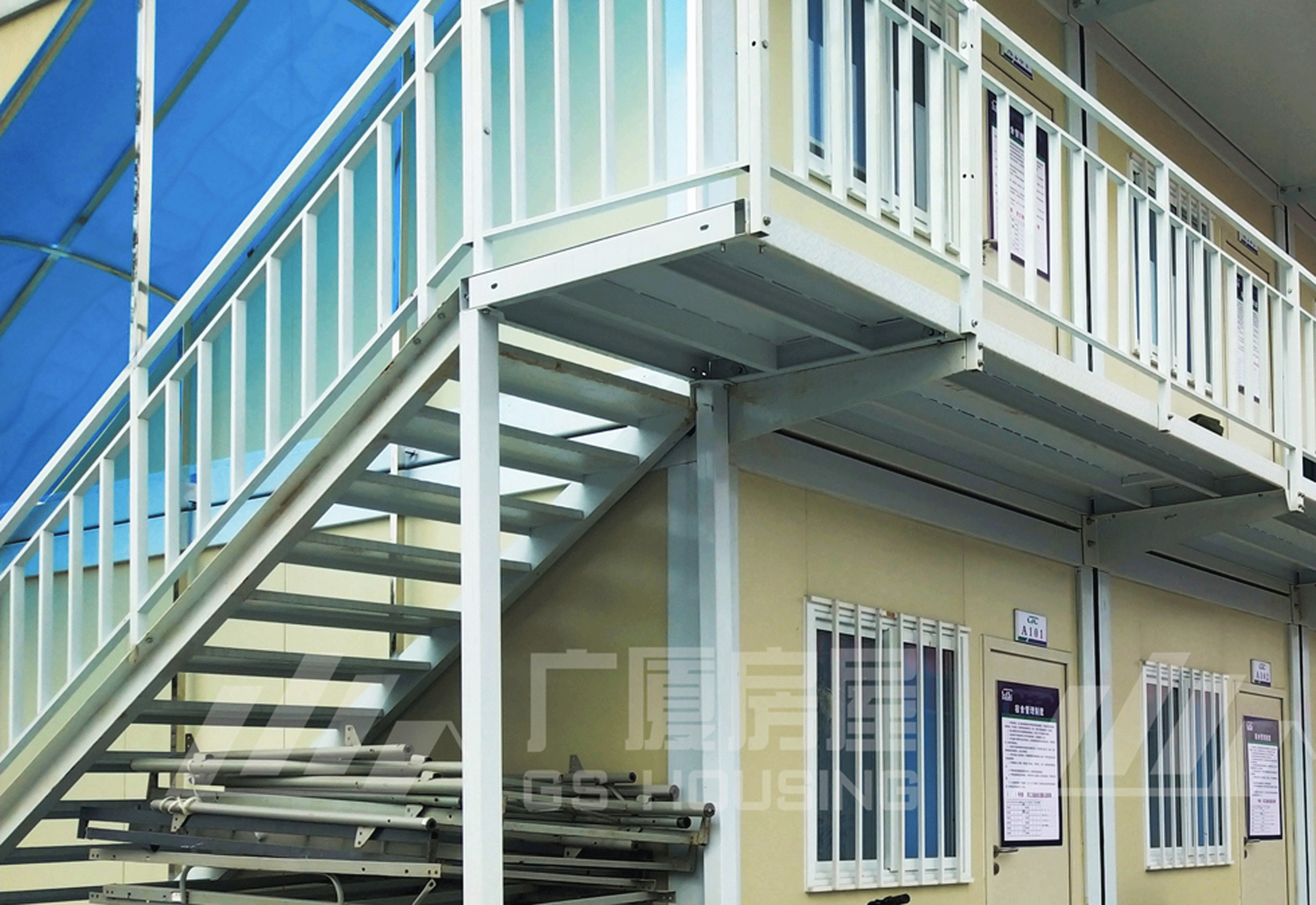

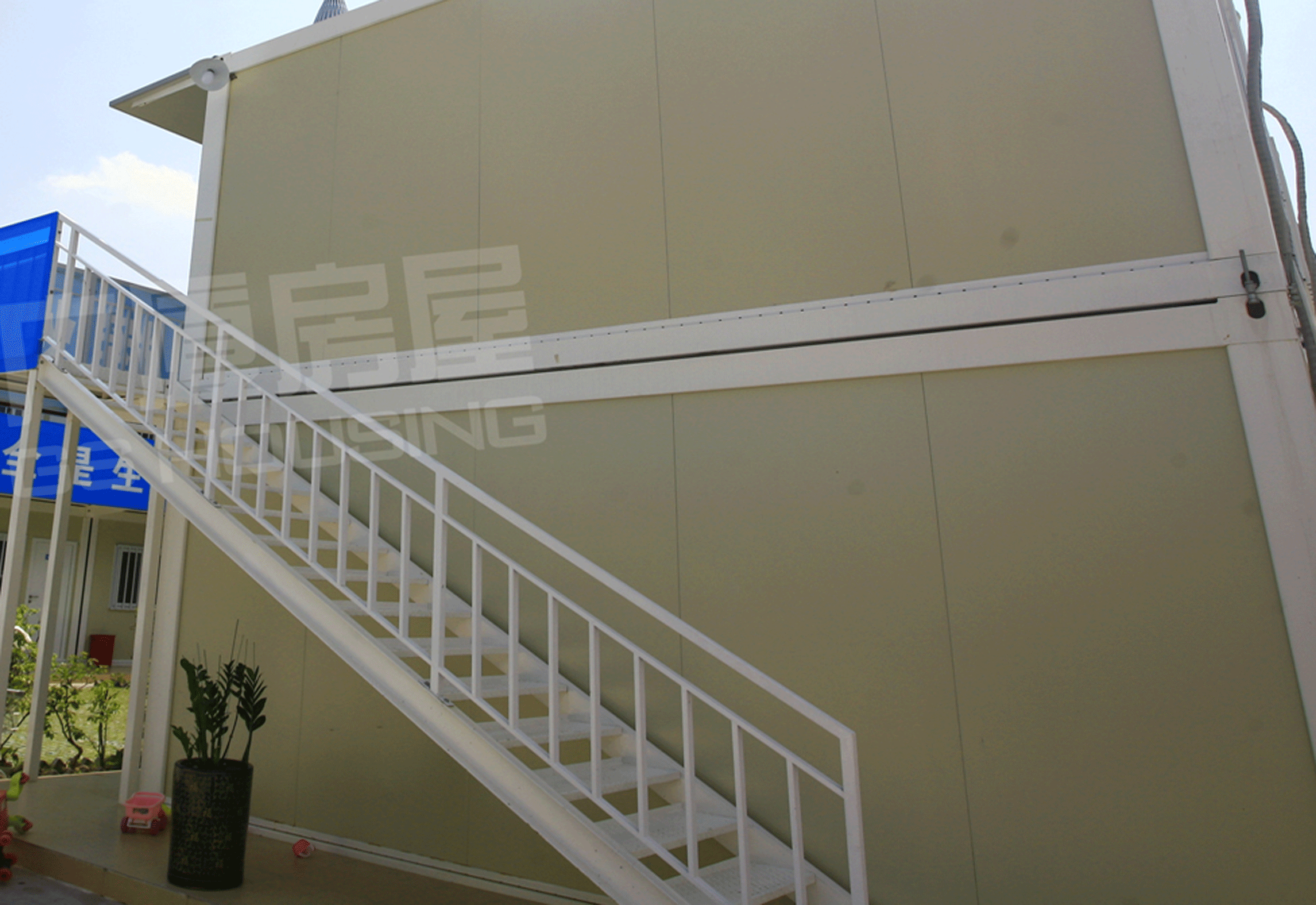

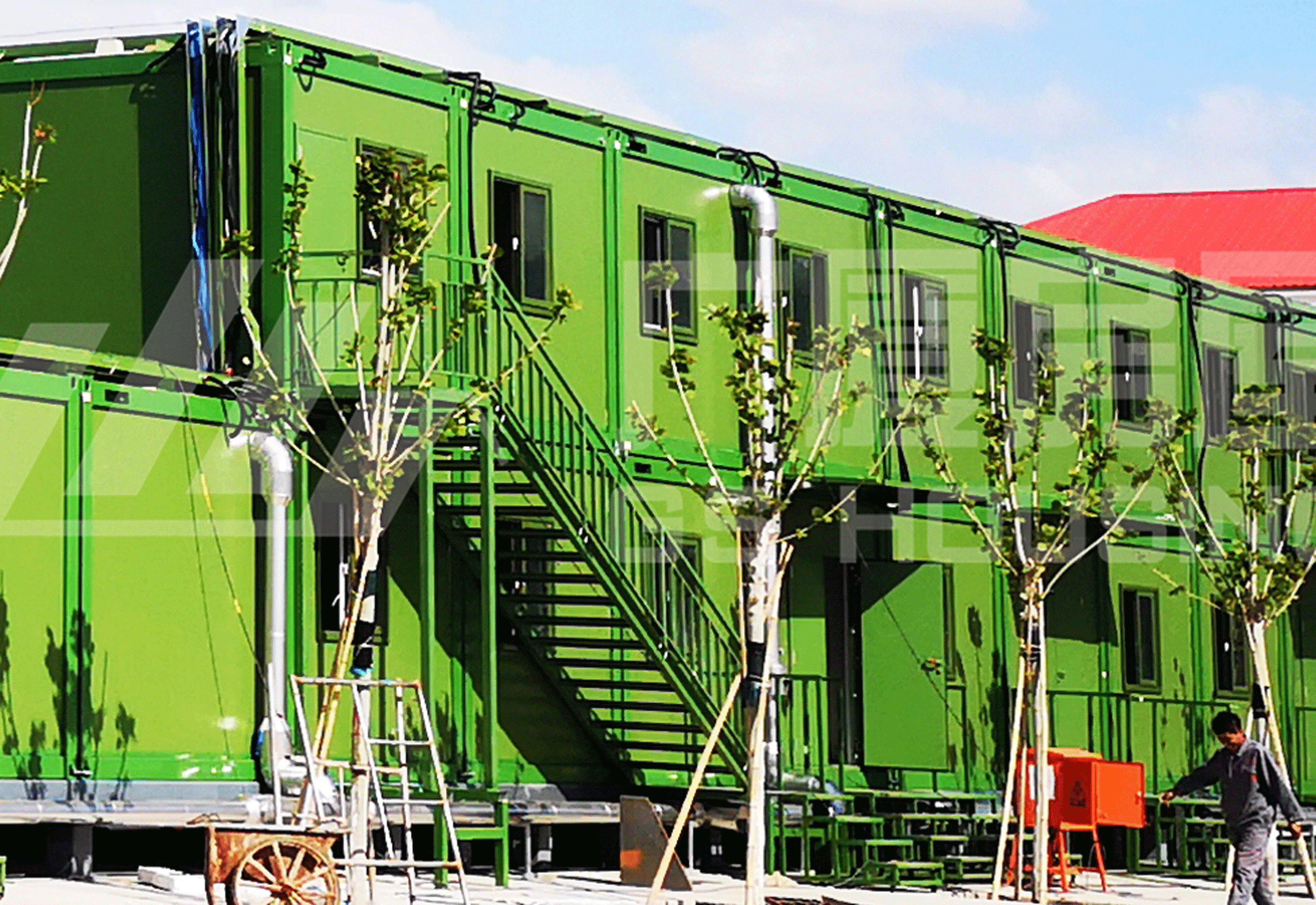

Single running staircase: (Commonly used in outdoors)

双跑2
双跑1
双跑3
双跑4

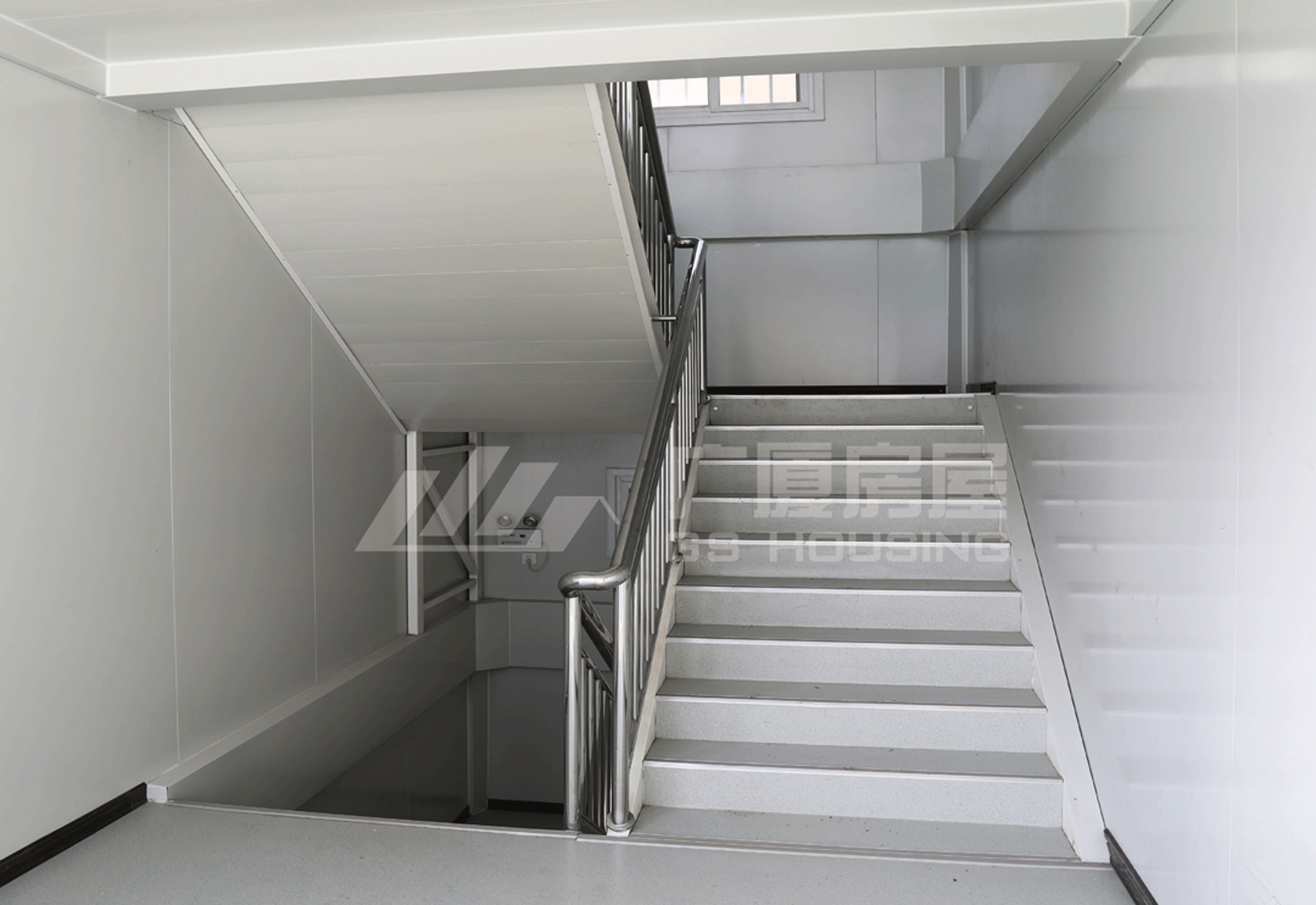

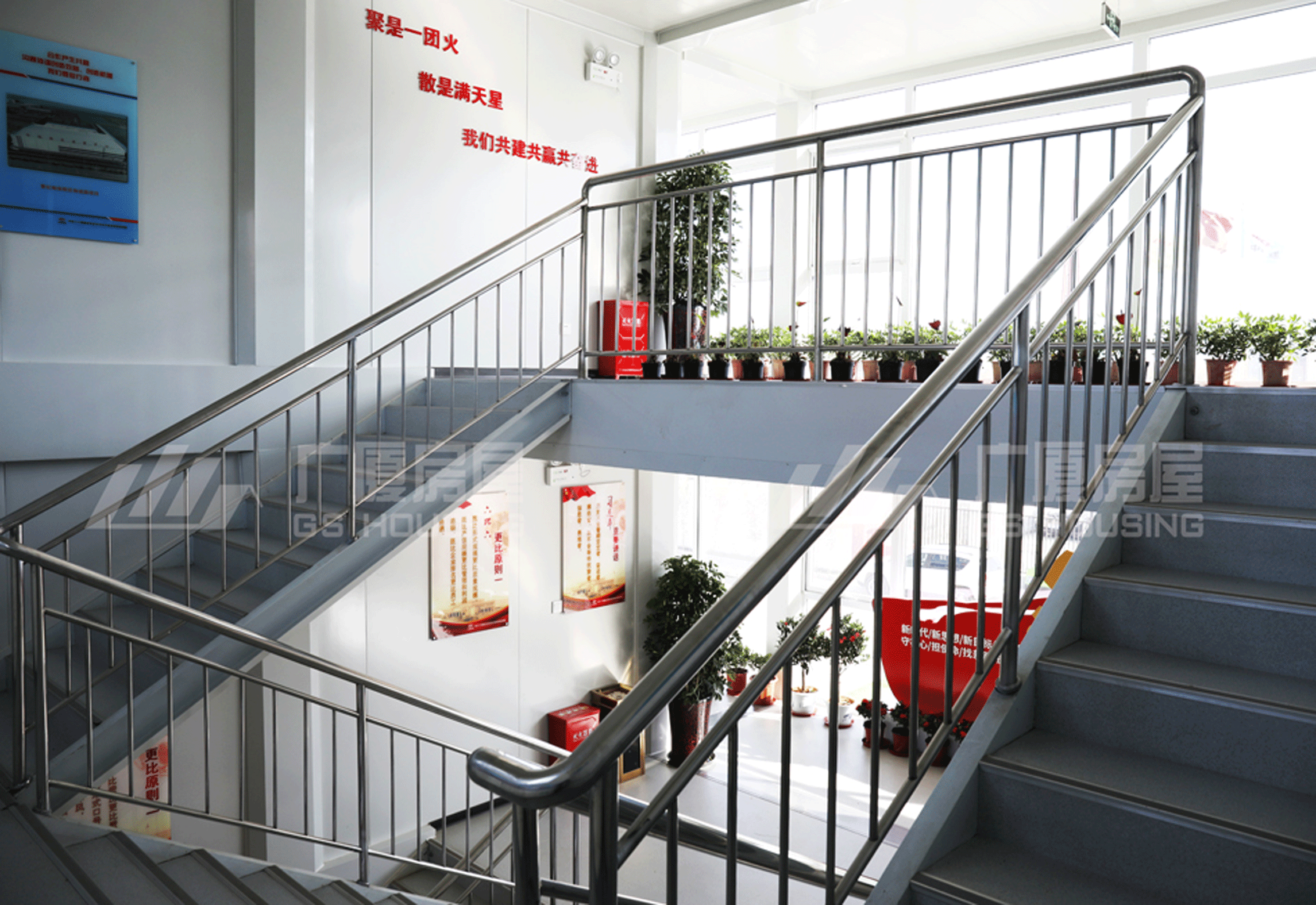

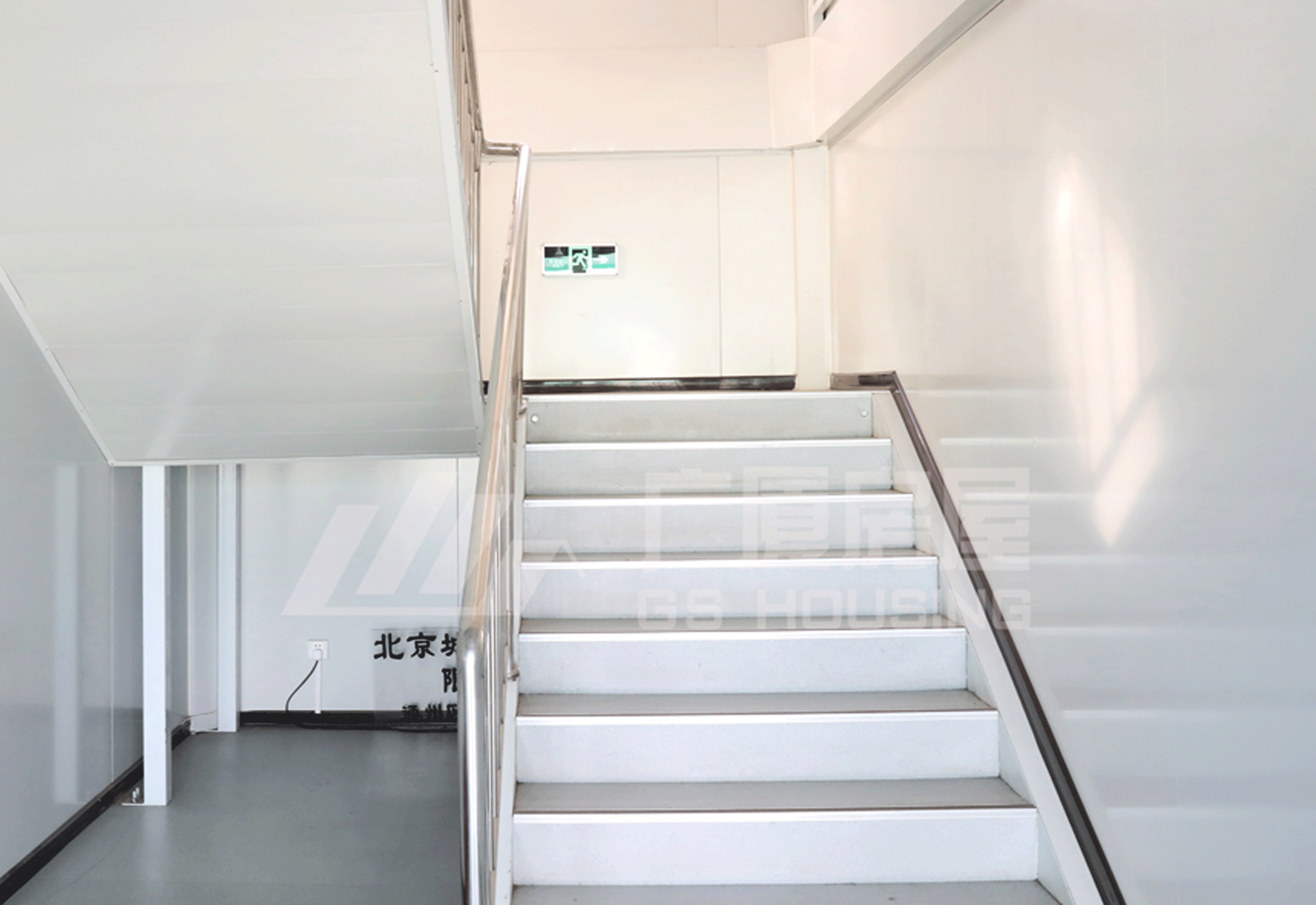

Double running staircase

平行双分1
平行双分2
平行双分3
平行双分4

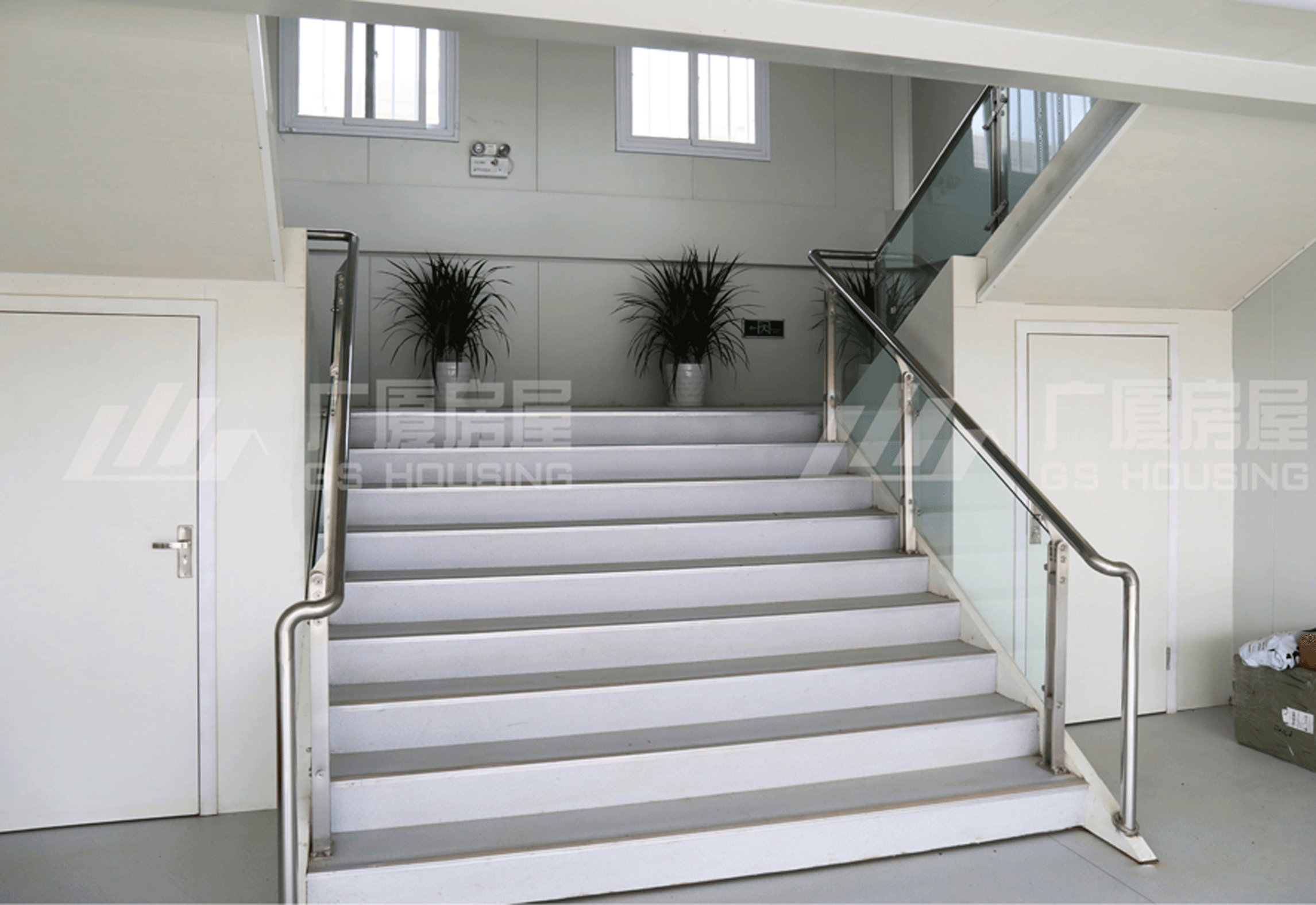

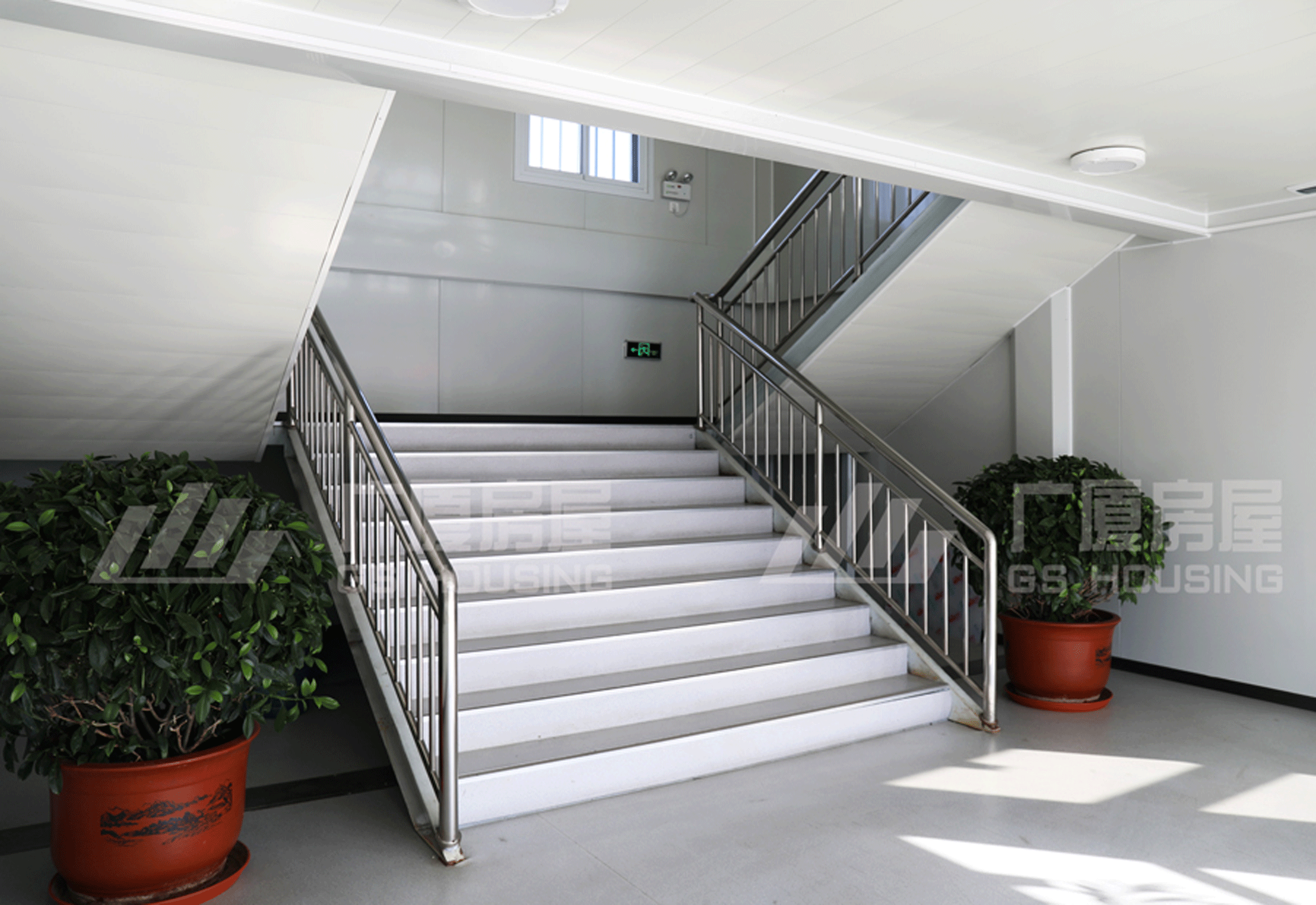

Parallel double staircase

Detail Display

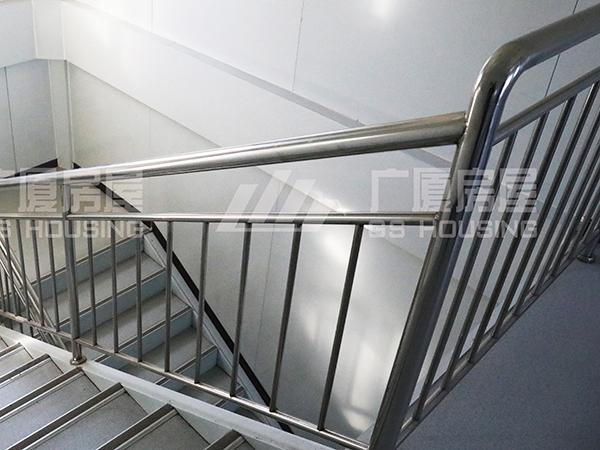

stair-house-(6)

Handrail: stainless steel

Ensures the safety of the persons, and provides convenience for personnel to go upstairs and downstairs

stair-house-(7)

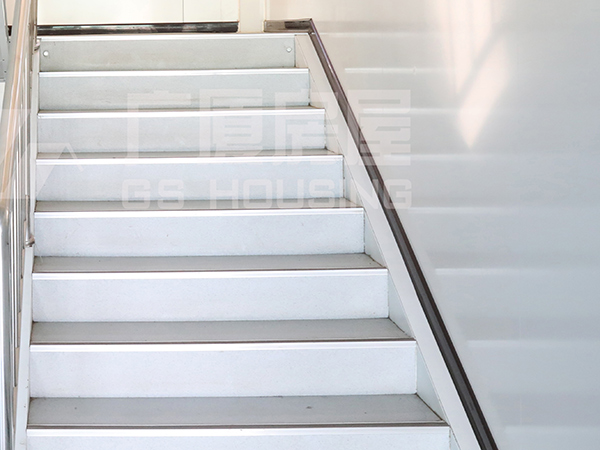

The stair tread:3 mm thick checkered steel plate

The surface layer: 2.0mm thick PVC floor , finished: light gray

stair-house-(5)

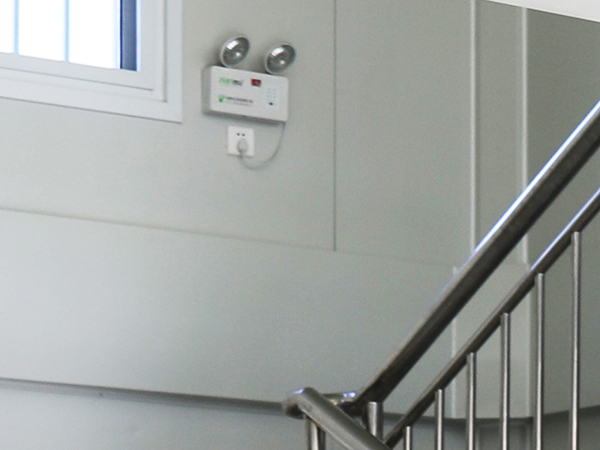

Emergency lights

stair-house-(3)

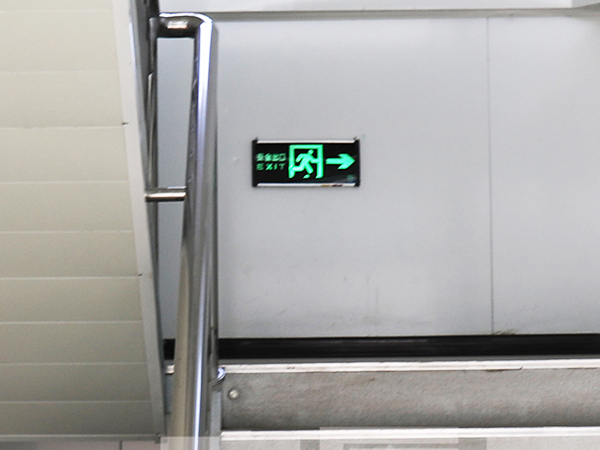

Safety evacuation instructions.

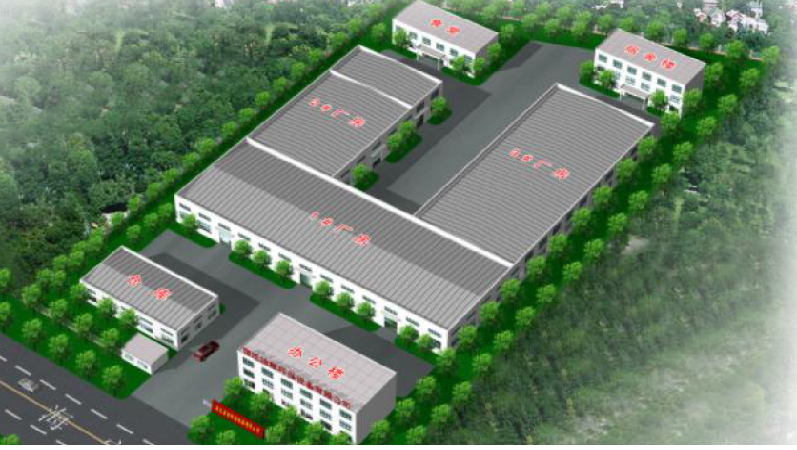

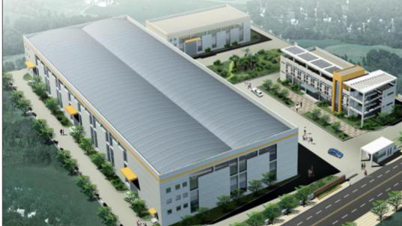

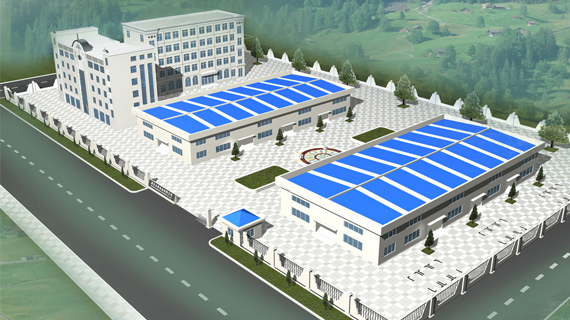

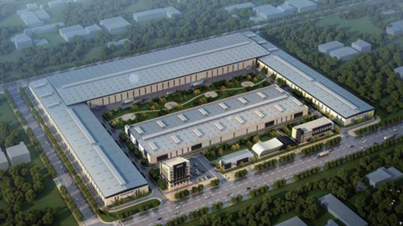

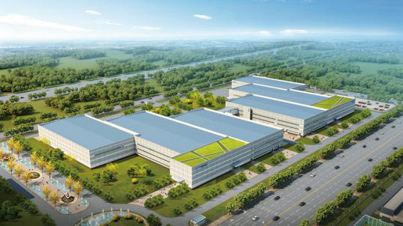

Production bases introduction

GS Housing's five production bases have a comprehensive annual production capacity of more than 170,000 houses,the strong comprehensive production and operation capabilities provide a solid backing for houses production. As well as the factories designed with garden-type, environment is very beautiful,They are large-scale new and modern modular building product production bases in China. A special modular housing research institute has been established to ensure that it provides customers with a safe, environmentally,friendly,intelligent and comfortable combined building space.

佛山工厂

6S model factory- production base in Guangdong

Covers: 90,000 ㎡

Annual production capacity: 50,000 set houses

沈阳工厂

Efficient factory-production base in Liaoning

Covers : 60,000㎡

Annual production capacity: 20,000 set houses.

天津工厂

Smart factory-production base in Tianjin

Covers : 130,000㎡

Annual production capacity: 50,000 set houses

常熟工厂

Garden-type factory- production base in Jiangsu

Covers: 80,000㎡

Annual production capacity : 30,000 set houses

成都工厂

Ecological factory-production base in Sichuan

Covers: 60,000㎡

Annual production capacity: 20,000 set houses.

GS housing has an advanced supporting modular housing production line, and each machine is equipped with professional operators, so that the house can realize full NC production and ensure that the house production is timely, efficient and accurate.

stair-house-09

  • Previous:
  • Next:

  • Two-story stair house specfication
    Specifiction L*W*H(mm) 2 sets houses:Outer size of 1 set house 6055*2990/2435*2896 ,Inner size 5845*2780/2225*2590
    customzied size could be provided
    Roof type Flat roof with four internal drain-pipes (Drain-pipe cross size:40*80mm)
    Storey ≤3
    Design date Designed service life 20 years
    Floor live load 2.0KN/㎡
    Roof live load 0.5KN/㎡
    Weather load 0.6KN/㎡
    Sersmic 8 degree
    Structure Column Specification:210*150mm,Galvanized cold roll steel, t=3.0mm Material: SGC440
    Roof main beam Specification:180mm,Galvanized cold roll steel, t=3.0mm Material: SGC440
    Floor main beam Specification:160mm,Galvanized cold roll steel, t=3.5mm Material: SGC440
    Roof sub beam Specification:C100*40*12*2.0*7PCS,Galvanized cold roll C steel, t=2.0mm Material:Q345B
    Floor sub beam Specification:120*50*2.0*9pcs,”TT”shape pressed steel, t=2.0mm Material:Q345B
    Paint Powder electrostatic spraying   lacquer≥80μm
    Roof Roof panel 0.5mm Zn-Al coated colorful steel sheet, white-gray
    Insulation material 100mm glass wool with single Al foil. density ≥14kg/m³, Class A Non-combustible
    Ceiling V-193 0.5mm pressed  Zn-Al coated colorful steel sheet, hidden nail, white-gray
    Floor Floor surface 2.0mm PVC board, dark gray
    Base 19mm cement fiber board, density≥1.3g/cm³
    Moistureproof layer Moisture-proof plastic film
    Bottom sealing plate 0.3mm Zn-Al coated board
    Wall Thickness 75mm thick colorful steel sandwich plate; Outer plate:0.5mm orange peel aluminum plated zinc colorful steel plate, ivory white, PE coating; Inner plate:0.5mm aluminum-zinc plated pure plate of color steel, white gray, PE coating; Adopt “S” type plug interface to eliminate the effect of cold and hot bridge
    Insulation material rock wool,density≥100kg/m³, Class A Non-combustible
    Window Specification(mm) Back window: W*H=1150*1100
    Frame material Pastic steel, 80S, With anti-theft rod, Invisible screen window
    Glass 4mm+9A+4mm double glass
    Electrical Voltage 220V~250V / 100V~130V
    Wire Main wire:6㎡, AC wire:4.0㎡(reserved),socket wire:2.5㎡,light switch wire:1.5㎡
    Breaker Miniature circuit breaker
    Lighting 3sets LED daylight lamp,30W
    Socket 1pcs 5 holes socket 10A,2pcs single connection plane switch 10A  (EU /US ..standard)
    Emergency Emergency light 1 set emergency lights
    Evacuation instructions 1 set safe evacuation instructions
    two-flight stairs step 3mm thick patterned steel plate, surface layer: 2.0mm thick PVC floor, light gray
    platform Base: 19mm thick cement fiberboard, top layer: 2.0mm thick PVC floor, light grey
    handrail Height:900mm, steel handrail
    Stair bottom sealing plate V-193 ceiling plate, color:white gray
    Others Holes in  roof 900x900W hole (optional)
    Top and column decorate part 0.6mm Zn-Al coated color steel sheet, white-gray
    Skirting 0.8mm Zn-Al coated color steel skirting, white-grey
    Adopt standard construction, the equipment and fittings are accord with national standard. as well as, customized size can be provided according to your needs.



    Three-story stair house specfication
    Specifiction L*W*H(mm) 3 sets houses:Outer size of 1 set house 6055*2990/2435*2896 ,Inner size 5845*2780/2225*2590  customzied size could be provided
    Roof type Flat roof with four internal drain-pipes (Drain-pipe cross size:40*80mm)
    Storey ≤3
    Design date Designed service life 20 years
    Floor live load 2.0KN/㎡
    Roof live load 0.5KN/㎡
    Weather load 0.6KN/㎡
    Sersmic 8 degree
    Structure Column Specification:210*150mm,Galvanized cold roll steel, t=3.0mm Material: SGC440
    Roof main beam Specification:180mm,Galvanized cold roll steel, t=3.0mm Material: SGC440
    Floor main beam Specification:160mm,Galvanized cold roll steel, t=3.5mm Material: SGC440
    Roof sub beam Specification:C100*40*12*2.0*7PCS,Galvanized cold roll C steel, t=2.0mm Material:Q345B
    Floor sub beam Specification:120*50*2.0*9pcs,”TT”shape pressed steel, t=2.0mm Material:Q345B
    Paint Powder electrostatic spraying   lacquer≥80μm
    Roof Roof panel 0.5mm Zn-Al coated colorful steel sheet, white-gray
    Insulation material 100mm glass wool with single Al foil. density ≥14kg/m³, Class A Non-combustible
    Ceiling V-193 0.5mm pressed  Zn-Al coated colorful steel sheet, hidden nail, white-gray
    Floor Floor surface 2.0mm PVC board, dark gray
    Base 19mm cement fiber board, density≥1.3g/cm³
    Moistureproof layer Moisture-proof plastic film
    Bottom sealing plate 0.3mm Zn-Al coated board
    Wall Thickness 75mm thick colorful steel sandwich plate; Outer plate:0.5mm orange peel aluminum plated zinc colorful steel plate, ivory white, PE coating; Inner plate:0.5mm aluminum-zinc plated pure plate of color steel, white gray, PE coating; Adopt “S” type plug interface to eliminate the effect of cold and hot bridge
    Insulation material rock wool, density≥100kg/m³, Class A Non-combustible
    Window Specification(mm) Back window:W*H=1150*1100,front window:WXH=500*1100
    Frame material Pastic steel, 80S, With anti-theft rod, Invisible screen window
    Glass 4mm+9A+4mm double glass
    Electrical Voltage 220V~250V / 100V~130V
    Wire Main wire:6㎡, AC wire:4.0㎡,socket wire:2.5㎡,light switch wire:1.5㎡
    Breaker Miniature circuit breaker
    Lighting 4sets LED daylight lamp,30W
    Socket 2pcs 5 holes socket 10A,3pcs single connection plane switch 10A  (EU /US ..standard)
    Emergency Emergency light 2 set emergency lights
    Evacuation instructions 2 set safe evacuation instructions
    three-flight stairs step 3mm thick patterned steel plate, surface layer: 2.0mm thick PVC floor, light gray
    platform Base: 19mm thick cement fiberboard, top layer: 2.0mm thick PVC floor, light grey
    handrail Height:900mm, steel handrail
    Stair bottom sealing plate V-193 ceiling plate, color:white gray
    Others Holes in  roof 900x900W hole (optional)
    Top and column decorate part 0.6mm Zn-Al coated color steel sheet, white-gray
    Skirting 0.8mm Zn-Al coated color steel skirting, white-grey
    Adopt standard construction, the equipment and fittings are accord with national standard. as well as, customized size can be provided according to your needs.
