Detachable 2.4 Meter & 3 Meter Shower House

Short Description:

Shower house is added the shower base, shower raise frame, shower flower, the water supply & drainage system on the standard flat packed container house , to meets people’s bathing and washing. Each shower partition is equipped with shower curtain to improve privacy. The rear of wall is equipped with an exhaust fan and an external rain cover to meet ventilation requirements. The ground drainage system is unimpeded, and the water supply and drainage pipes extend 30cm outside the back wall.


Product Detail

Specifiction

Video

Product Tags

Shower house is added the shower base, shower raise frame, shower flower, the water supply & drainage system on the standard flat packed container house , to meets people's bathing and washing. Each shower partition is equipped with shower curtain to improve privacy. The rear of wall is equipped with an exhaust fan and an external rain cover to meet ventilation requirements. The ground drainage system is unimpeded, and the water supply and drainage pipes extend 30cm outside the back wall. The hot and cold water can be used on site. Standard shower house is equipped with 5 acrylic shower bottom basins, 5 sets of shower showers, 2 column basins and faucets, all with high quality copper core materials, the inside facilities could be redesigned according to the project requirements.

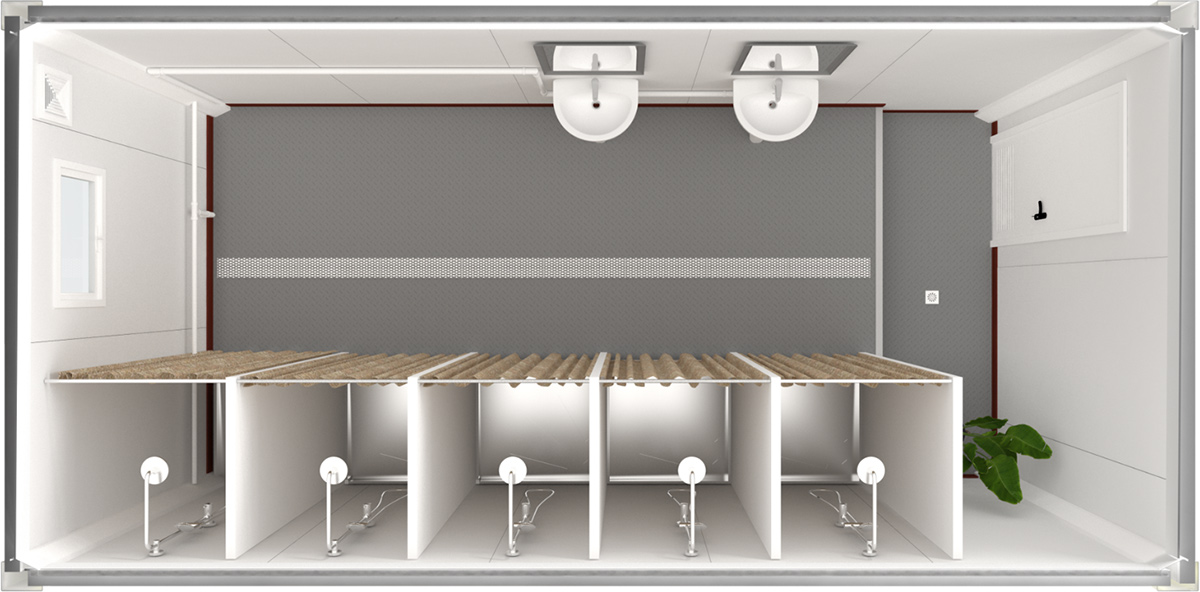

Shower-house-1

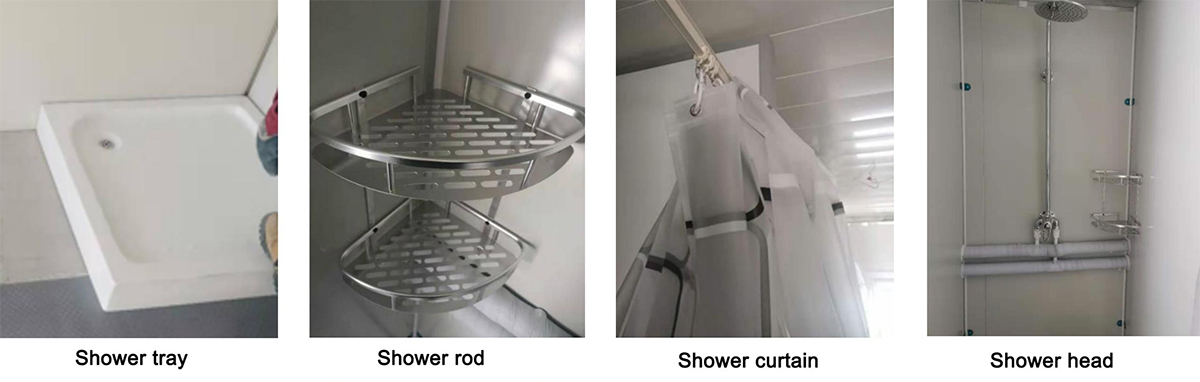

Details of the shower

Shower-house-2

Optional internal decoration

Ceiling


V-170 ceiling (hidden nail)


V-290 ceiling (without nail)

Surface of the wall panel


Wall ripple panel


Orange peel panel

Insulation layer of the wall panel


Rock wool


Glass cotton

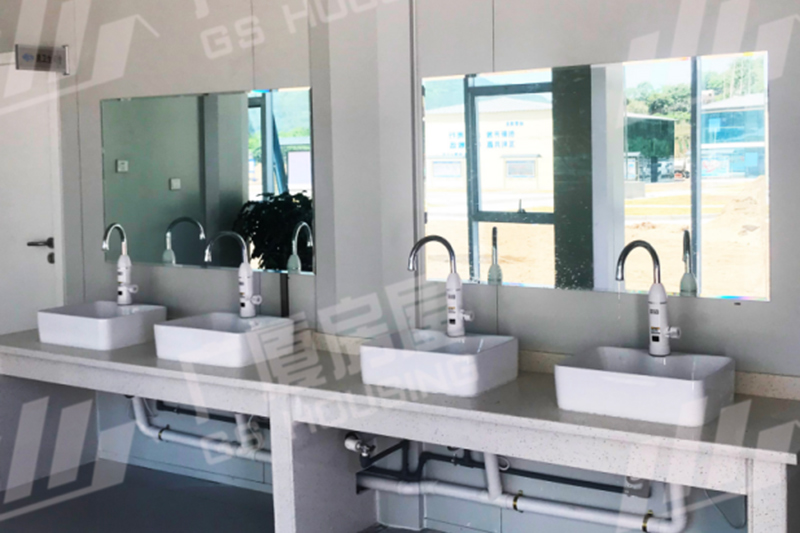

Basin

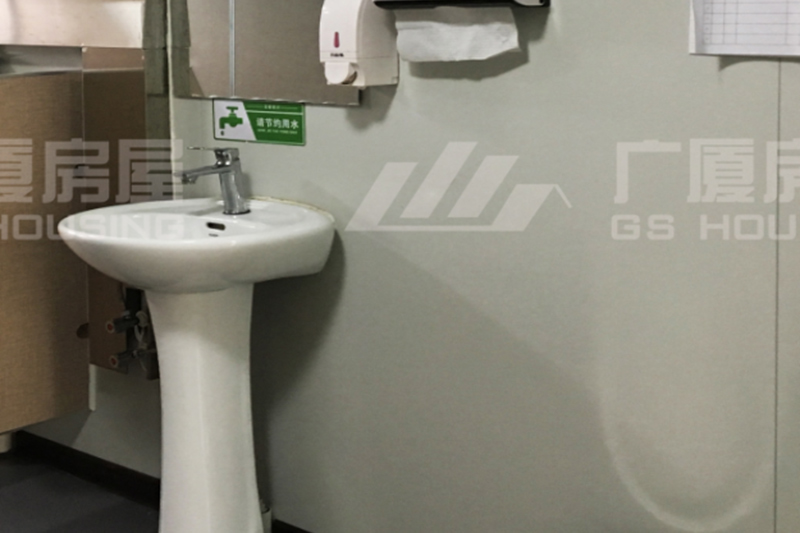

Normal basin


Marble basin

The house adopts the graphene-powder electrostatic spraying coloring process, which is not only environmentally friendly, anti-corrosion and moisture-proof, but also can keep the color fastness for 20 years. It can be used for many times and still be bright as new.

Shower-house-4

The flat packed container house selects high quality material, the wall adopts no cold bridge cotton plug type color steel composite plate, the components are connected without cold bridge, and the cold bridge will not appear due to the contraction of the core material when subjected to vibration and impact.

Shower-house-3

There’s the detailed install instruction and videos to help site person install the houses, as well as we can make online videos to solve the install problem, of course,the installation supervisors can be dispatched to the site if needed.

There’s more than 360 professional house install workers in GS housing, more than 80% are worked in GS Housing over 8 years. At present, they have installed more than 2000 projects smoothly.


  • Previous:
  • Next:

  • Shower house specifiction
    Specifiction L*W*H(mm) Outer size 6055*2990/2435*2896
    Inner size 5845*2780/2225*2590   customzied size could be provided
    Roof type Flat roof with four internal drain-pipes (Drain-pipe cross size:40*80mm)
    Storey ≤3
    Design date Designed service life 20 years
    Floor live load 2.0KN/㎡
    Roof live load 0.5KN/㎡
    Weather load 0.6KN/㎡
    Sersmic 8 degree
    Structure Column Specification:210*150mm,Galvanized cold roll steel, t=3.0mm Material: SGC440
    Roof main beam Specification:180mm,Galvanized cold roll steel, t=3.0mm Material: SGC440
    Floor main beam Specification:160mm,Galvanized cold roll steel, t=3.5mm Material: SGC440
    Roof sub beam Specification:C100*40*12*2.0*7PCS,Galvanized cold roll C steel, t=2.0mm Material:Q345B
    Floor sub beam Specification:120*50*2.0*9pcs,”TT”shape pressed steel, t=2.0mm Material:Q345B
    Paint Powder electrostatic spraying   lacquer≥80μm
    Roof Roof panel 0.5mm Zn-Al coated colorful steel sheet, white-gray
    Insulation material 100mm glass wool with single Al foil. density ≥14kg/m³, Class A Non-combustible
    Ceiling V-193 0.5mm pressed  Zn-Al coated colorful steel sheet, hidden nail, white-gray
    Floor Floor surface 2.0mm PVC board, dark gray
    Base 19mm cement fiber board, density≥1.3g/cm³
    Moistureproof layer Moisture-proof plastic film
    Bottom sealing plate 0.3mm Zn-Al coated board
    Wall Thickness 75mm thick colorful steel sandwich plate; Outer plate:0.5mm orange peel aluminum plated zinc colorful steel plate, ivory white, PE coating; Inner plate:0.5mm aluminum-zinc plated pure plate of color steel, white gray, PE coating; Adopt “S” type plug interface to eliminate the effect of cold and hot bridge
    Insulation material rock wool, density≥100kg/m³, Class A Non-combustible
    Door Specification(mm) W*H=840*2035mm
    Material Steel shutter
    Window Specification(mm) Window:WXH=800*500;
    Frame material Pastic steel, 80S, With anti-theft rod, Invisible screen window
    Glass 4mm+9A+4mm double glass
    Electrical Voltage 220V~250V / 100V~130V
    Wire Main wire:6㎡, AC wire:4.0㎡,socket wire:2.5㎡,light switch wire:1.5㎡
    Breaker Miniature circuit breaker
    Lighting Double circle waterproof lamps,18W
    Socket 2pcs 5 holes socket 10A, 1pcs 3 holes AC socket 16A,1pcs two-way tumbler switch 10A  (EU /US ..standard)
    Water Supply&Drainage System Water supply system DN32,PP-R,Water supply pipe and fittings
    Water drainage system De110/De50,UPVC Water drainage pipe and fittings
    Steel Frame Frame material Galvanized square pipe 口40*40*2
    Base 19mm cement fiber board, density≥1.3g/cm³
    Floor 2.0mm thick non-slip PVC floor, dark grey
    Sanitary ware Sanitary appliance 5 sets showers, 2 column basins and faucets
    Partition 950*2100*50 thick composite plate partition, aluminum edge cladding
    Fittings 5 pcs acrylic shower bottom basins, 5 sets shower curtains, 5pcs sheltering corner baskets, 2pcs bathroom glasses, Stainless steel gutter, stainless steel gutter grate, 1pcs standy floor drain
    Others Top and column decorate part 0.6mm Zn-Al coated color steel sheet, white-gray
    Skirting 0.8mm Zn-Al coated color steel skirting, white-grey
    Door closers 1pcs Door Closer, Aluminium (optional)
    Exhaust fan 1 wall type exhaust fan, stainless steel rainproof cap
    Adopt standard construction, the equipment and fittings are accord with national standard. as well as, customized size and related facilities can be provided according to your needs.
