Movable Male Toilet & Bath Container House
The house can be moved as a whole, or packed and moved after dis-assembly, then assembled again on site and put into use after being connected with water and electricity.
The sanitary ware in the standard male bath house includes 3pcs squatting toilets , 3 set urinals, 2 set showers and curtains, 1pcs mop sink , 1pcs column basin, the sanitary ware we used are the Chinese high quality brand products, quality can be ensured.

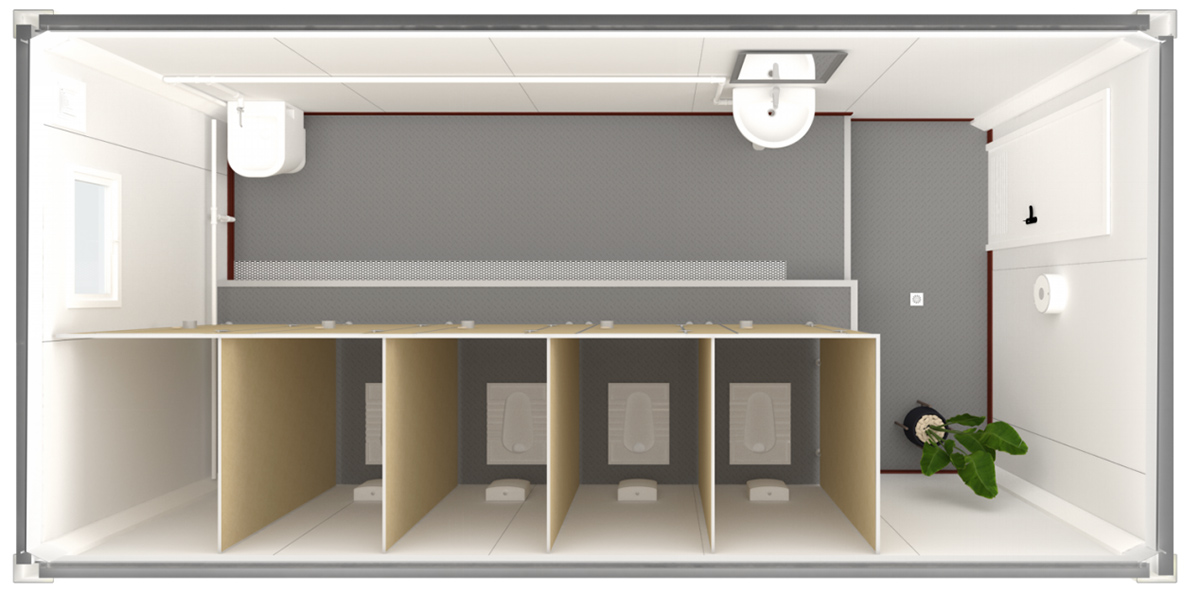

The portable ablution room types
Optional internal decoration
Ceiling
V-170 ceiling (hidden nail)
V-290 ceiling (without nail)
Surface of the wall panel
Wall ripple panel
Orange peel panel
Insulation layer of the wall panel
Rock wool
Glass cotton
Basin
Normal basin
Marble basin
The sanitary wares package
The install of toilet house is more complex than the standard houses, but we have the detailed install instruction and videos, and the online video could be connected to help customers solve the install problem, of course,the installation supervisors can be dispatched to the site if needed.
There’s more than 360 professional house install workers in GS housing, more than 80% are worked in GS Housing over 8 years. At present, they have installed more than 2000 projects smoothly.
Container house features
Production bases
GS Housing's five production bases have a comprehensive annual production capacity of more than 170,000 houses,the strong comprehensive production and operation capabilities provide a solid backing for houses production. As well as the factories designed with garden-type, environment is very beautiful,They are large-scale new and modern modular building product production bases in China. A special modular housing research institute has been established to ensure that it provides customers with a safe, environmentally,friendly,intelligent and comfortable combined building space.
Smart factory-production base in Tianjin
Covers : 130,000㎡
Annual production capacity: 50,000 set houses
6S model factory- production base in Guangdong
Covers: 90,000 ㎡
Annual production capacity: 50,000 set houses
Efficient factory-production base in Liaoning
Covers : 60,000㎡
Annual production capacity: 20,000 set houses.
Ecological factory-production base in Sichuan
Covers: 60,000㎡
Annual production capacity: 20,000 set houses.
Garden-type factory- production base in Jiangsu
Covers: 80,000㎡
Annual production capacity : 30,000 set houses
GS Housing has the advanced supporting modular housing production lines, including fully automatic composite board production lines, Graphene electrostatic spray coating lines, independent profiling workshops, door and window workshops, machining workshops, assembly workshops, fully automatic CNC flame cutting machines, and laser cutting machines, portal submerged arc welding machines, carbon dioxide shielded welding, high-power punching presses, cold bending forming machines,milling machines, CNC bending and shearing machines etc. High quality operators are equipped in each machine, so the houses can achieved the full CNC production,that ensure the houses produced timely ,efficiently and accurately.
| Male bath house specifiction | ||
| Specifiction | L*W*H（mm） | Outer size 6055*2990/2435*2896 Inner size 5845*2780/2225*2590 customzied size could be provided |
| Roof type | Flat roof with four internal drain-pipes (Drain-pipe cross size:40*80mm) | |
| Storey | ≤3 | |
| Design date | Designed service life | 20 years |
| Floor live load | 2.0KN/㎡ | |
| Roof live load | 0.5KN/㎡ | |
| Weather load | 0.6KN/㎡ | |
| Sersmic | 8 degree | |
| Structure | Column | Specification:210*150mm,Galvanized cold roll steel, t=3.0mm Material: SGC440 |
| Roof main beam | Specification:180mm,Galvanized cold roll steel, t=3.0mm Material: SGC440 | |
| Floor main beam | Specification:160mm,Galvanized cold roll steel, t=3.5mm Material: SGC440 | |
| Roof sub beam | Specification:C100*40*12*2.0*7PCS,Galvanized cold roll C steel, t=2.0mm Material:Q345B | |
| Floor sub beam | Specification:120*50*2.0*9pcs,”TT”shape pressed steel, t=2.0mm Material:Q345B | |
| Paint | Powder electrostatic spraying lacquer≥80μm | |
| Roof | Roof panel | 0.5mm Zn-Al coated colorful steel sheet, white-gray |
| Insulation material | 100mm glass wool with single Al foil. density ≥14kg/m³, Class A Non-combustible | |
| Ceiling | V-193 0.5mm pressed Zn-Al coated colorful steel sheet, hidden nail, white-gray | |
| Floor | Floor surface | 2.0mm PVC board, dark gray |
| Base | 19mm cement fiber board, density≥1.3g/cm³ | |
| Moistureproof layer | Moisture-proof plastic film | |
| Bottom sealing plate | 0.3mm Zn-Al coated board | |
| Wall | Thickness | 75mm thick colorful steel sandwich plate; Outer plate:0.5mm orange peel aluminum plated zinc colorful steel plate, ivory white, PE coating; Inner plate:0.5mm aluminum-zinc plated pure plate of color steel, white gray, PE coating; Adopt “S” type plug interface to eliminate the effect of cold and hot bridge |
| Insulation material | rock wool, density≥100kg/m³, Class A Non-combustible | |
| Door | Specification（mm） | W*H=840*2035mm |
| Material | Steel shutter | |
| Window | Specification（mm） | back window:W*H=800*500； |
| Frame material | Pastic steel, 80S, With anti-theft rod, Invisible screen window | |
| Glass | 4mm+9A+4mm double glass | |
| Electrical | Voltage | 220V~250V / 100V~130V |
| Wire | Main wire:6㎡, AC wire:4.0㎡,socket wire:2.5㎡,light switch wire:1.5㎡ | |
| Breaker | Miniature circuit breaker | |
| Lighting | Double circle waterproof lamps,18W | |
| Socket | 2pcs 5 holes socket 10A, 2pcs 3 holes AC socket 16A,1pcs two-way tumbler switch 10A (EU /US ..standard) | |
| Water Supply&Drainage System | Water supply system | DN32,PP-R,Water supply pipe and fittings |
| Water drainage system | De110/De50,UPVC Water drainage pipe and fittings | |
| Steel Frame | Frame material | Galvanized square pipe 口40*40*2 |
| Base | 19mm cement fiber board, density≥1.3g/cm³ | |
| Floor | 2.0mm thick non-slip PVC floor, dark grey | |
| Sanitary ware | Sanitary appliance | 3set squatting toilets, 3 sets urinals , 2 set showers,1pcs mop sink , 2set column basins . |
| Partition | 1200*900*1800 imitation wood grain partition, aluminum alloy clamping groove, stainless steel bounding 950*2100*50 thick composite plate partition, aluminum bounding |
|
| Fittings | 2 pcs acrylic shower bottom basins, 2 sets shower curtains, 1 pcs tissue box, 2 pcs bathroom mirrors,Stainless steel gutter, stainless steel gutter grate, 1pcs standy floor drain | |
| Others | Top and column decorate part | 0.6mm Zn-Al coated color steel sheet, white-gray |
| Skirting | 0.8mm Zn-Al coated color steel skirting, white-grey | |
| Door closers | 1pcs Door Closer, Aluminium (optional) | |
| Exhaust fan | 1 wall type exhaust fan, stainless steel rainproof cap | |
| Adopt standard construction, the equipment and fittings are accord with national standard. as well as, customized size and related facilities can be provided according to your needs. | ||
