Prefabricated Modular Site Office Solution
Site Office Overview
Site offices are core management spaces for building construction, infrastructure, and energy projects.
This site office porta cabin has a standard design that allows for quick setup, flexible arrangements, and reuse, making it ideal for different temporary or phased project site office requirements.
The portable cabin can be used as a standalone site office or combined into a multi-functional off-site camp housing or multi-story site accommodation to meet different project sizes and management needs.
Standard Configuration of Site Office Porta Cabin (Customization Available)
| Size | 6055*2435/3025*2896mm,customable |
| Storey | ≤3 |
| Parameter | liftspan:20 yearsfloor live load:2.0KN/㎡
roof live load:0.5KN/㎡ weather load:0.6KN/㎡ sersmic:8 degree |
| Structure | main frame:SGH440 Galvanized steel, t=3.0mm / 3.5mmsub beam:Q345B Galvanized steel, t=2.0mm
paint:powder electrostatic spraying lacquer≥100μm |
| Roof | roof panel:roof panelInsulation:glass wool,density ≥14kg/m³
ceiling:0.5mm Zn-Al coated steel |
| Floor | surface:2.0mm PVC boardcement board:19mm cement fiber board, density≥1.3g/cm³
moisture-proof:moisture-proof plastic film base external plate:0.3mm Zn-Al coated board |
| Wall | 50-100 mm rock wool board;double layer board:0.5mm Zn-Al coated steel |
Optional Configurations: Air conditioning, furniture, bathroom, stairs, solar power system, etc.
Why choose a modular site office camp?
Rapid Deployment, Shortening Project Start-up Cycles
Modular site offices utilize a factory prefabrication + on-site assembly model:
Reducing logistics costs with small transport volume
Short construction period: the site office can be installed immediately upon arrival
Quick deployment to catch up on project schedules
This modular site camp is particularly beneficial for projects that have strict deadlines and require prompt on-site arrival.
Sturdy structure, adaptable to complex construction environments.
Targeting the characteristics of construction site environments, the temporary site office features:
High-strength SGH340 galvanized steel structural frame
Above 1-hour fireproof and insulated wall
Glass wool insulated roof system
Windproof, rainproof, and corrosion-resistant design etc.
Modular design, flexible expansion
The site office can be flexibly configured according to construction site needs:
The prefabricated house allows for both horizontal splicing and vertical stacking, and it can be expanded to accommodate two- or three-story construction site office buildings.
Conference room

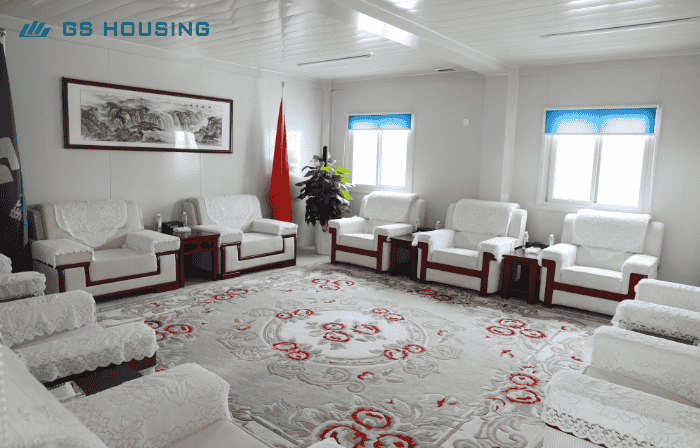

Reception room
Engineer's office
Tea room
Suitable for long-term use in complex working conditions such as high temperatures, cold temperatures, coastal areas, and deserts.
Comfortable working environment, improved on-site management efficiency
Compared to traditional temporary site offices, modular site offices offer a superior user experience
Creating a stable, comfortable, and standardized working environment for project managers.

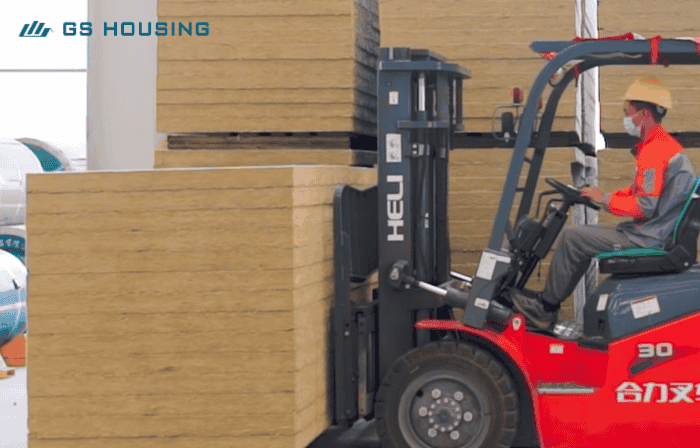

Excellent thermal and sound insulation performance

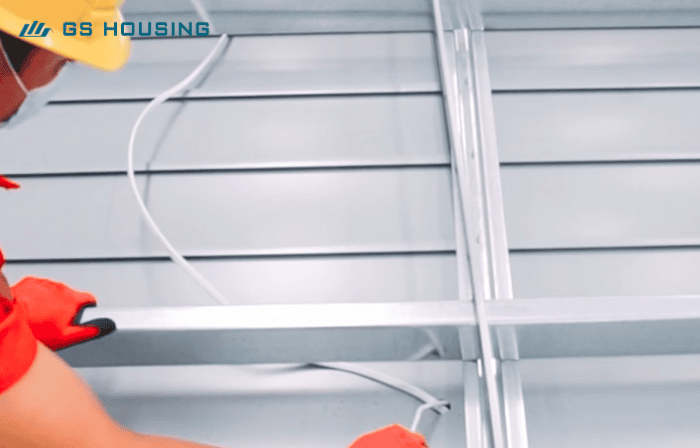

Pre-installed electrical systems and lighting

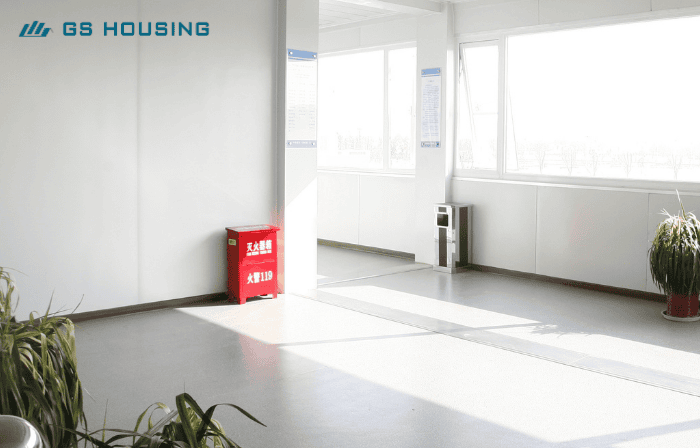

Optional air conditioning, network, and fire protection systems
Site Office Typical Application Scenarios
Prefabricated portable site offices are widely used in:
Core Value for Construction Contractors and Owners
♦ Reduced Temporary Construction Costs
♦ Improved On-Site Management Efficiency
♦ Reusable and Cost-Effective
♦ Disassembled, Relocated, and Reusable After Project Completion
Suitable for Temporary and Semi-Permanent Site Office Needs
Ideal Choice for EPC General Contractors, Engineering Contractors, and Project Owners
One-Stop Site Office Solution
We can customize configurations to meet project needs, whether it's a single construction site office or a large modular construction site camp.
Get Site Office Solutions and Quotes
Looking for a stable and reliable supplier of prefabricated site camps for construction?
Contact us to obtain:
Project Floor Plan / Technical Specifications / Customized Project Quote
The goal is to enhance the efficiency, standardization, and controllability of construction site offices.
