Chalet Style Prefabricated Corridor House

Short Description:

The width of corridor house are usually 1.8m, 2.4m, 3M wide, which are used for the internal walkway of office, dormitory… It is made by reducing the structural size of the standard flat packed container house, and has the advantages of high strength, strong trafficability, beauty and so on. The walkway house is equipped with emergency lighting, emergency exit indicator and other standard facilities to meet the requirements of fire protection specifications in various regions.


Product Detail

Specification

Video

Product Tags

The width of corridor house are usually 1.8m, 2.4m, 3M wide, which are used for the internal walkway of office, dormitory... It is made by reducing the structural size of the standard flat packed container house, and has the advantages of high strength, strong trafficability, beauty and so on. The walkway house is equipped with emergency lighting, emergency exit indicator and other standard facilities to meet the requirements of fire protection specifications in various regions.

The installation of walkway house is very convenience, step is same with the standard houses, design service life is about 20 years and the house can be stacked with three layers.

走道箱

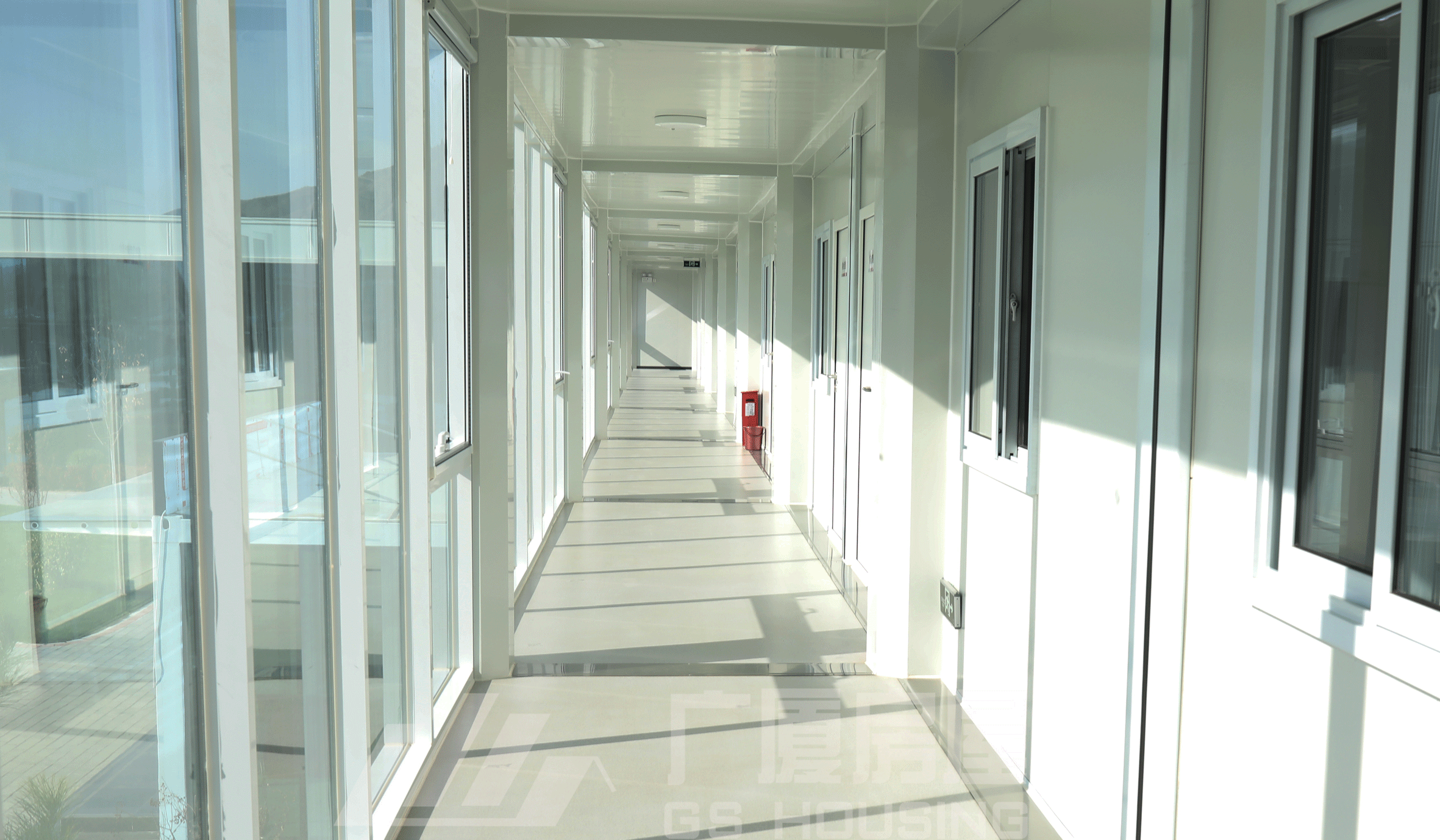

Standard external corridor house

走道箱3

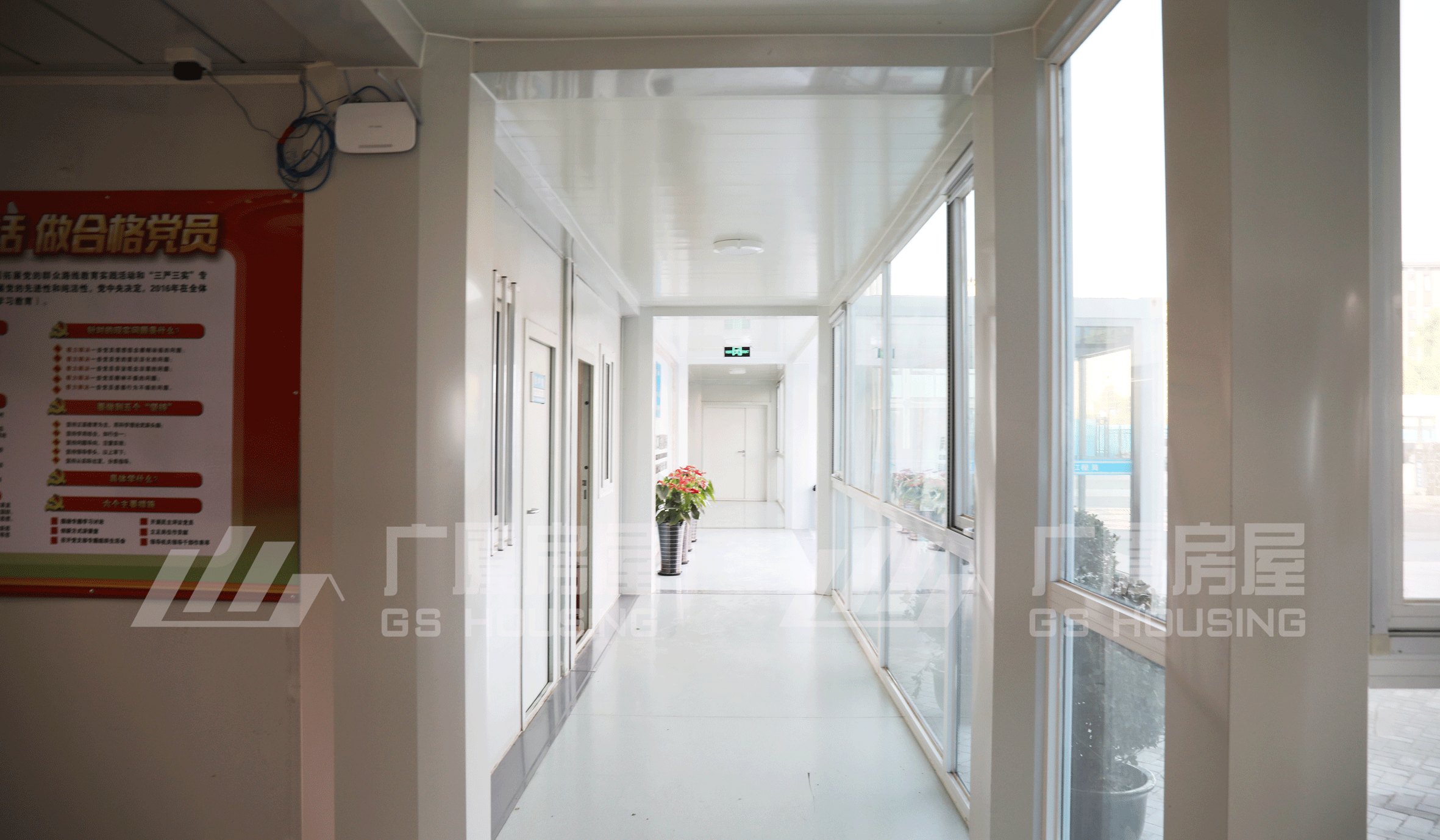

Standard internal corridor house

走道箱5

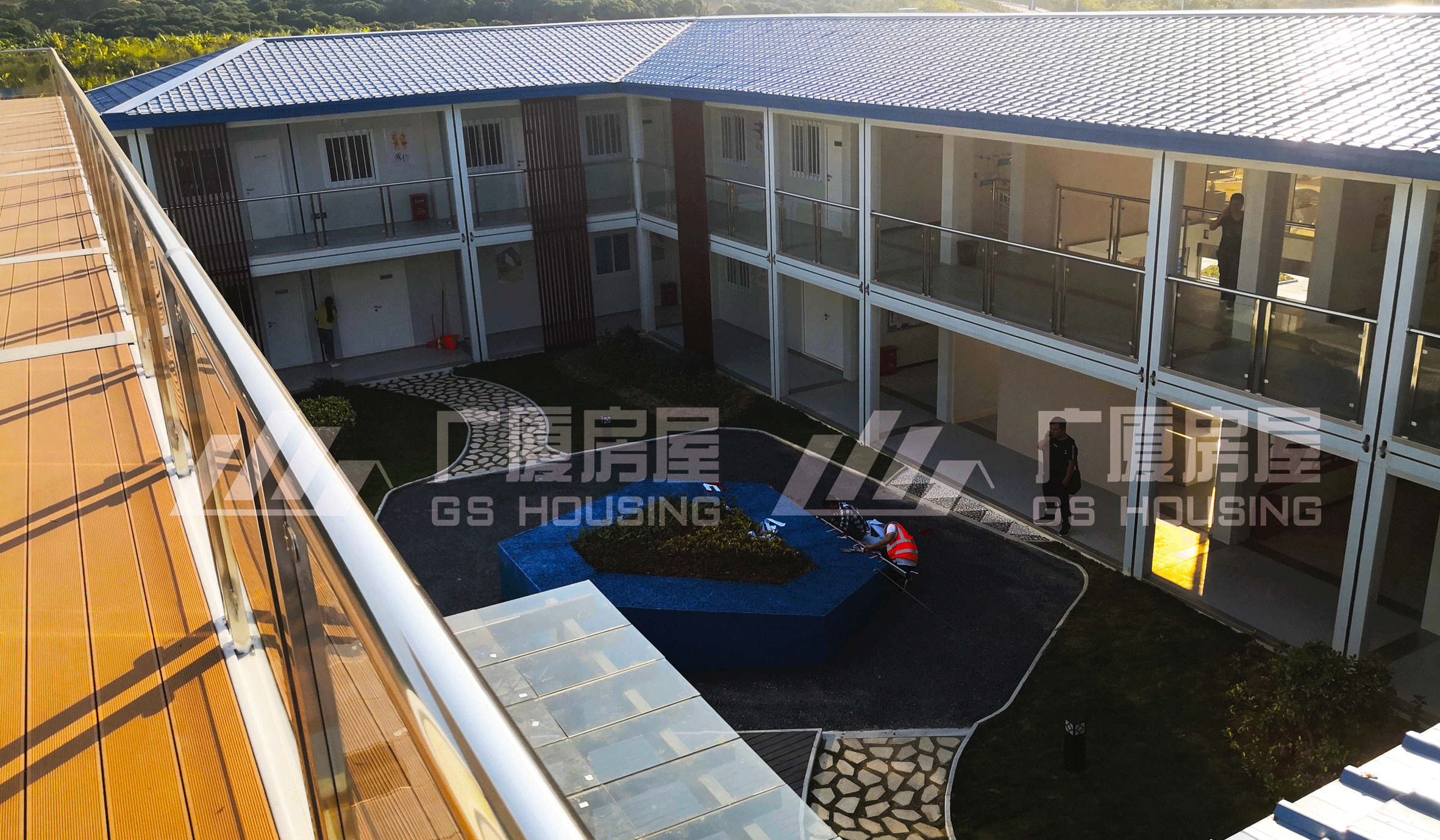

2nd floor external corridor house with railings

走道箱2

External corridor house with wooden floor

走道箱4

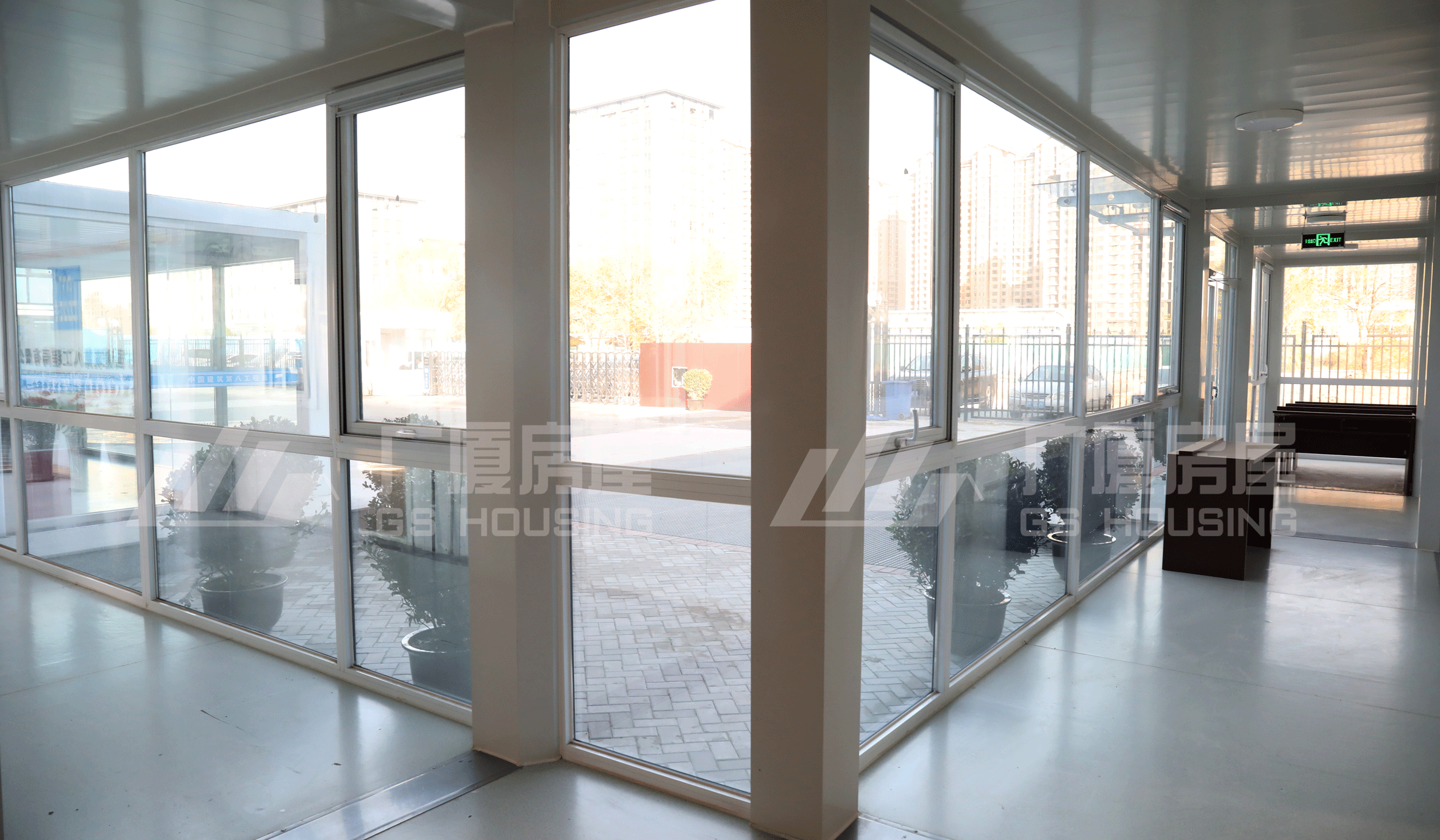

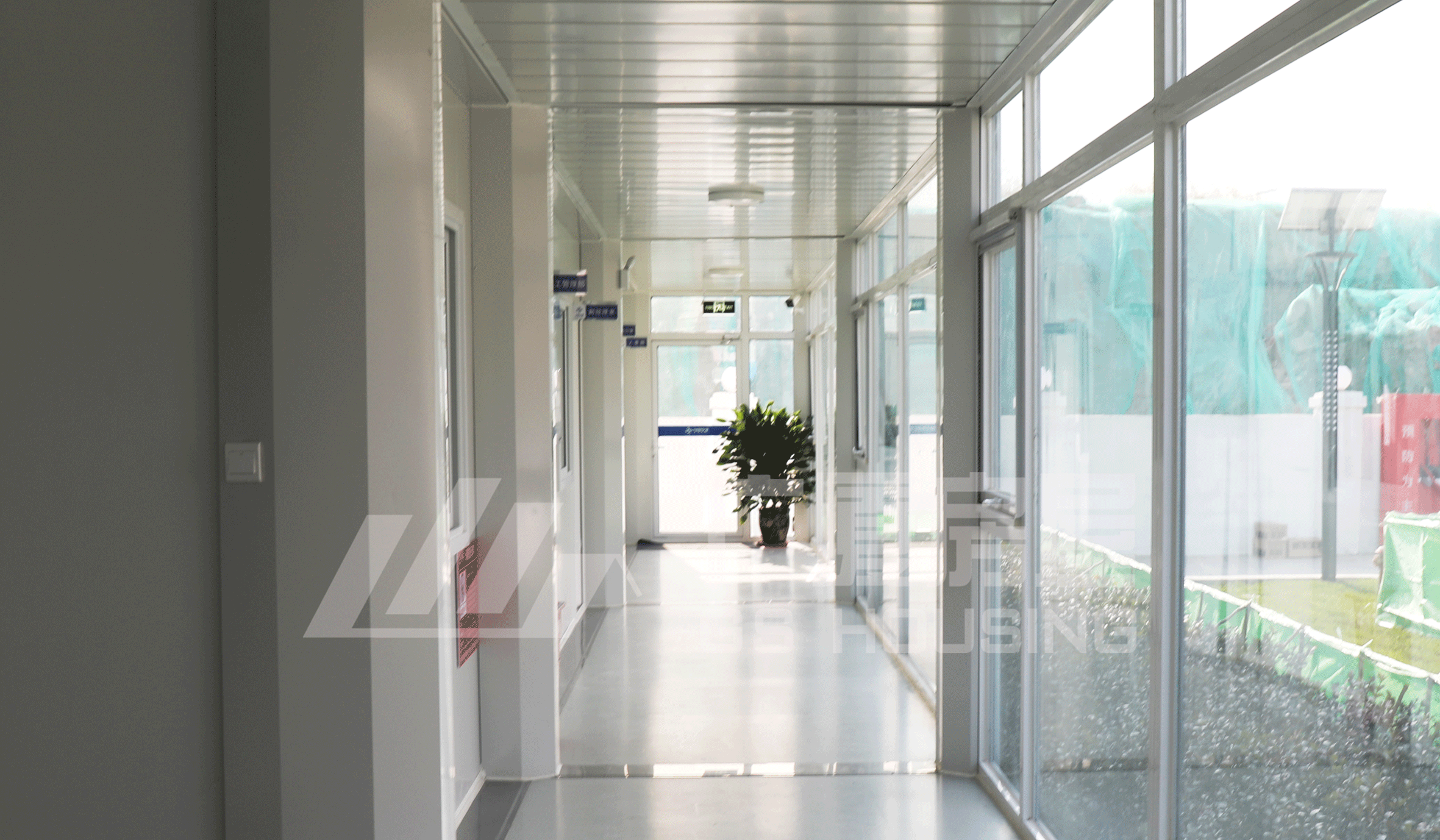

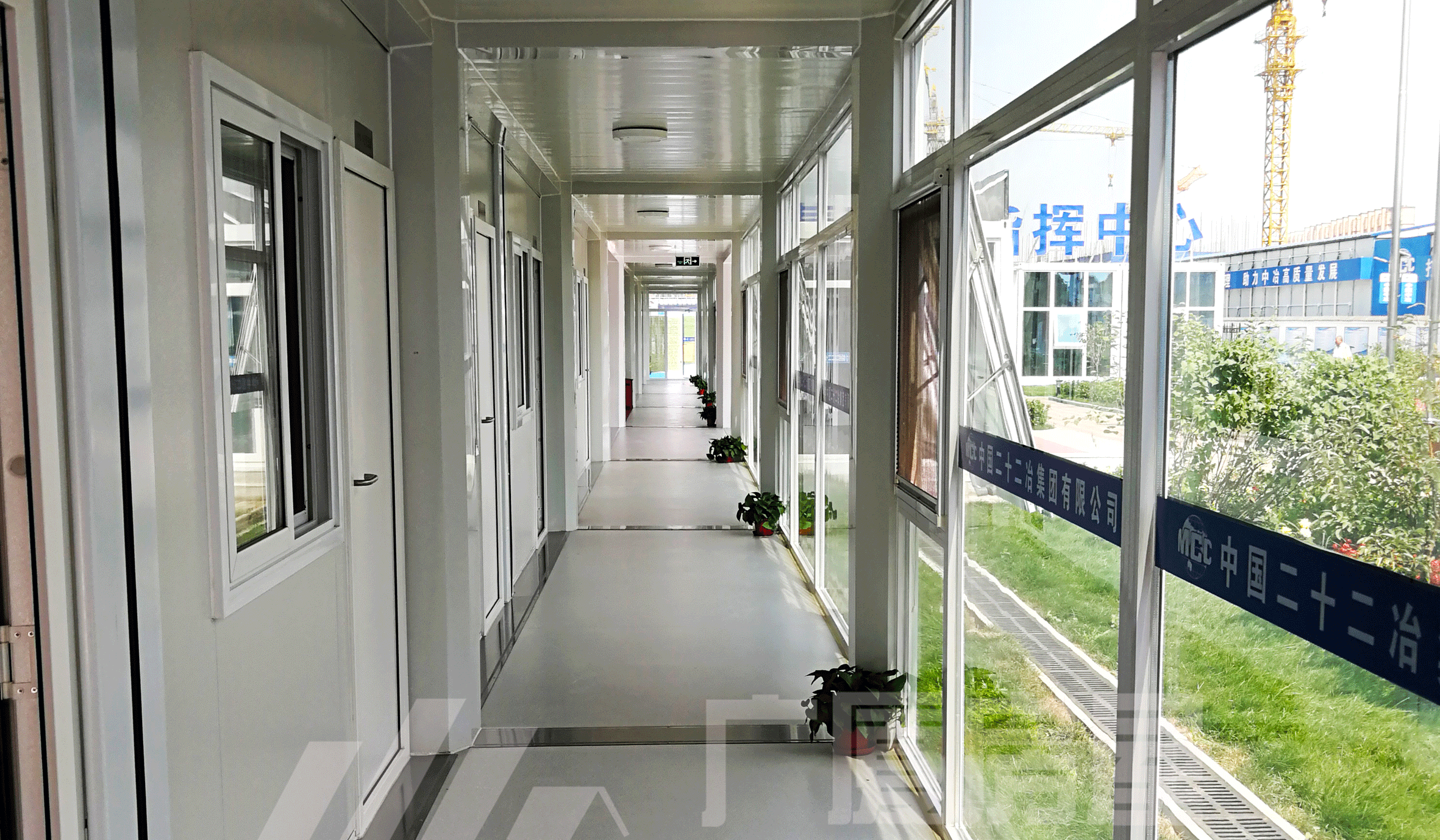

Internal corridor house with glass wall

走道箱6

Designed external corridor house with railings

The wall panel could be designed with the broken bridge aluminum window & door, to enhance indoor brightness.

cor-5

The glass curtain specification of GS Housing

1.The frame material is 60 series broken bridge aluminum, with a section size of 60mmx50mm, national standard and a thickness of≥1.4mm; The width of a single window frame shall not exceed 3M. During splicing, reinforced splicing pipes shall be added between frames. The overlap between window frame and house structure frame shall be 15mm; The color inside and outside the frame is white fluorocarbon coating.

2.The glass adopts double-layer insulating glass, which adopts the combination of 5 + 12a + 5 (the air layer 12a can be adjusted according to the manufacturing process, ≮ 12). Only the outer glass sheet is coated, and the colors are Ford blue and sapphire blue.

3.The glass curtain house of GS housing has achieved the effects of effectively controlling light, adjusting heat, saving energy, improving building environment and increasing beauty!

cor-2

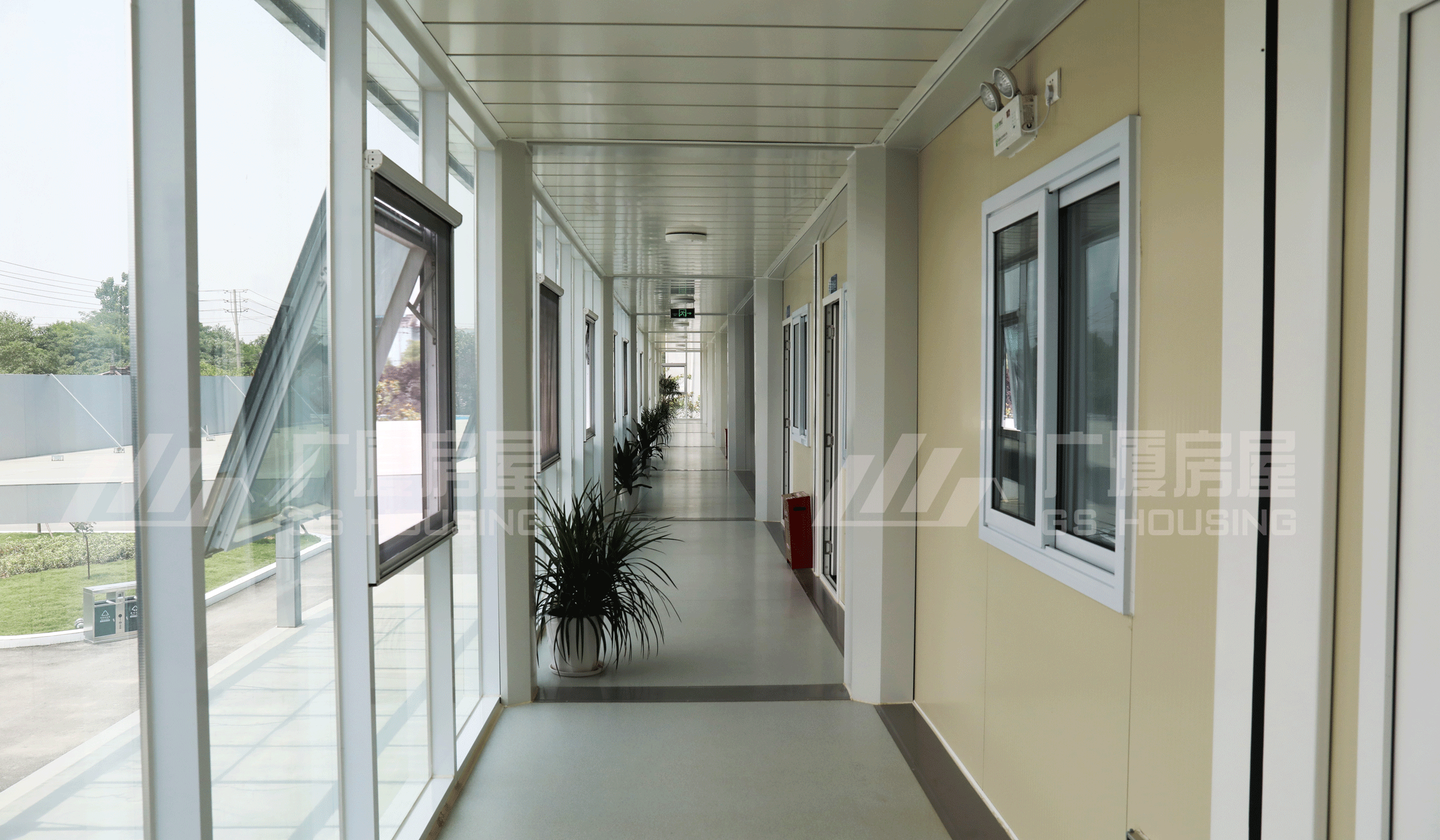

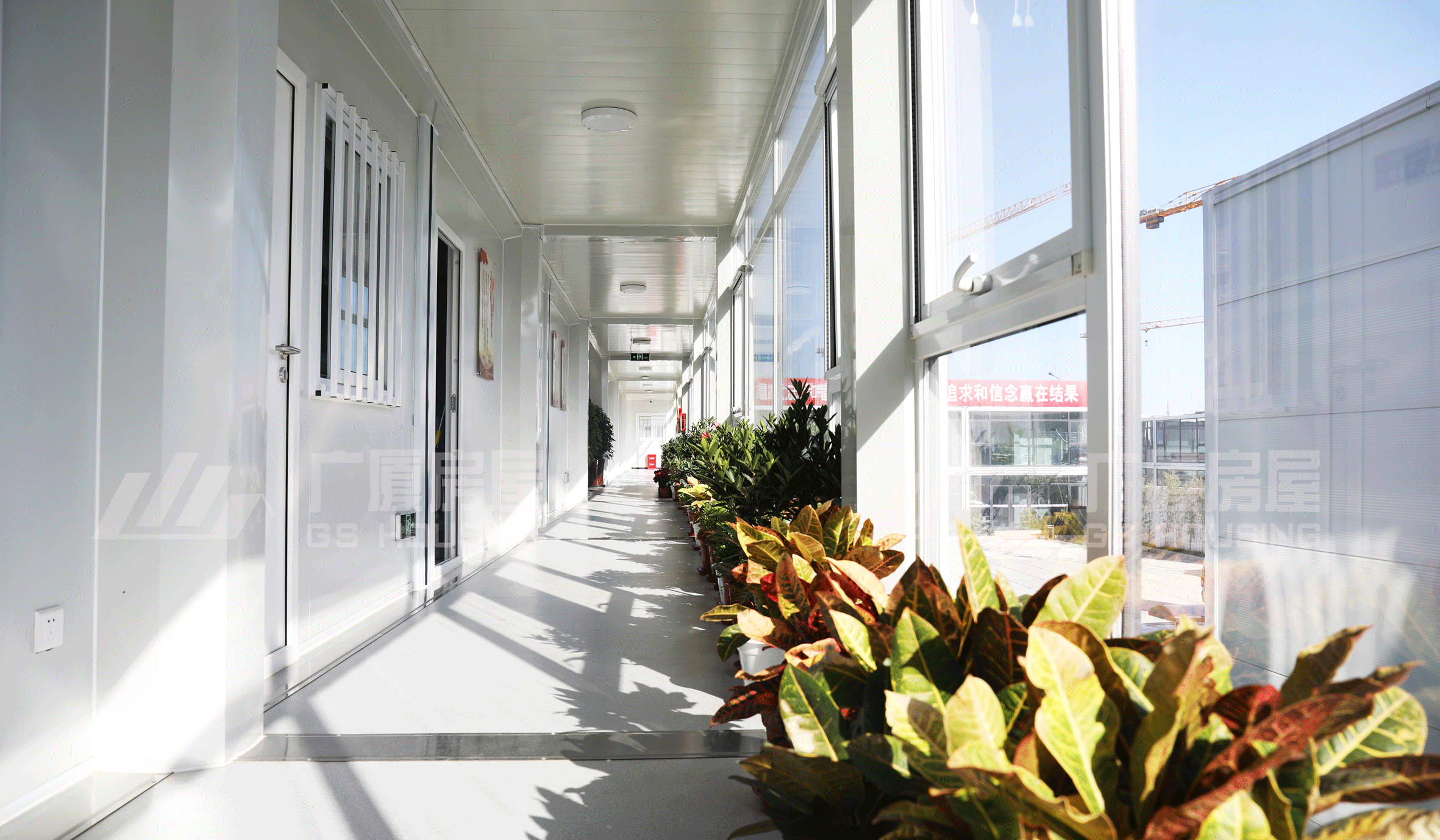

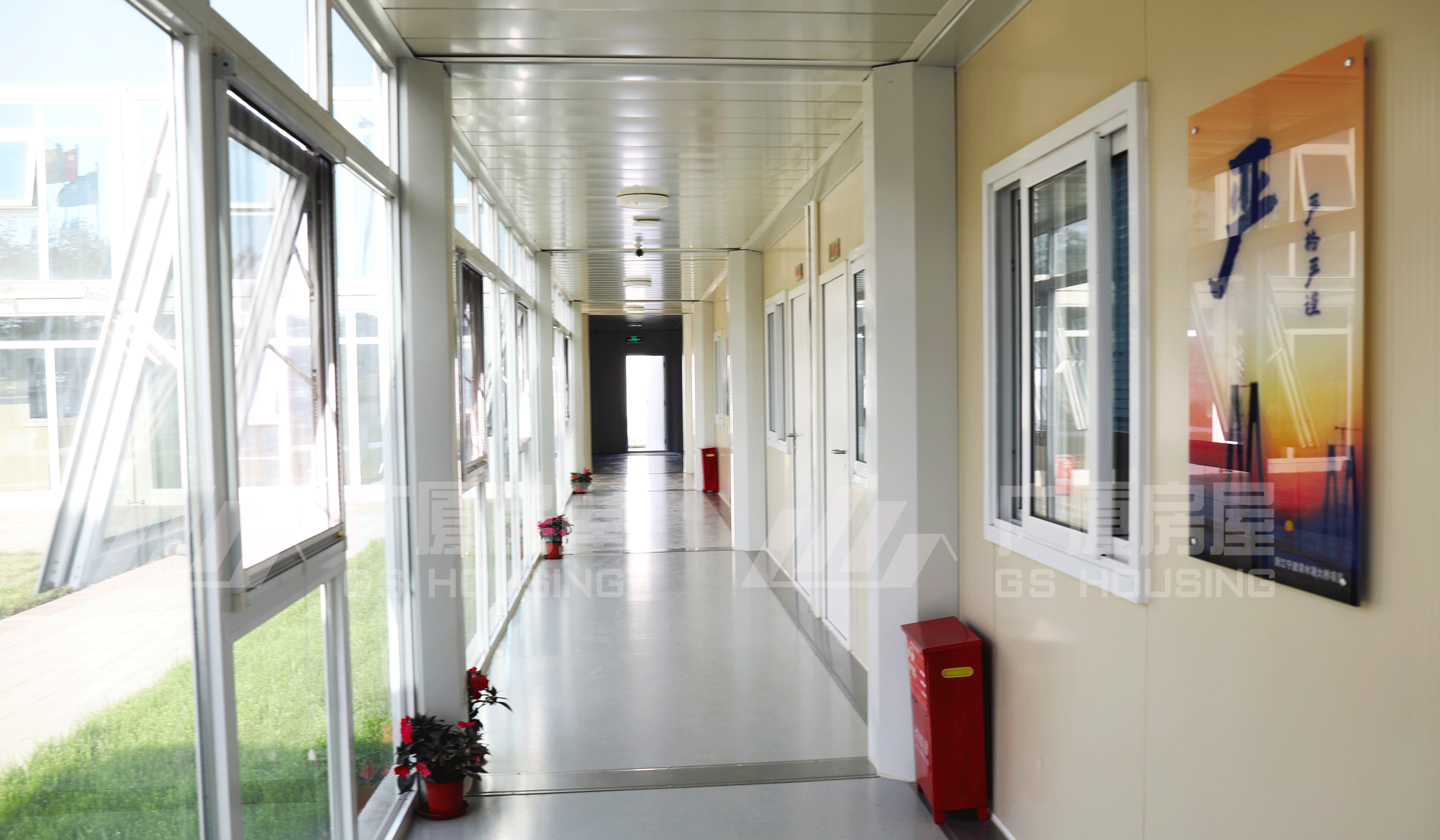

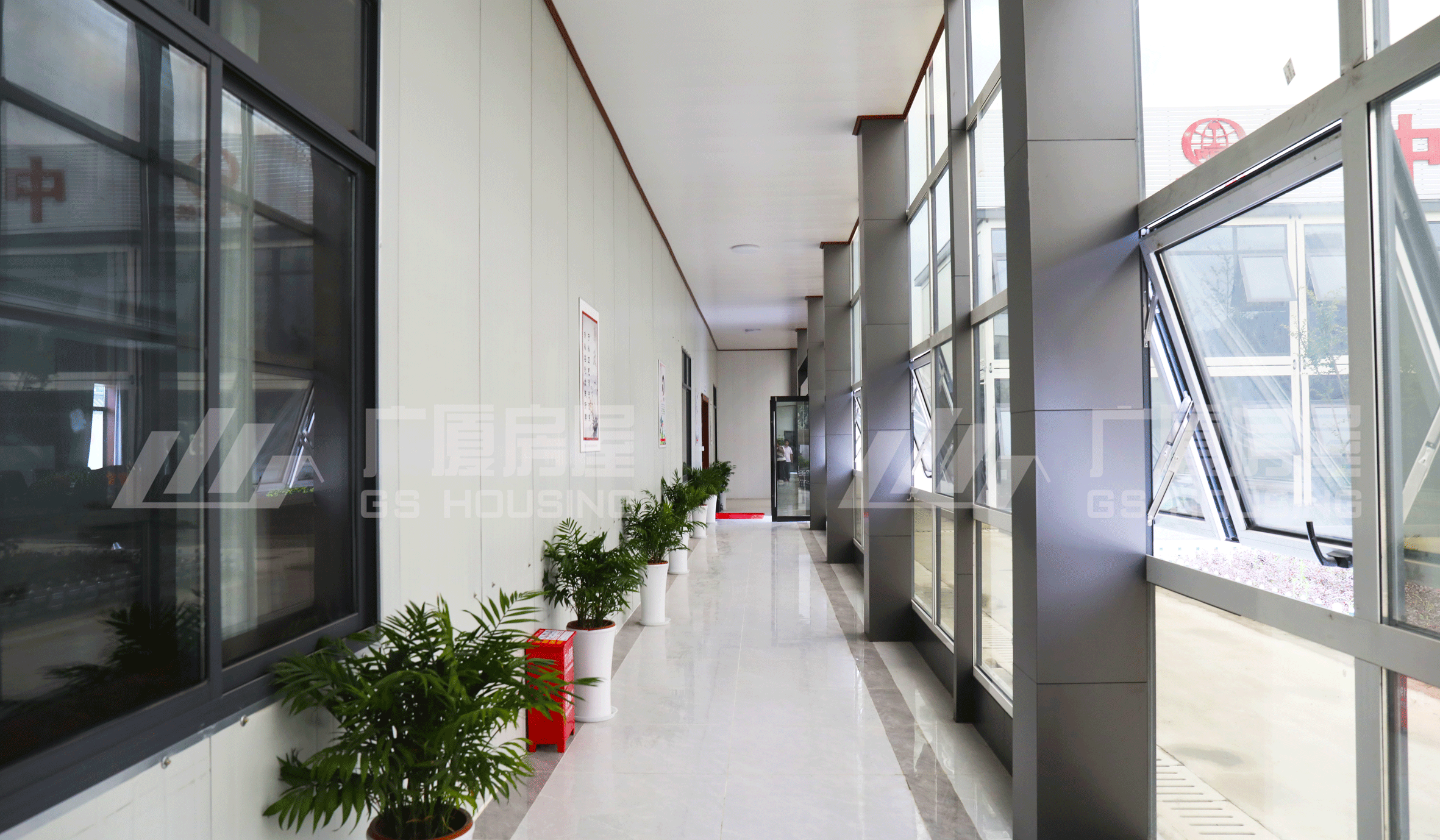

The corridor houses with broken bridge aluminum window & door

Application

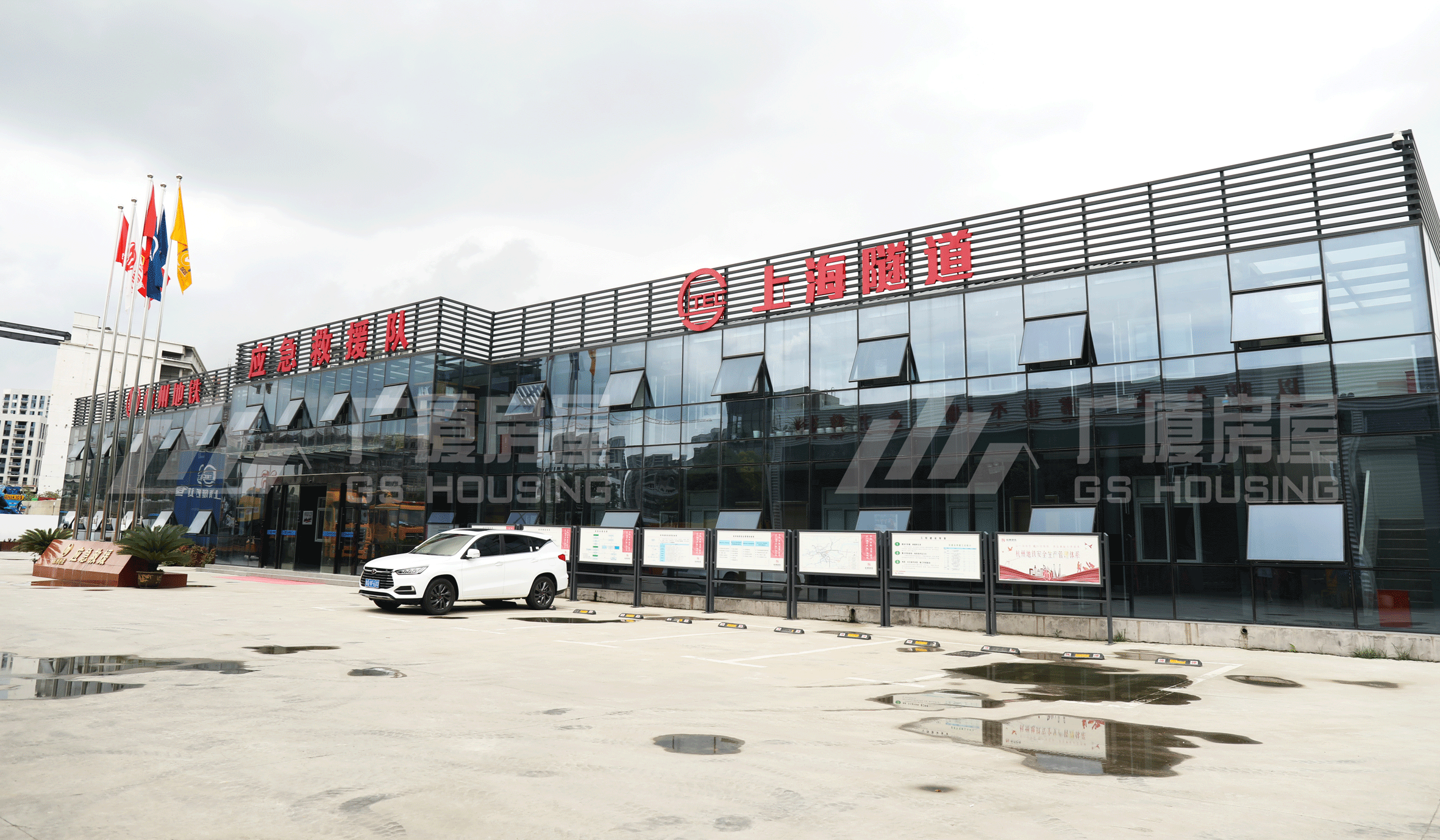

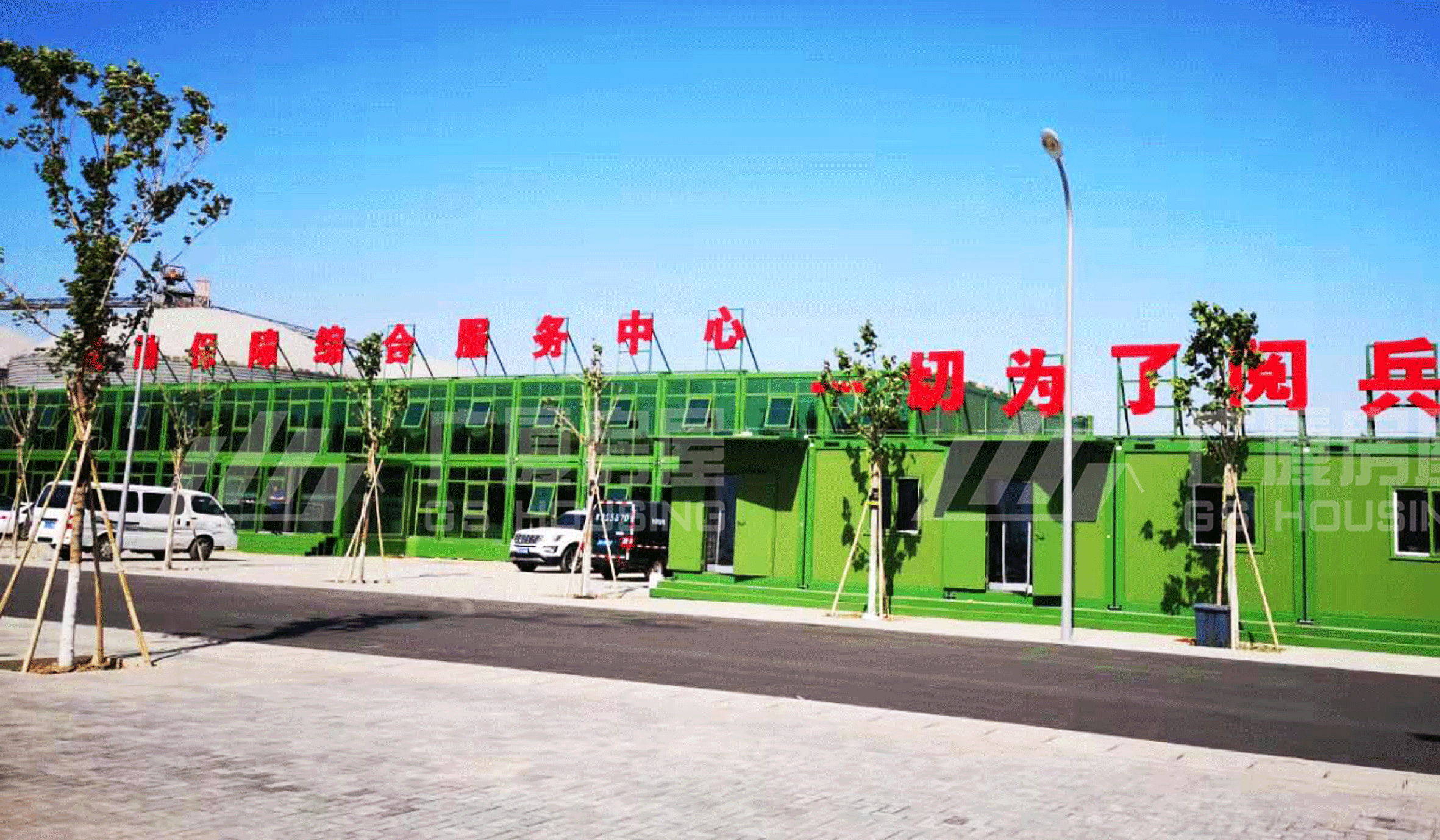

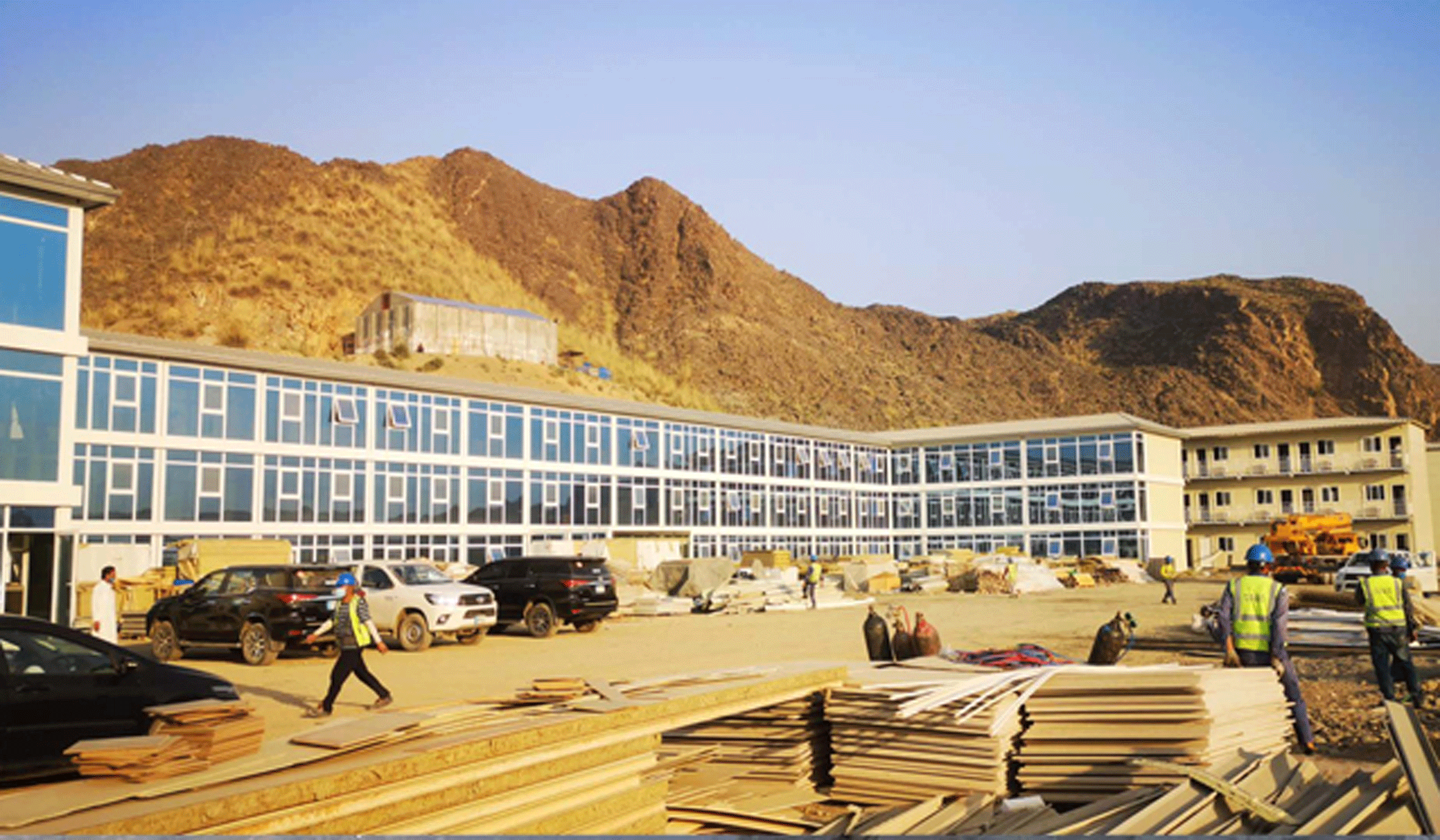

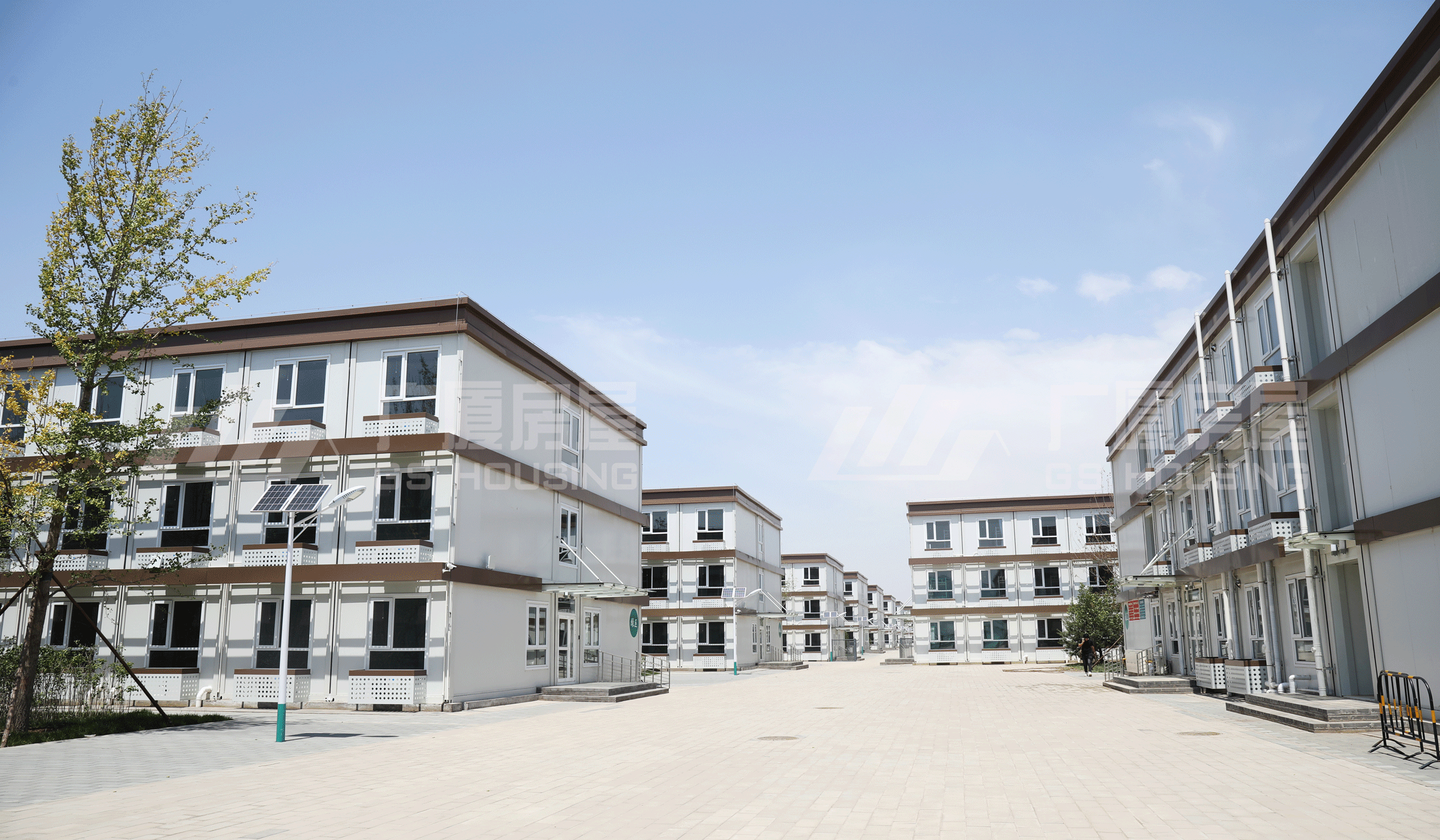

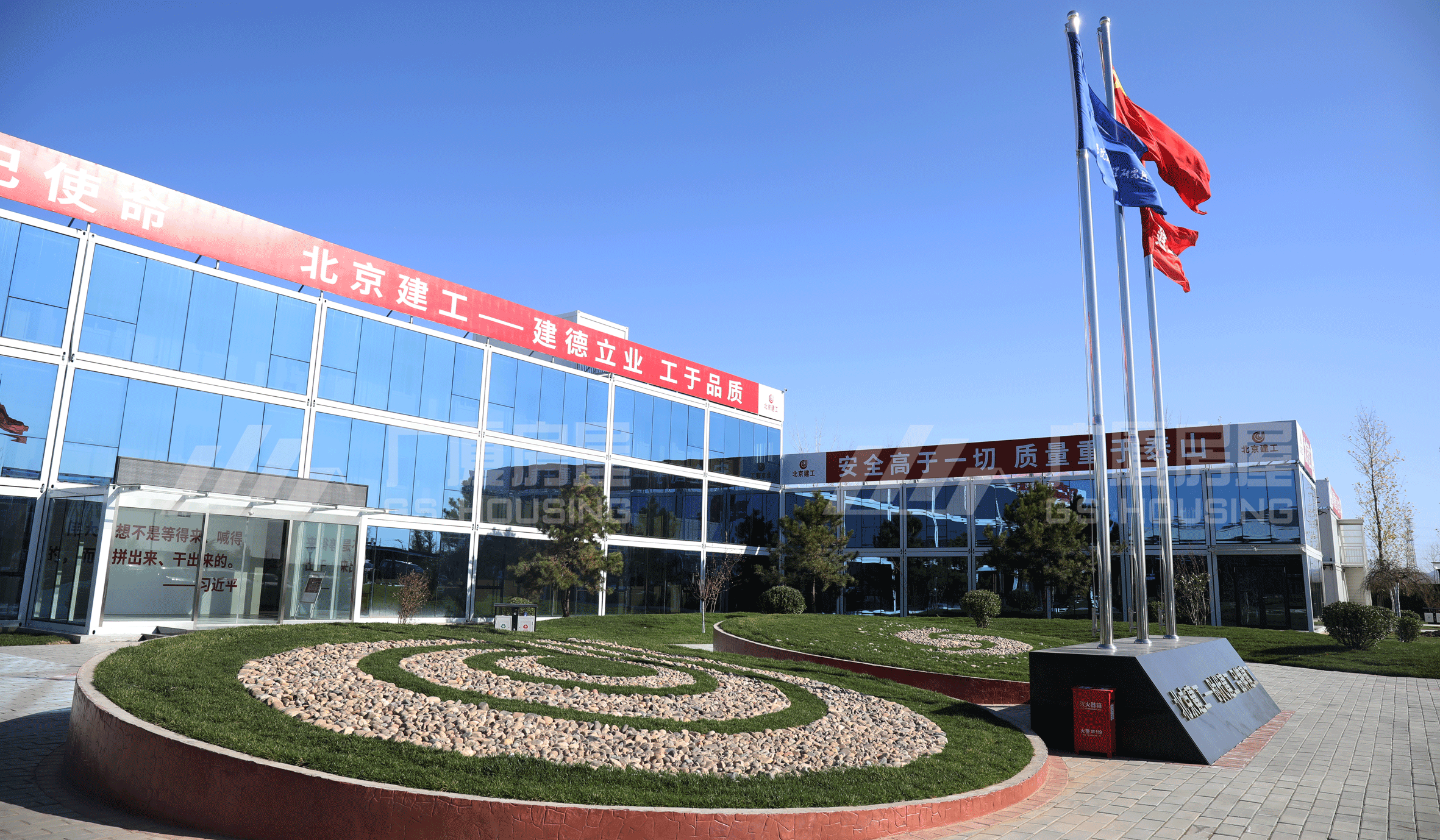

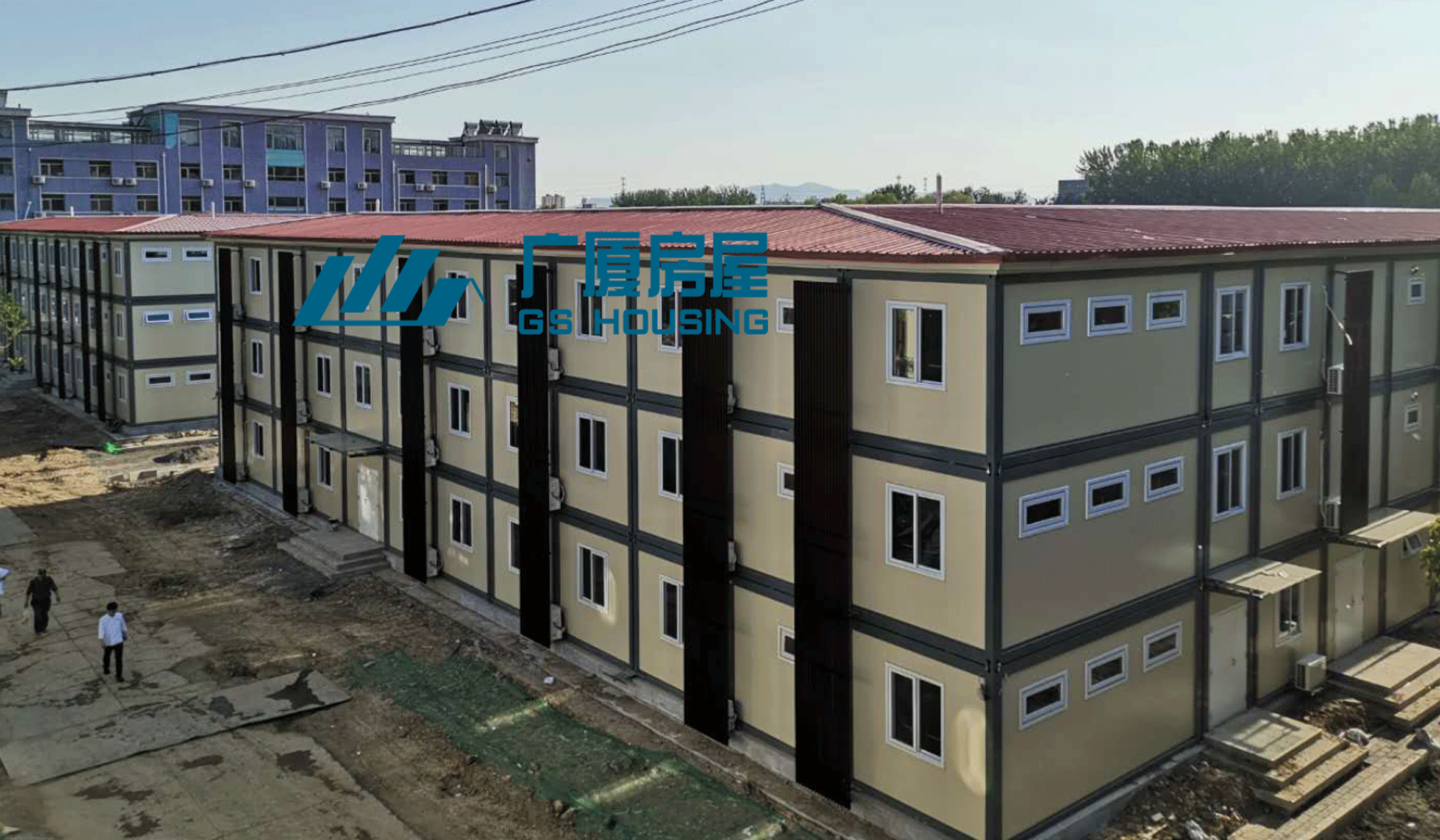

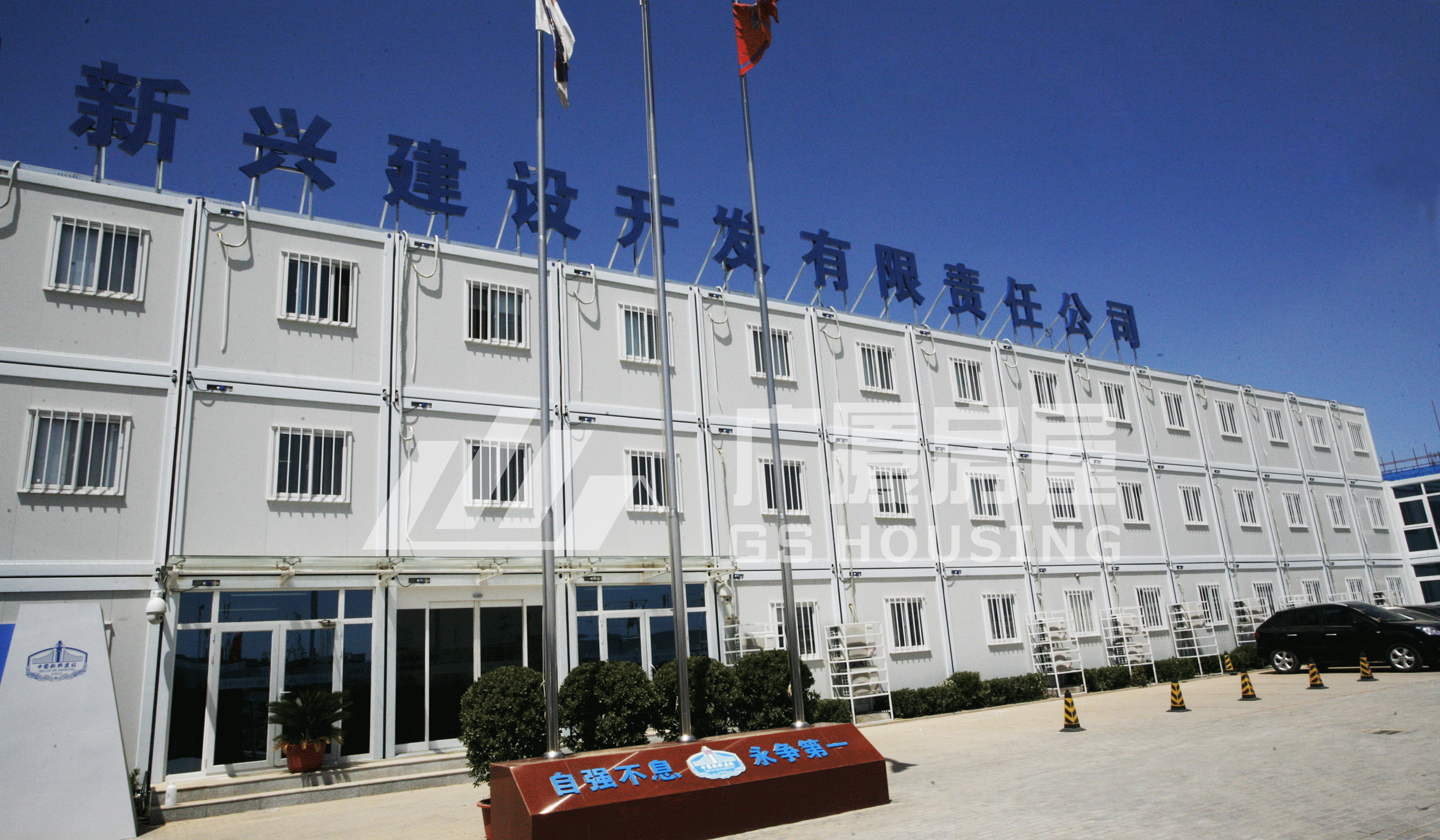

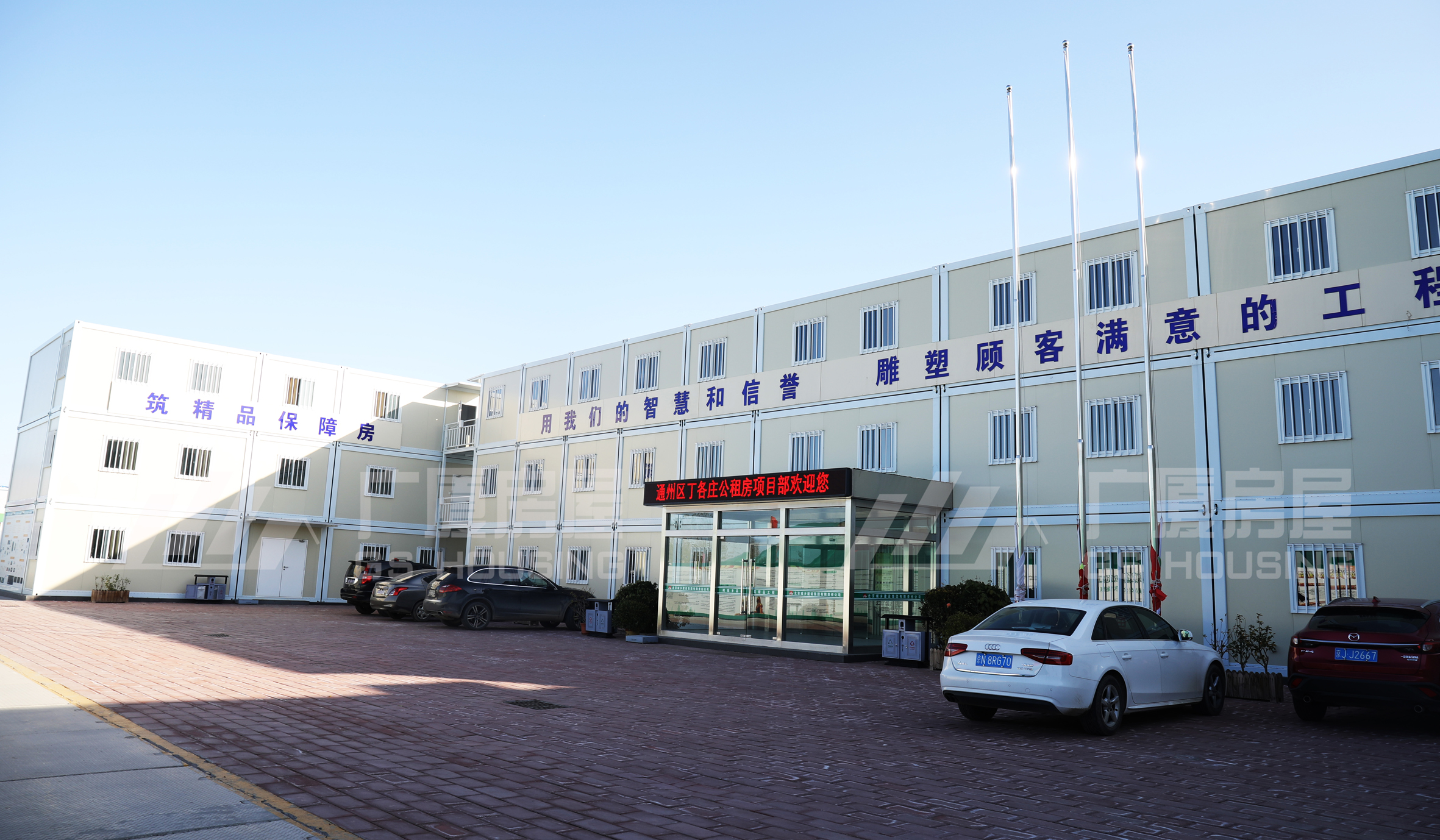

Overall effect: the container houses with broken bridge aluminum window & door were highly used in Universal Studios projects, Beijing Daxing international airport, Indonesia mining project, Colombo port project, Aleman apartments project in Egypt....

FAQ

You are a factory or trader?

We have 5 wholly-owned factories near Tianjin,Ningbo, Zhangjiagang, Guangzhou ports. the product quality, after-service, cost... could be guaranteed.

Do you have a minimum order quantity?

No, one house can be shipped too.

Do you accept the customized color / size?

Yes, the houses finishes and size can be designed according to your requirements, there’s professional designers help you to design the satisfied houses.

The service life of the house? And the warranty policy?

The houses service life is designed with 20 years, and warranty time is 1 years, of cause, if there’s any supporting need be changed after the out of warranty, we’ll help to purchase with the cost price. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.

What is the average lead time?

For the samples,we have the houses in stock, can be sent within 2 days.
For mass production, the lead time is 10-20 days after signed the contract / received the deposit payment.

What kinds of payment methods do you accept?

Western Union, T/T: 30% deposit in advance, 70% balance against the copy of B/L.


  • Previous:
  • Next:

  • Corridor House Specification
    Specifiction L*W*H(mm) 5995*1930*2896,2990*1930*2896  customzied size could be provided
    5995*2435*2896,2990*2435*2896
    5995*2990*2896,2990*2990*2896
    Roof type Flat roof with four internal drain-pipes (Drain-pipe cross size:40*80mm)
    Storey ≤3
    Design date Designed service life 20 years
    Floor live load 2.0KN/㎡
    Roof live load 0.5KN/㎡
    Weather load 0.6KN/㎡
    Sersmic 8 degree
    Structure Column Specification:210*150mm,Galvanized cold roll steel, t=3.0mm Material: SGC440
    Roof main beam Specification:180mm,Galvanized cold roll steel, t=3.0mm Material: SGC440
    Floor main beam Specification:160mm,Galvanized cold roll steel, t=3.5mm Material: SGC440
    Roof sub beam Specification:C100*40*12*2.0*7PCS,Galvanized cold roll C steel, t=2.0mm Material:Q345B
    Floor sub beam Specification:120*50*2.0*9pcs,”TT”shape pressed steel, t=2.0mm Material:Q345B
    Paint Powder electrostatic spraying   lacquer≥80μm
    Roof Roof panel 0.5mm Zn-Al coated colorful steel sheet, white-gray
    Insulation material 100mm glass wool with single Al foil. density ≥14kg/m³, Class A Non-combustible
    Ceiling V-193 0.5mm pressed  Zn-Al coated colorful steel sheet, hidden nail, white-gray
    Floor Floor surface 2.0mm PVC board, dark gray
    Base 19mm cement fiber board, density≥1.3g/cm³
    Moistureproof layer Moisture-proof plastic film
    Bottom sealing plate 0.3mm Zn-Al coated board
    Wall Material according to customer requirements (sandwich plate or Off-bridge aluminum win-door)
    Door Material according to customer requirements (sandwich plate or Off-bridge aluminum win-door)
    Window Material according to customer requirements (sandwich plate or Off-bridge aluminum win-door)
    Electrical Voltage 220V~250V / 100V~130V
    Wire socket wire:2.5㎡,light switch wire:1.5㎡
    Lighting 1set light & sound control LED ceiling light
    Socket Design according to the quantity of emergency lighting, evacuation instructions
    Emergency Emergency light design according to the fire protection rules
    Evacuation instructions design according to the fire protection rules
    Others Top and column decorate part 0.6mm Zn-Al coated color steel sheet, white-gray
    Skirting 0.8mm Zn-Al coated color steel skirting, white-grey
    Adopt standard construction, the equipment and fittings are accord with national standard. as well as, customized size can be provided according to your needs.
