Mining Camp Buildings Solutions “Flat Pack Prefab Houses”

Short Description:

Efficient, Durable & Rapid Workforce Housing for Remote Mining Operations

Standard Size: 2.4m*6m / 3m*6m, prefab accommodation units for mine workers

Wall Panel: 1-Hour Fireproof Rock Wool Wall Panel

Lifespan: 20 years; can be used longer if maintained

Installation: 2–4 hours per unit

CONTACT

Product Detail

Product Tags

Mines are often located in remote areas that have limited infrastructure and extreme climates and require quick provision of workforce accommodation. Remote mining locations are difficult to control, expensive and labour intensive to build traditionally.

One of the most successful solutions for accommodation projects in modern mining camps has been flat-pack prefab houses. Fast installation, flexible layouts, low transportation costs and long-term durability are advantages to the mining industry worldwide.

GS Housing Group specializes in modular camp building systems for construction sites, oil & gas projects, mineral extraction camps and remote workforce housing.

What is the Mining Camp Building?

A mining camp building is a temporary or semi-permanent accommodation camp built for workers at mining sites. These mine camps generally include the following:

worker dormitory on modular mine accommodation camp

Staff accommodation

Shower Rooms & Toilets

Site office

Security rooms

Dining hall

flat pack container camp oilfield laundry room

Laundry facilities

Reception room

Recreation Room

Today’s mining camps are designed to deliver safe, comfortable, and energy-efficient living conditions for workers while meeting project schedules and operational budgets.

Basic Specifications of the Mining Camp Building Unit

Size	60552435/30252896 mm; a customizable size is available
Storey	≤3
Parameter	lifespan: 20 years, floor live load: 2.0 KN/ ㎡
	roof live load: 0.5 KN/ ㎡
	weather load: 0.6KN/ ㎡
	seismic: 8 degrees
Structure	main frame: SGH440 Galvanized steel, t=3.0mm / 3.5mmsub-beam:Q345B Galvanized steel, t=2.0mm
Structure	paint: powder electrostatic spraying lacquer ≥ 100 μm
Roof	Insulation:glass wool,density ≥14kg/m³ceiling:0.5mm Zn-Al coated steel
Floor	surface: 2.0 mm PVC boardcement board: 19 mm cement fiber board, density ≥ 1.3 g/cm³
	moisture-proof: moisture-proof plastic film
	base external plate: 0.3 mm Zn-Al coated board
Wall	50-100 mm rock wool board;double-layer board: 0.5 mm Zn-Al coated steel

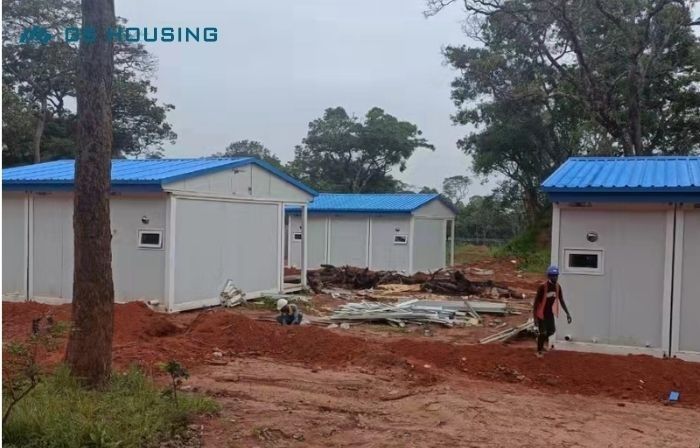

Why containerized modular housing is best for building mining camps

Mining operations pose unique challenges: remote locations, harsh climates, fluctuating workforce numbers, and tight project timelines. Traditional stick-built accommodation just can’t keep up. “Flat pack prefab buildings are increasingly replacing concrete or prefab structures in mining projects because they are more flexible and cheaper.

Deploy in days, not months

Traditional mining camp housing takes 2-3 years to complete. Our flat pack modular units are factory-built and can be up and running in 3–6 months. If your project schedule relies on having workers on site, speed is of the essence.

Efficient and Economical Transportation

Our folding and expandable container houses are designed for maximum shipping efficiency:

6 modular units can be shipped in one standard container

Flat-pack design reduces freight costs to remote areas.

Minimal crew setup—no heavy equipment needed for install

This makes them ideally suited to mining projects in Africa, Australia, the Middle East, South America and South East Asia.

Built for Extreme Weather

Mining camps are often in places with extremes of temperature, from the burning heat of the desert to the freezing nights. GS Housing flat-pack modular buildings are built with galvanized steel structures and insulated sandwich panels for long service life and stable performance.

The main features are corrosion resistance, waterproof construction, fire-resistant materials, thermal insulation, wind drag, and seismic resistance etc.

Scalable Accommodation of Workforce

Mining projects have fluctuating labor requirements—construction can need hundreds of workers, but operational phases demand fewer. Our modular design allows us to expand or move in the future as project needs change.

Global Mining Camp Projects – Actual Performance

With the successful delivery of modular mining camp building projects in Indonesia, Congo, Kazakhstan, and other global mining locations, GS Housing has demonstrated its strong expertise in delivering workforce housing for remote and challenging environments. We do it all: from huge prefab camps with more than 12,000 workers to specialized modular facilities for extreme weather conditions down to -40°C.

Huayou Cobalt Mining Camp Project in Indonesia

GS Housing supplied 3,023 prefab house units to a mining accommodation camp in Indonesia. The project, which is designed for tropical climates, includes steel structures with anti-corrosion properties, moisture-resistant roofing systems, dormitories for workers, prayer rooms, supermarkets, gyms, and dining facilities for more than 12,000 workers.

KFM & TFM Mining Accommodation Camp Project in DR Congo

GS Housing offers 1,100 modular units for 8,000 workers. The mine camp was constructed using fire-resistant materials, flame-retardant coatings, and flat-packed modular systems optimized for transportation to remote mining areas in Africa.

Modular Building for the IPIP Mine Camp Project in Indonesia

GS Housing provided 1,605 flat-packed container house units for this industrial mining camp project, including dormitory units, toilet and shower units, stair systems, walkway connectors, and guard houses. The project was a test of efficient international shipping, fast modular installation, and full support facilities for the workforce.

Modular Camp for Mining Site in Ush-Shoki, Kazakhstan

This modular mining camp is built with 150mm insulated wall panels, double-glazed windows, and all steel structures with wind and snow resistance for extreme cold weather conditions down to -40°C. The project comprises worker dormitories, office and supporting facilities.

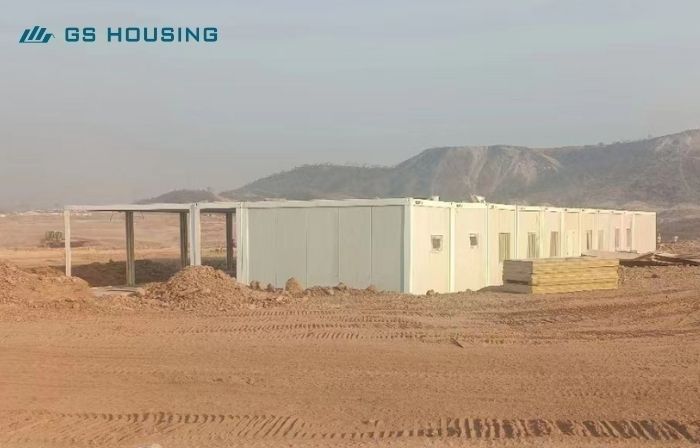

Workforce Housing for Remote Mining Operations (2)

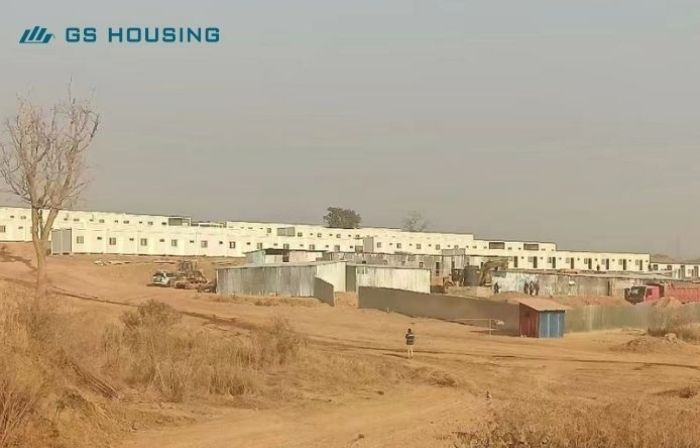

accommodation projects in modern mining camps (2)

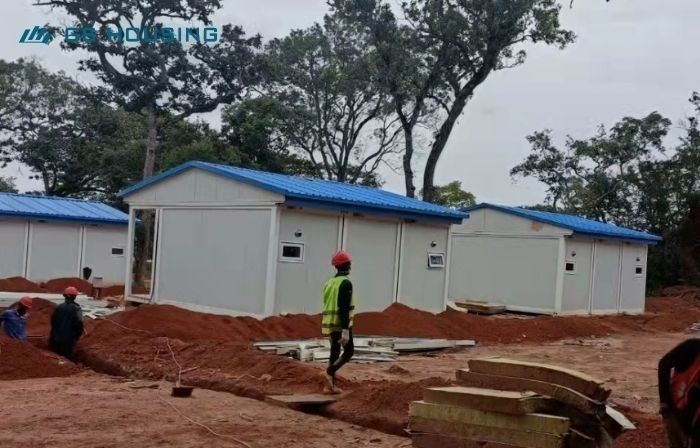

accommodation camp built for workers at mining sites (2)

With 20+ years of experience with projects in 110+ countries, our prefab building solutions have been proven in every climate and terrain.

Why Choose GS Housing for Prefab Mining Camp Buildings

Engineering for Harsh Environments

Our mining camp solutions are built for the harshest conditions. In Kazakhstan, the indoor temperature of the exterior walls of 150 mm rock wool remains above 15 °C even in the case of a temperature of the environment of -40°C. Corrosion resistance in alkaline soil and mining dust environments: total dry film thickness ≥120 μm epoxy zinc-rich primer, polyurethane topcoat on all steel components, shot-blasted.

Fast Deployment

Modular units are pre-fabricated in the factory and flat-packed for efficient shipping. Teams of installers can get camps up and running in weeks, not months. For the Indonesia IMIP project, 1,605 units were delivered in two batches with installation overseen by GS Housing professionals on site to ensure quality.

Certifications Completed

GS Housing products are CE certified, meet ASTM and CSA standards, are EAC certified, and are SGS certified for quality assurance.

User-centered design

Our camps are full communities, with dining halls, prayer facilities, gyms, supermarkets, offices, and meeting rooms, beyond basic shelter. Welfare facilities include showers, WCs and laundry with integrated water/waste management

FAQs (Frequently Asked Questions)

1: How long does it take to make a mining camp building?

Depending on the size of the project and the site conditions, flat pack modular mining camps can generally be installed much faster than traditional buildings.

2: Can we move the mining camps?

Yep. The container homes are flat pack design meaning they can be dismantled and moved making them ideal for short term mining operations.

3. Are Modular Mining Camps Suitable for Cold Weather?

Yes, insulated sandwich panels and galvanized steel structures are appropriate for hot, cold, humid and desert environments.

4. How long does it take to set up a flat pack mining camp?

Well-designed and properly maintained, detachable mining camp buildings will last 20 years.

5: Are the modular camps custom built?

Yeah. The layouts, room dimensions, insulation systems and interior arrangements can be adapted to the needs of the project.

Mining Camp Building Solutions Contact GS Housing

GS Housing Group is a leader in the provision of professional flat pack modular building solutions for the provision of reliable mining camp accommodation systems for the housing needs of the remote workforce of international mining operations.

Call us today for custom mining camp layouts, project suggestions, and assistance with quotations.
