Low Cost Pre Built KZ Prefab Panel House

Short Description:

In response to the design concept of green prefabricated buildings, Quick installation houses achieves the effective control of cost and large-scale production through the intelligent and assembly line production, strict quality control and high production efficiency.


  • Main material: Q345B
  • Service life: 20 years
  • Size: Length: n*KZ Width:3KZ / 4KZ (KZ=3.45m)
  • Net height: 4m / 4.4m / 5m
  • Roof type: Single slope parapet, double slope parapet, double slope,four-slope
  • Product Detail

    Configuration Table

    Specifiction

    Product Tags

    In response to the design concept of green prefabricated buildings, Quick installation houses achieves the effective control of cost and large-scale production through the intelligent and assembly line production, strict quality control and high production efficiency.

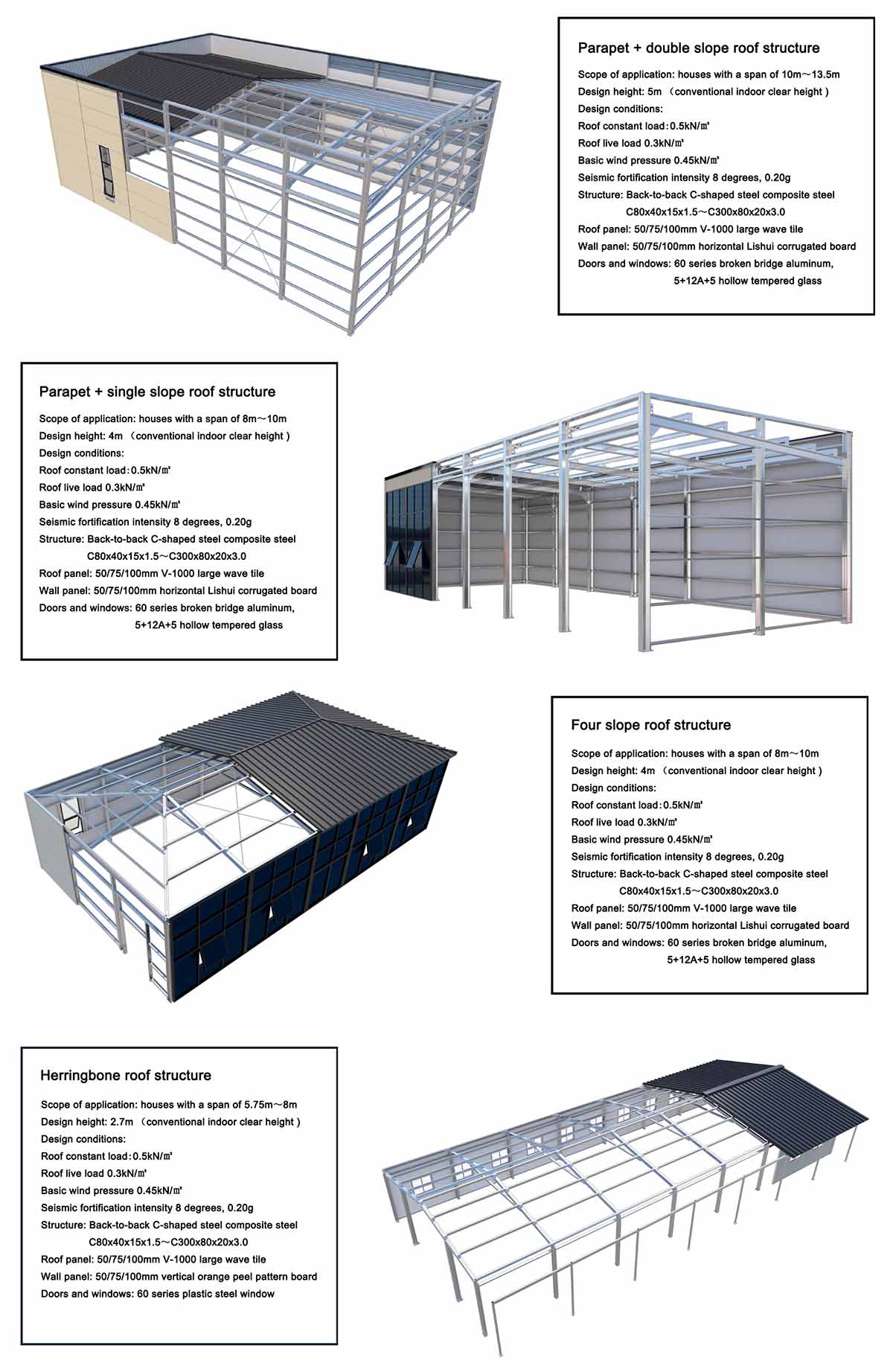

    Prefab KZ House Types

    STRUC

    Section

    scction

    Wall Panel

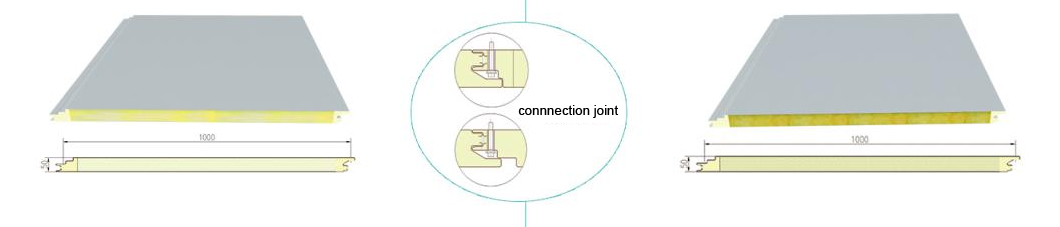

    Glass wool sandwich panel

    (hidden type)

    No.:GS-05-V1000

    Width:1000mm

    Thickness:50mm,75mm,100mm,150mm

    Decorative gap:0-20mm

    Basalt cotton sandwich panel

    (hidden type)

    No.:GS-06-V1000

    Width:1000mm

    Thickness:50mm,75mm,100mm,150mm

    Decorative gap:0-20mm

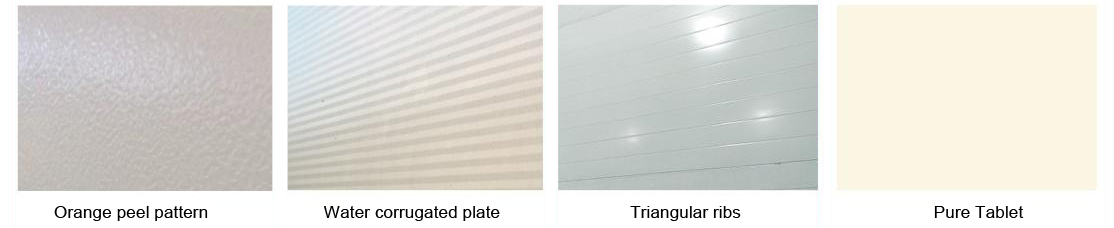

    Wall Panel Surface


    Roof panel

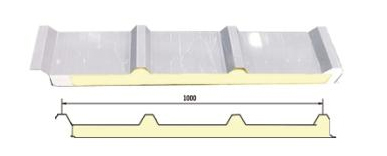

    Glass wool sandwich panel

    No.:GS-011-WMB

    Width:1000mm

    Specification:Corrugated height 42mm,Crest spacing 333mm

    Surface material: Galvanized sheet, color coated sheet, aluminum alloy sheet

    Thickness:50mm,75mm,100mm

    Choice of Wall Panel Finish


    Choice of Ceiling


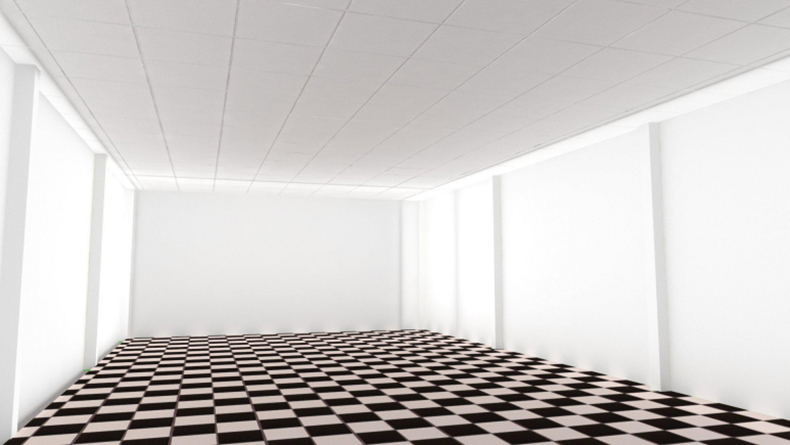

    Common plasterboard:

    Features: 1. The ceiling are mature and the public acceptance is high;

    2. The vertical and horizontal keels are densely distributed, which makes the house more stable;

    3. Cost is low than steel ceiling;


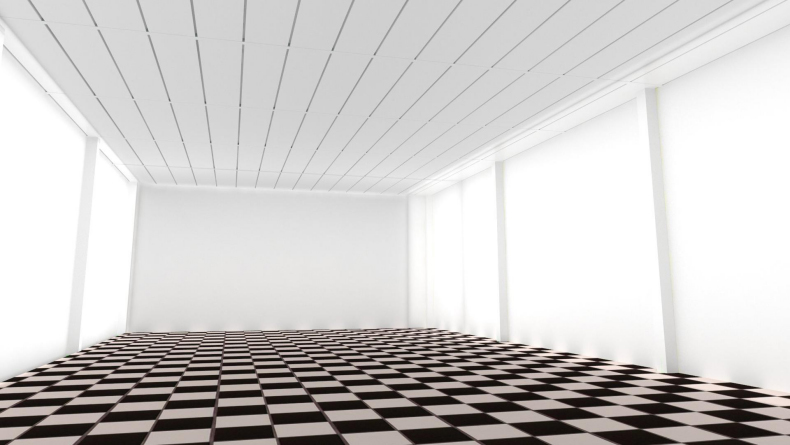

    V290 steel ceiling

    Feature:1.  there is a large space to improve the market, and It can improve the market competition of new products;

    2.It can be made by factory existing equipment, then enhance the economic utilization efficiency of the existing equipment.

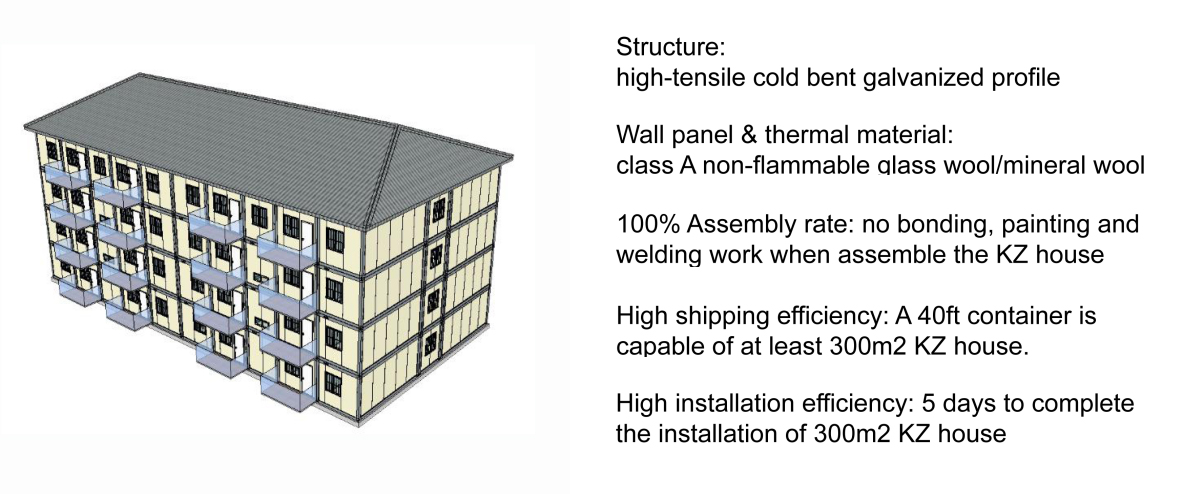

    Advantages of Prefab KZ House

    1.Suitable for big area function usage,such as the theater,meeting room, factory,dinning hall...

    2.The structure is made of high-strength cold-formed galvanized profile, which has excellent seismic and wind resistance performance

    3.The enclosure plate and thermal insulation material are all class A non-combustible glass wool or rock wool

    4.100% construction assembly rate, and there is no gluing, painting or welding operation during the implementation process

    5.High transportation efficiency, A 40ft container can be loaded into 300 ㎡ house material at least. Under the same conditions, the 300 ㎡house can be transport with a 4.5m and 12.6m truck by land, the loading capacity is more than 90%

    6.High installation efficiency. For example, the 300 ㎡ house can be installed about 5 days.

    Functions of Prefab KZ Houses

    vr

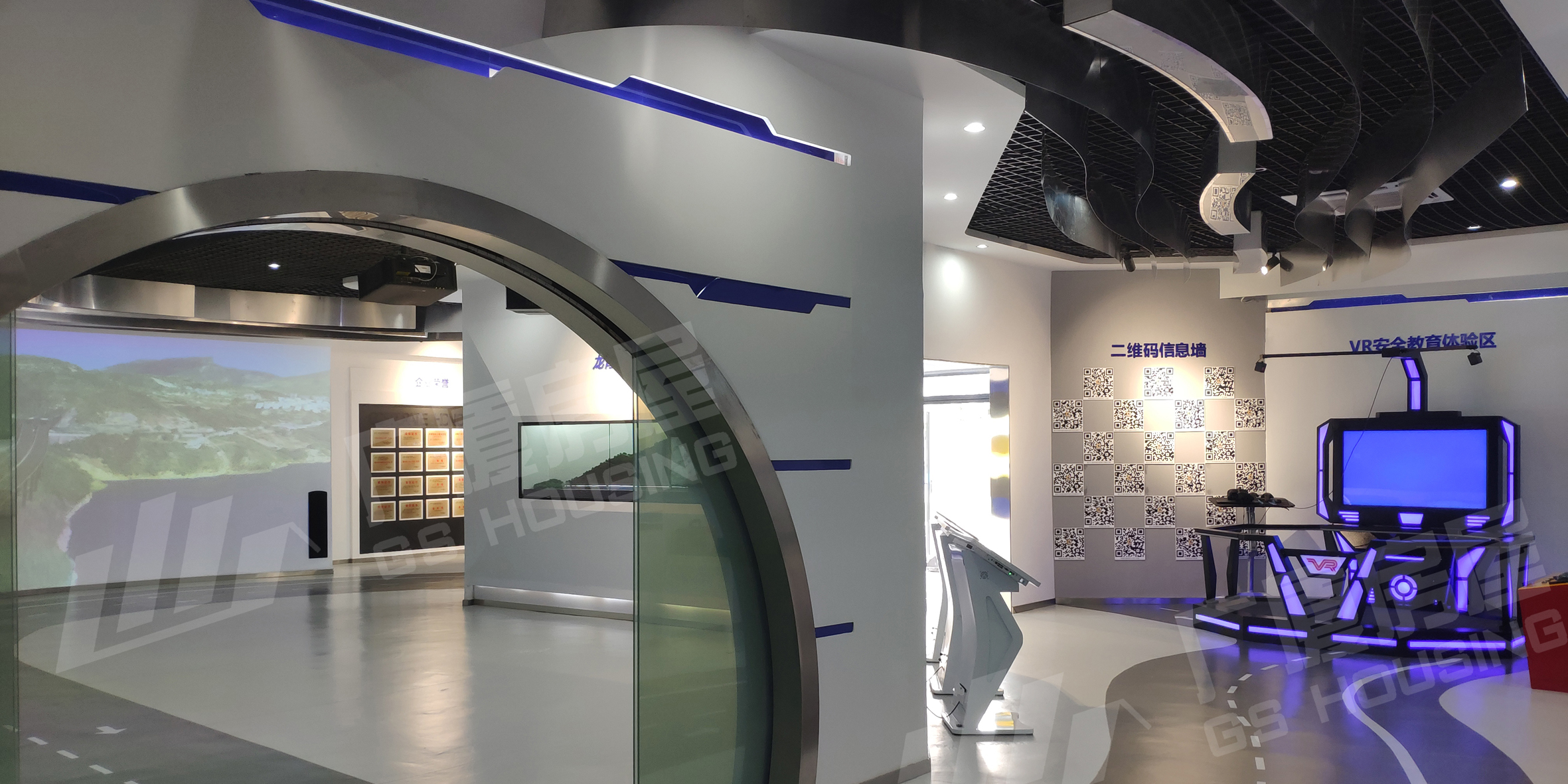

    VR functional house

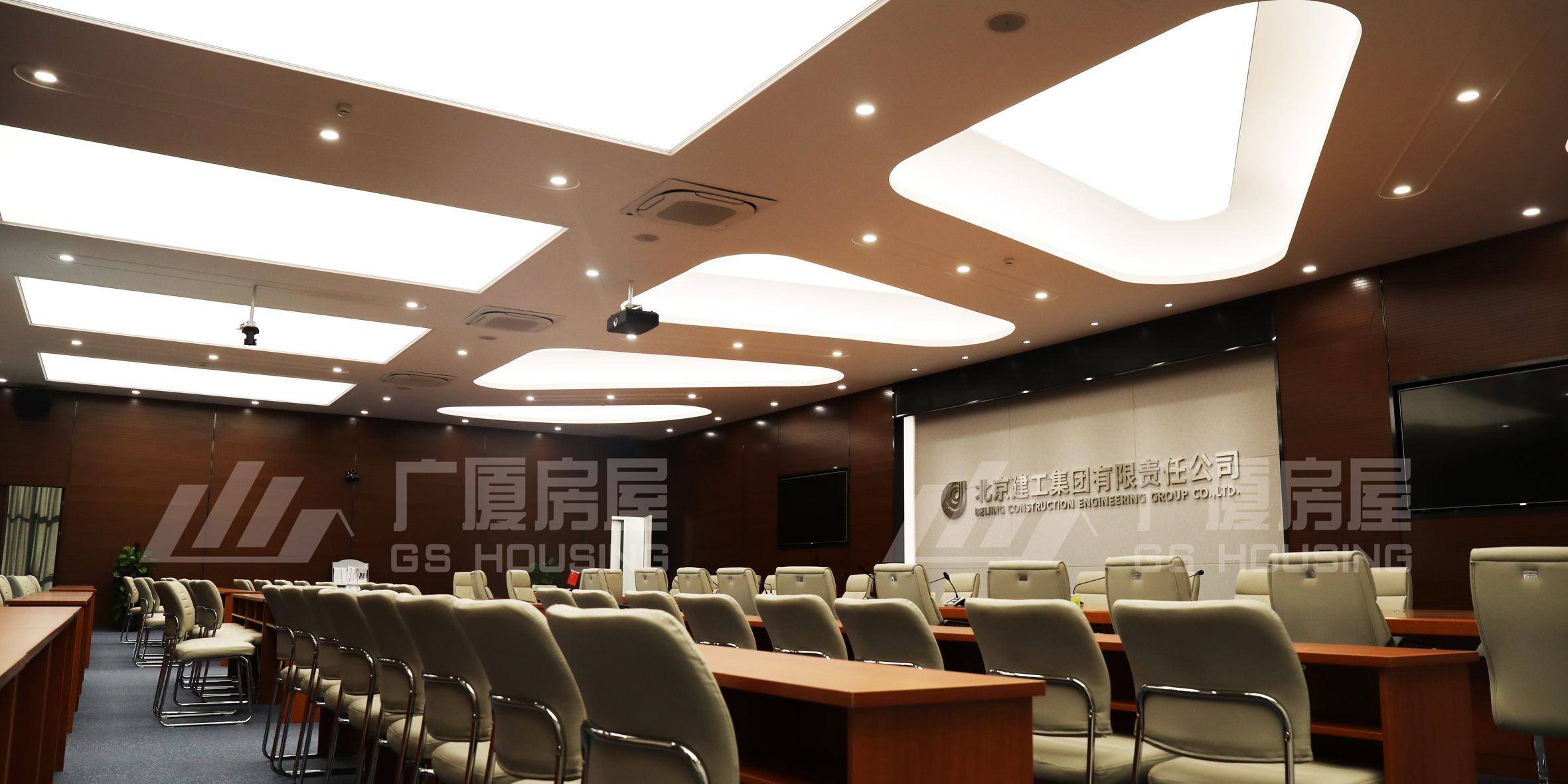

    会议室

    Conference Room

    接待室

    Reception Restaurant

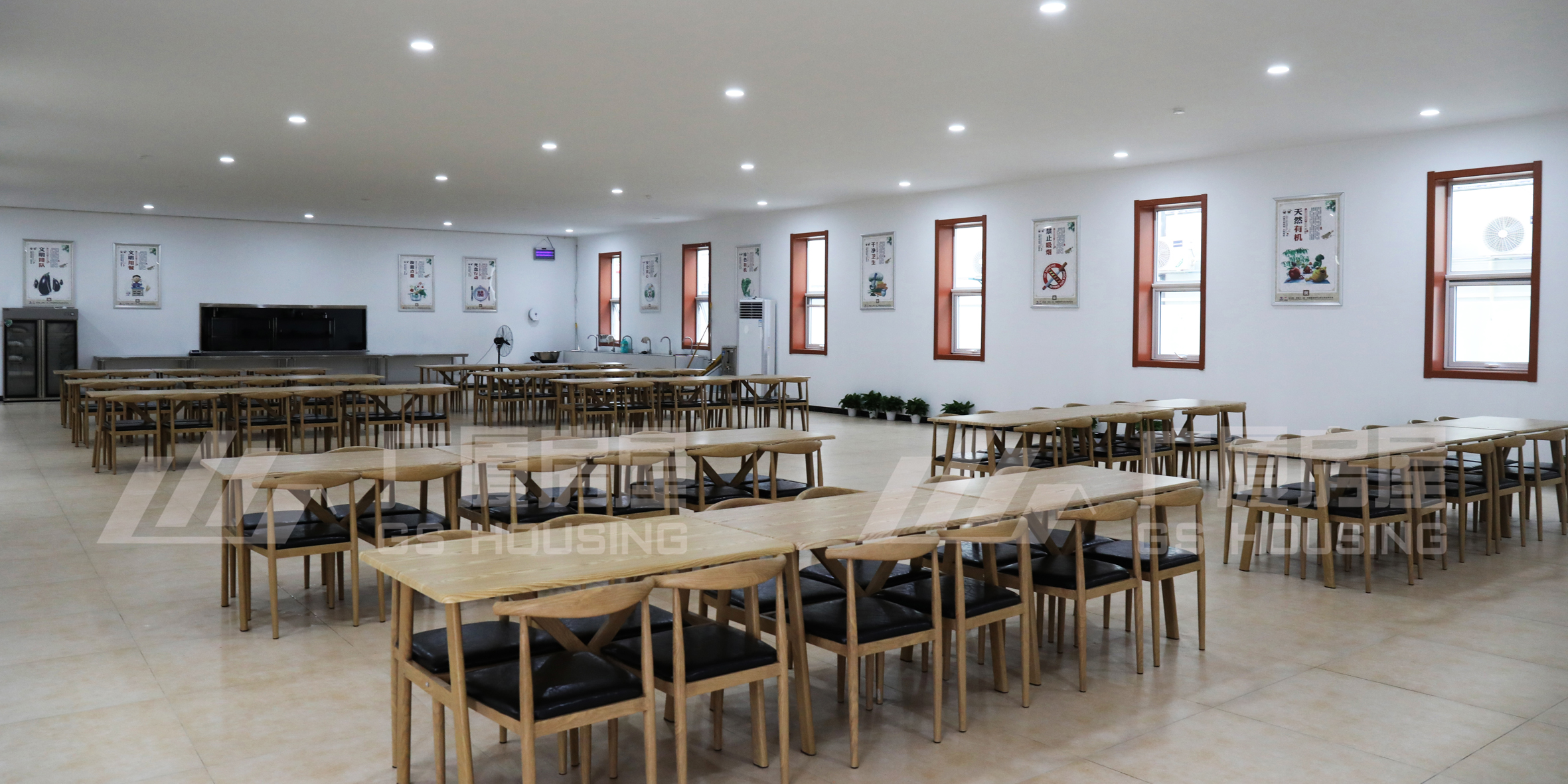

    食堂

    Staff canteen

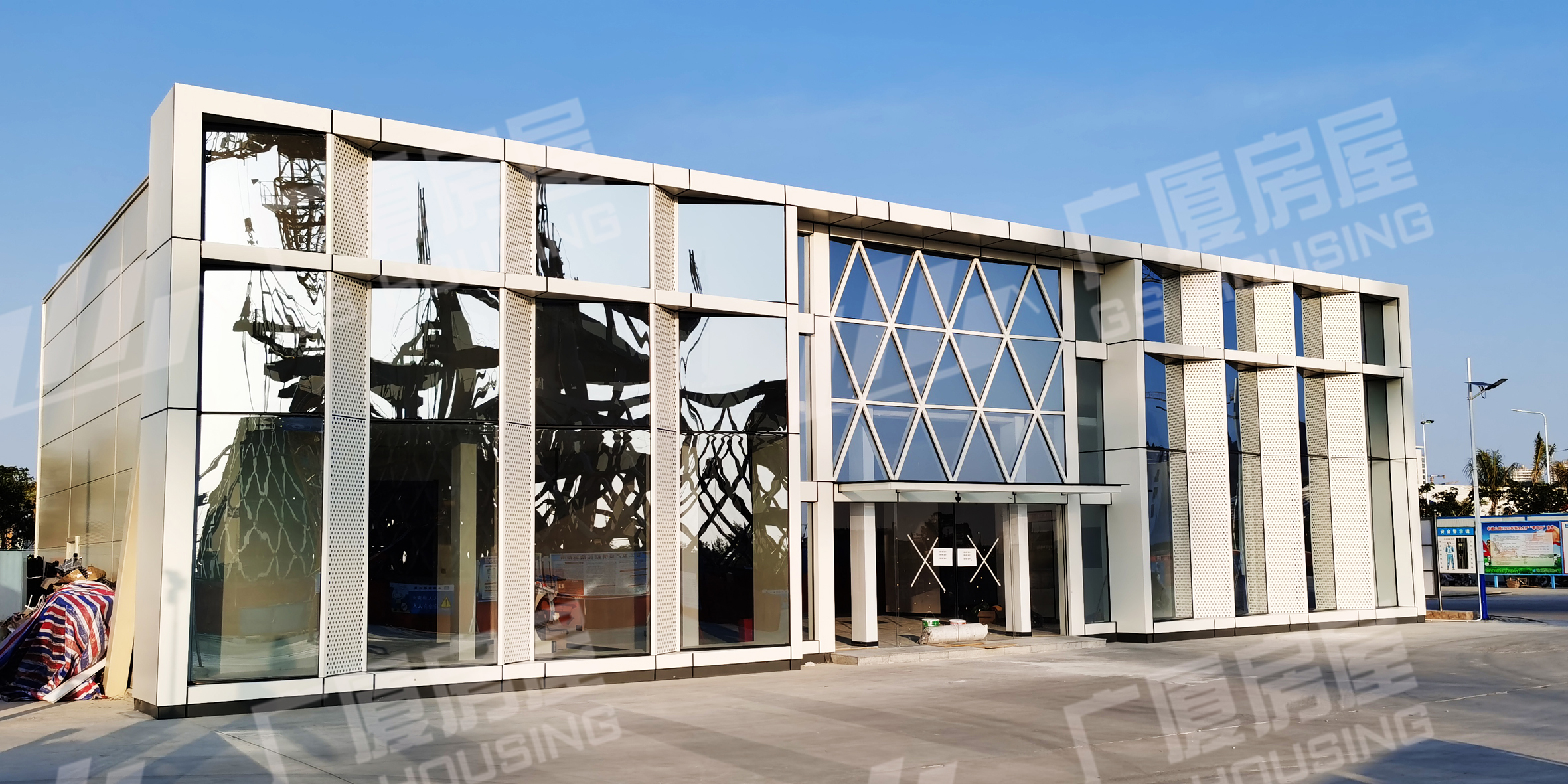

    展厅

    Exhibition hall

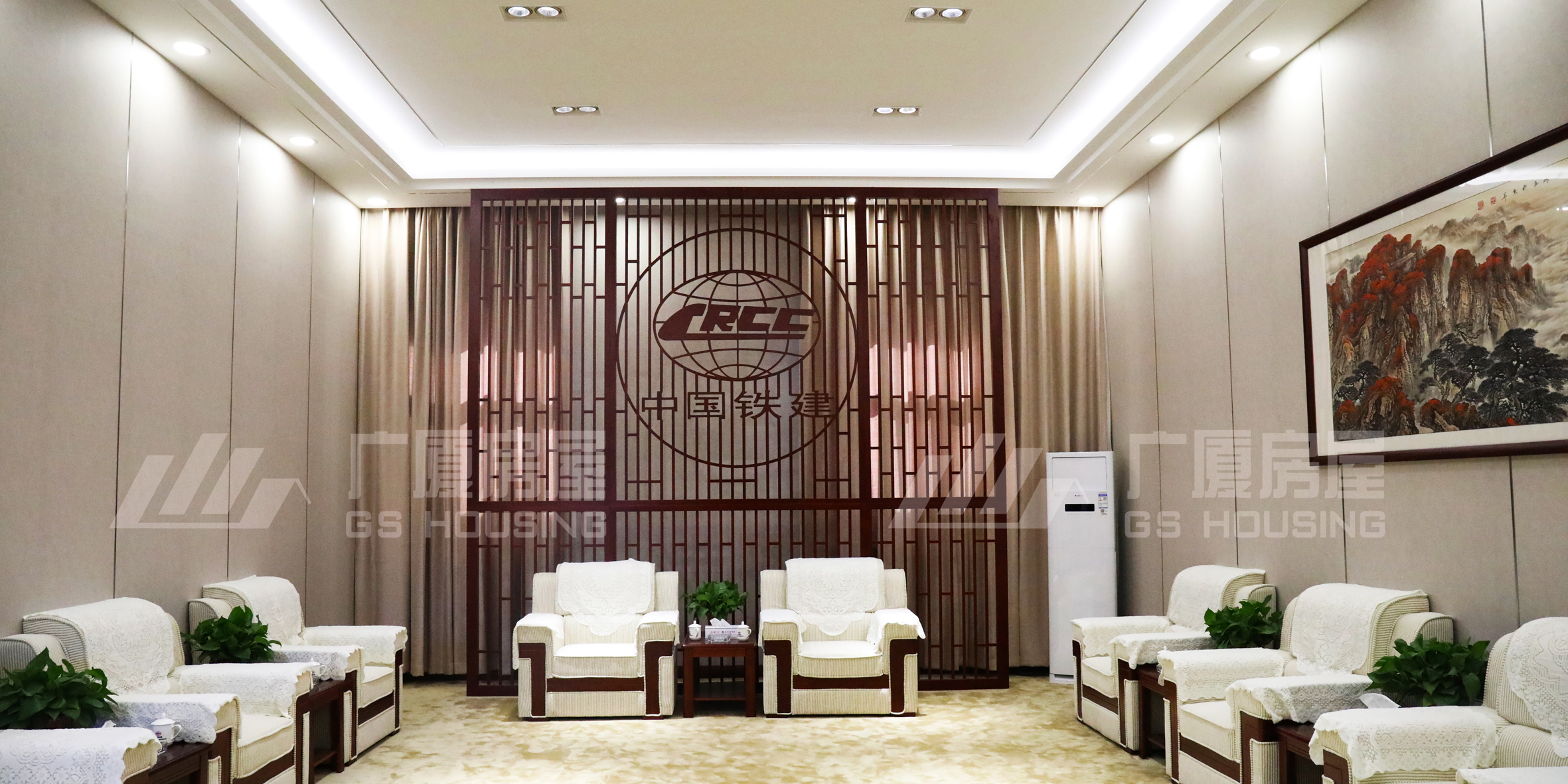

    招待室

    Reception room

    Production Equipments

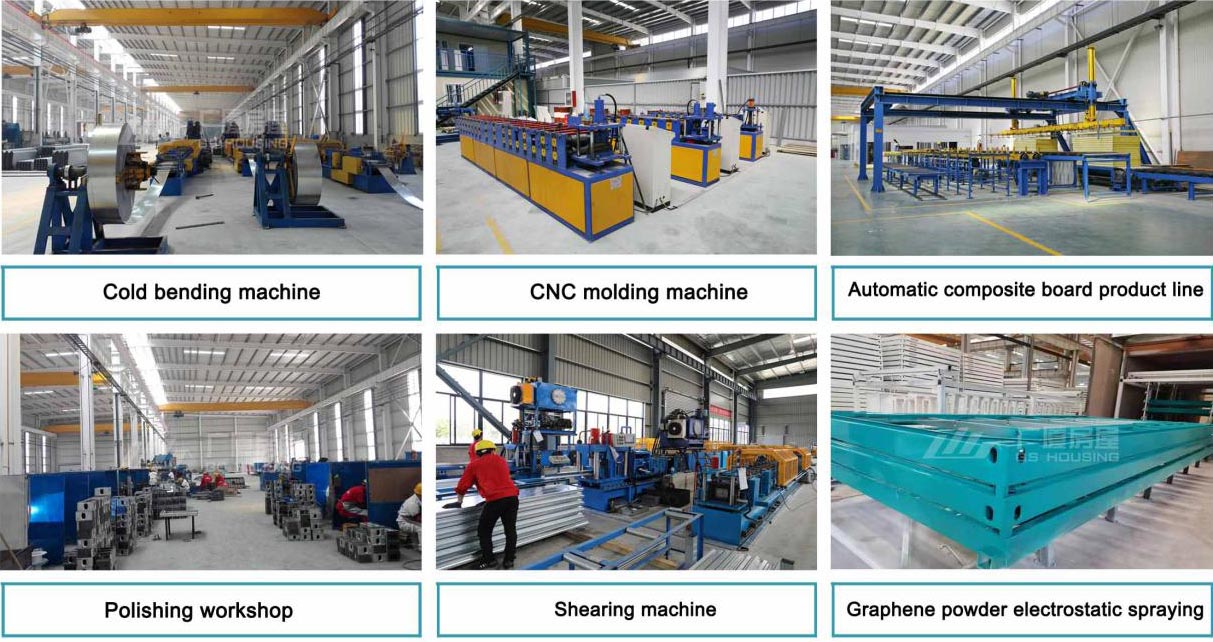

    GS Housing has the advanced supporting modular housing production lines, professional operators are equipped in each machine, so the houses can achieved the full CNC production,that ensure the houses produced timely,efficiently and accurately.


  • Previous:
  • Next:

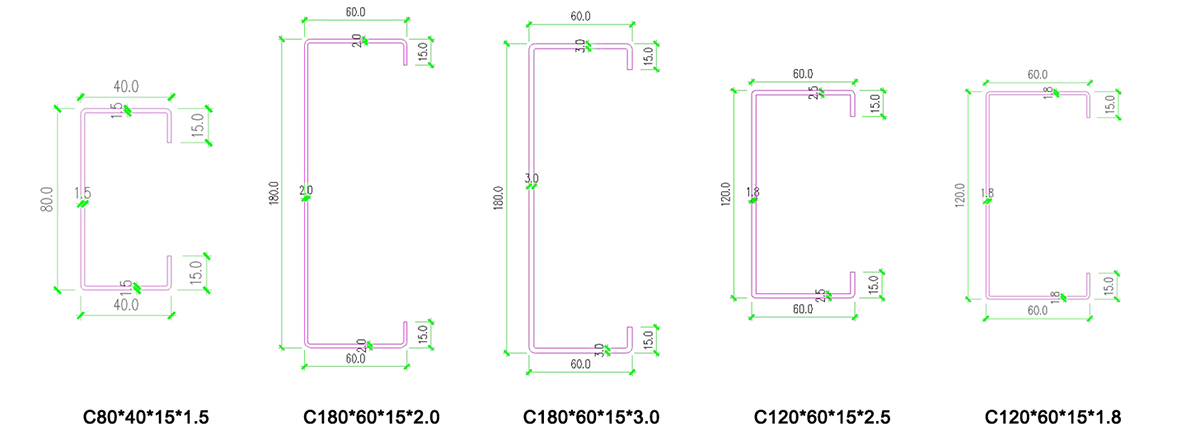

  • Model Width(mm) Height(mm) Max distance of columns(mm) Main Spec (mm) Material Main thickness(mm) Purlin spec(mm) Roof purlin spec(mm) Level supporter spec(mm)
    C120-A 5750 3100 4000 C120*60*15*1.8 Q235B 6 C120*60*15*1.8
    Q235B
    C80*40*15*1.5
    Q235B
    ∅12 Q235B
    3500
    C120-B 8050 3100 4000 C120*60*15*2.5 Q235B 6
    3500
    C180-A 10350 3100 3600 C180*60*15*2.0 Q345B 6
    3500
    C180-B 13650 3100 3600 C180*60*15*3.0 Q345B
    3500 6
    C180-C 6900 6150
    (Outer corridor of 2nd floor)
    3450 C180*60*15*2.0(3.0) Q345B 6
    C180-D 11500 6150
    (inner corridor of 2nd floor)
    3450 C180*60*15*2.0(3.0) Q345B 6
    C180-Plus 13500 5500 3450 C180*60*15*3.0 6
    KZ House specifiction
    Specifiction Size length:n*KZ   Width:3KZ / 4KZ
    Common span 3KZ / 4KZ
    Distance between columns KZ=3.45m
    Net height 4m / 4.4m / 5m
    Design date Designed service life 20 years
    Floor live load 0.5KN/㎡
    Roof live load 0.5KN/㎡
    Weather load 0.6KN/㎡
    Sersmic 8 degree
    Structure Structure type Single slope parapet,Double slope parapet,Double slope,four-slope
    Main material Q345B
    Wall purlin C120*50*15*1.8, Material:Q235B
    Roof purlin C140*50*15*2.0, Material:Q235B
    Roof Roof panel 50mm thickness sandwich board with double 0.5mm Zn-Al coated colorful steel sheet, white-gray
    Insulation material 50mm thickness basalt cotton, density≥100kg/m³, Class A Non-combustible
    Water drainage system 1mm thickness SS304 gutter, UPVCφ110  drain-off pipe
    Wall wall panel 50mm thickness sandwich board with double 0.5mmcolorful steel sheet, V-1000 horizontal water wave panel,ivory
    Insulation material 50mm thickness basalt cotton, density≥100kg/m³, Class A Non-combustible
    Window & Door window Off-bridge aluminium,WXH=1000*3000;5mm+12A+5mm double glass with film
    door WXH=900*2100 / 1600*2100 / 1800*2400mm, steel door
    Remarks: above is the routine design, The specific design should be based on the actual conditions and needs.
