Portal Light Weight Steel Structure Buildings

Short Description:

Steel structure products are mainly made of steel, which is one of the main types of building structures. Steel is characterized by high strength, light weight, good overall rigidity and strong deformation capacity, so it is particularly suitable for building long-span, ultra-high and ultra-heavy buildings; The material has good plasticity and toughness, can have large deformation, and can well bear dynamic load; Short construction period; It has a high degree of industrialization and can carry out professional production with a high degree of mechanization.


Product Detail

Specifiction

Product Tags

Steel structure products are mainly made of steel, which is one of the main types of building structures. Steel is characterized by high strength, light weight, good overall rigidity and strong deformation capacity, so it is particularly suitable for building long-span, ultra-high and ultra-heavy buildings; The material has good plasticity and toughness, can have large deformation, and can well bear dynamic load; Short construction period; It has a high degree of industrialization and can carry out professional production with a high degree of mechanization.

p-2

Compared with ordinary reinforced concrete structure, steel structure has the advantages of uniformity, high strength, fast construction speed, good seismic resistance and high recovery rate. The strength and elastic modulus of steel are many times higher than that of masonry and concrete. Therefore, under the condition of the same load, the weight of steel members is light. From the aspect of being damaged, the steel structure has a large deformation omen in advance, which belongs to the ductile damage structure, which can find the danger in advance and avoid it.

Steel structure workshop is widely used in construction industries such as long-span industrial workshop, warehouse, cold storage, high-rise building, office building, multi-storey parking lot and residential house.

3 Kinds Steel Structure System

p-5

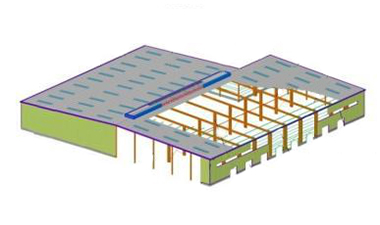

Steel structure: Large column spacing system

p-6

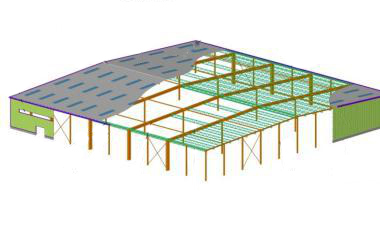

Steel structure: Gantry steel frame system

p-4

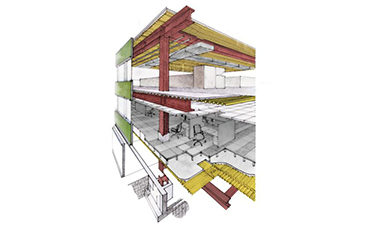

Steel structure: Multi-storey building system

Main Structure Of The Steel Structure House

p-7

Main structure: Q345B low alloy high strength steel

Supporting system: round steel: No.35,hot rolled sections such as angle steel, square pipe and round pipe: Q235B

Roof&wall purlin system: Continuous Z-shaped Q345B thin-walled section steel

Material can be chosen according to the project requirements

Drainage system

The outer gutter shall be used for industrial buildings as far as possible, which is conducive to the smooth drainage of roof rainwater under the condition of snow cover.

p-11
p-10

Thermal insulation is the most core function of the building, so try to use cost-effective thermal insulation foam plays a decisive role in the performance of the building

The roof adopts light board

Industrial plant roof lighting rate is about 8%. we should consider the durability of light board and the convenience of maintenance, maintenance cost during the use of the building. The roof of steel structure workshop of industrial building generally uses 360° vertical lock joint floating roof, and the light plate should be matched with it.

p-9
p-8

The ventilation system

The roof ventilator should be opened as far as possible, which can be arranged along the slope or along the ridge. When the turbine fan is used, the special aviation aluminum base is chosen, which can avoid the hidden danger of leakage

The Wall Panel: 8 Kinds Of Wall Panels Could Be Chosen In Your Projects

p-3

Application

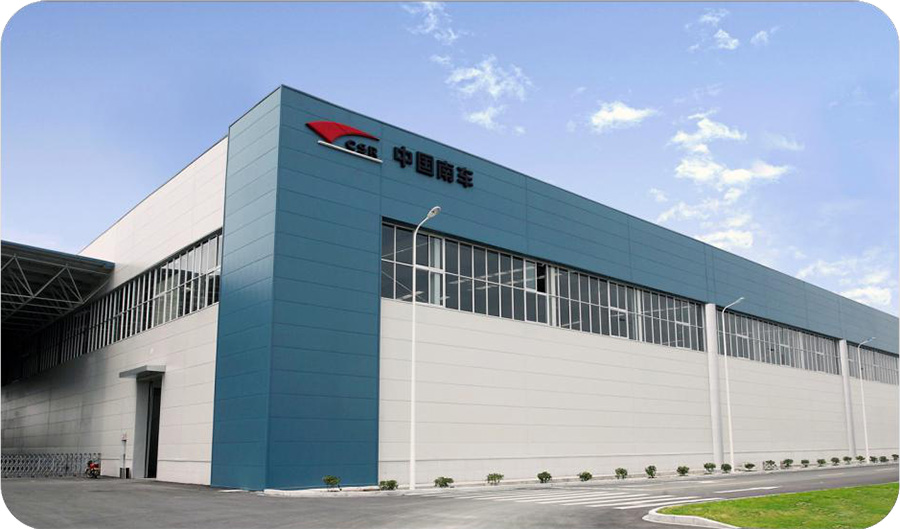

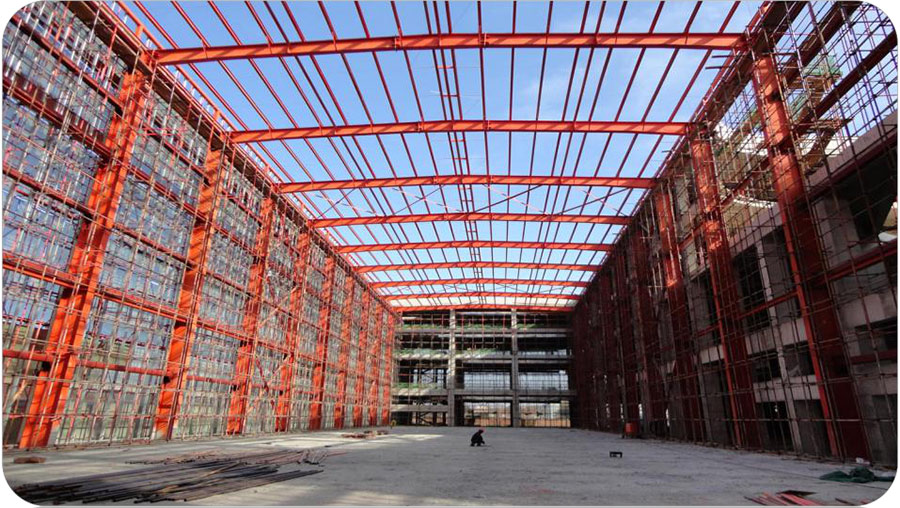

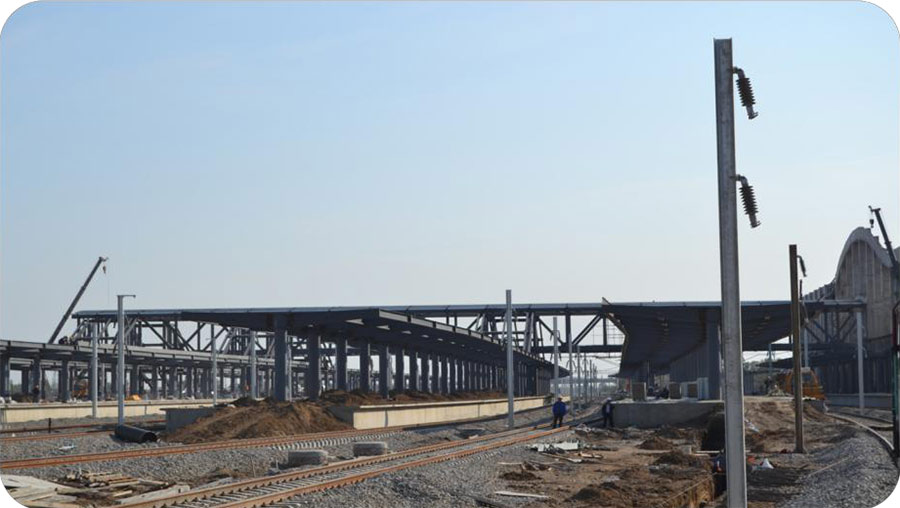

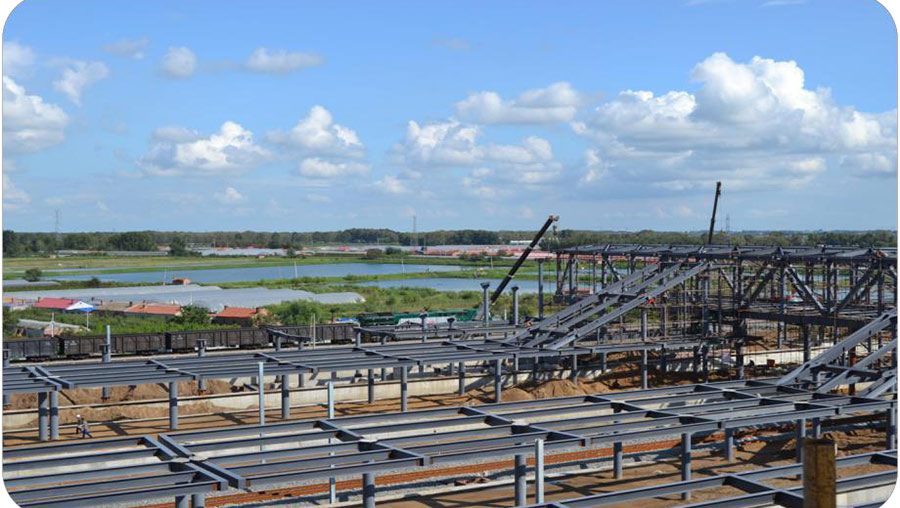

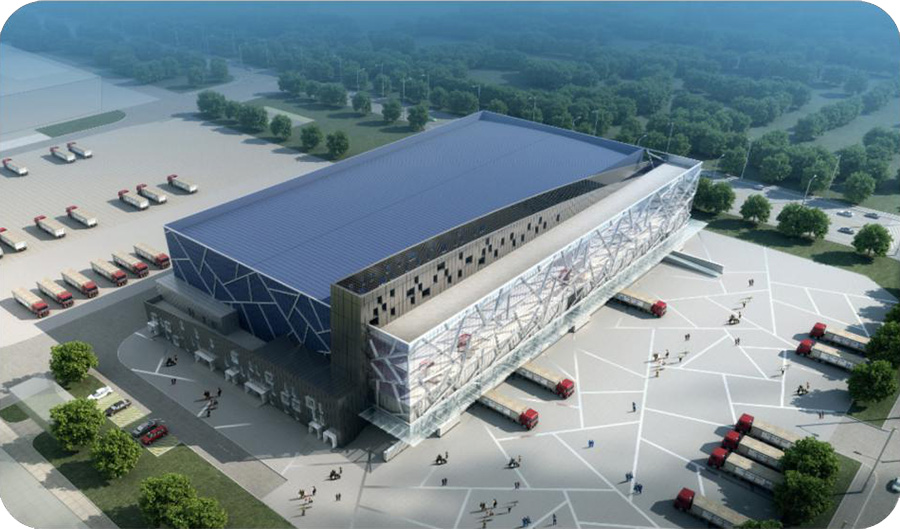

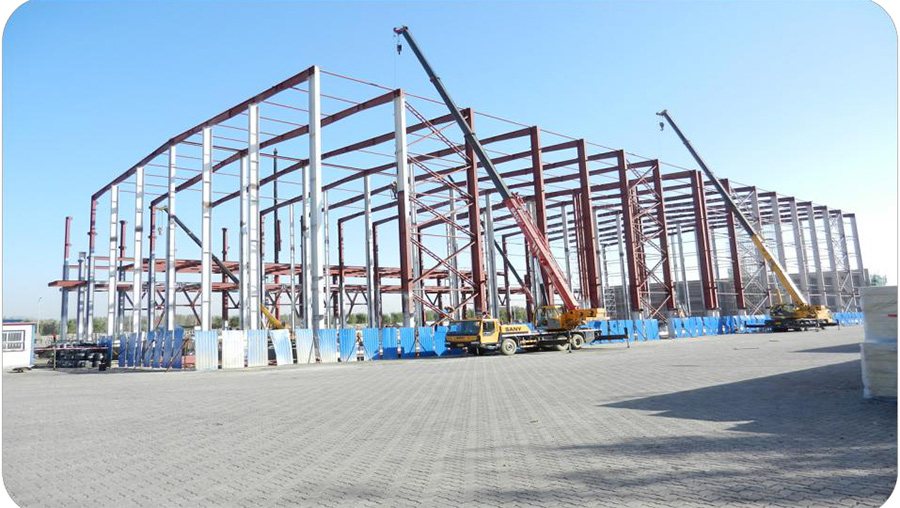

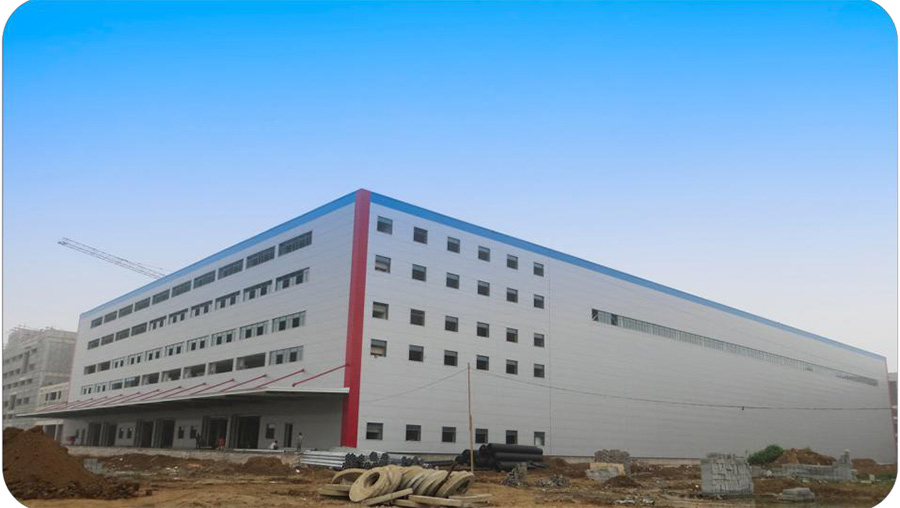

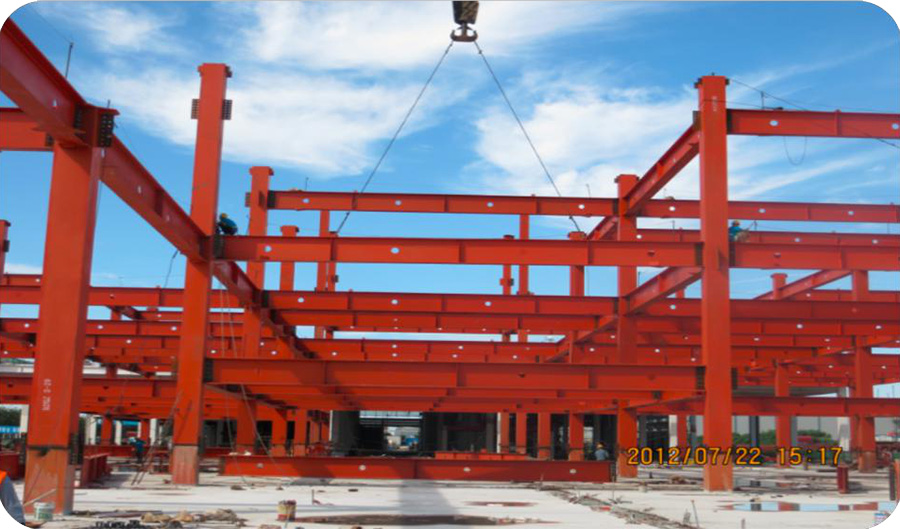

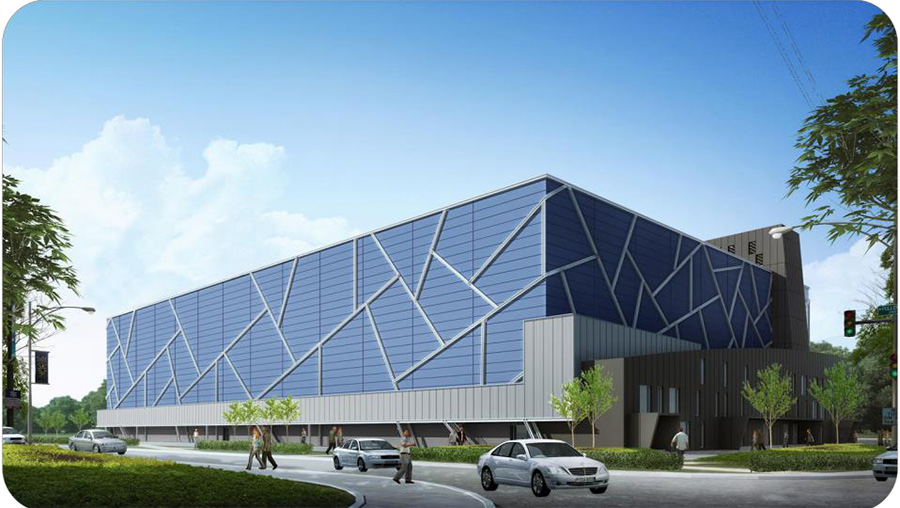

GS housing has undertaken large-scale projects at home and abroad, such as Ethiopia’s Lebi Waste-to-energy Project, Qiqihar Railway Station, Hushan Uranium Mine Ground Station Construction Project in the Republic of Namibia, New Generation Carrier Rocket Industrialization Base Project, Mongolian Wolf Group Supermarket, Mercedes-Benz Motors production base (Beijing), the Laos National Convention Center, Involving large supermarkets, factories, conferences, research bases, railway stations... we have sufficient experience in large-scale project construction and export experience. Our company can send personnel to carry out installation and guidance training at the project site, eliminating customer worries.


  • Previous:
  • Next:

  • Steel structure house specifiction
    Specifiction Length 15-300 meter
    Common span 15-200 meter
    Distance between columns 4M/5M/6M/7M
    Net height 4m~10m
    Design date Designed service life 20 years
    Floor live load 0.5KN/㎡
    Roof live load 0.5KN/㎡
    Weather load 0.6KN/㎡
    Sersmic 8 degree
    Structure Structure type Double slope
    Main material Q345B
    Wall purlin Material:Q235B
    Roof purlin Material:Q235B
    Roof Roof panel 50mm thickness sandwich board or double 0.5mm Zn-Al coated colorful steel sheet/Finish could be choosen
    Insulation material 50mm thickness basalt cotton, density≥100kg/m³, Class A Non-combustible/Optional
    Water drainage system 1mm thickness SS304 gutter, UPVCφ110  drain-off pipe
    Wall wall panel 50mm thickness sandwich board with double 0.5mmcolorful steel sheet, V-1000 horizontal water wave panel/Finish could be choosen
    Insulation material 50mm thickness basalt cotton, density≥100kg/m³, Class A Non-combustible/Optional
    Window & Door window Off-bridge aluminium,WXH=1000*3000;5mm+12A+5mm double glass with film /Optional
    door WXH=900*2100 / 1600*2100 / 1800*2400mm, steel door
    Remarks: above is the routine design, The specific design should be based on the actual conditions and needs.
