Prefab Building Solutions: Quick, Reusable, and Movable Modular Construction

Short Description:

Prefabricated Buildings Solutions for Construction Site Camps


  • Standard Size: 2.4m*6m / 3m*6m, prefab accommodation units
  • Wall Panel: 1-Hour Fireproof Rock Wool Wall Panel
  • Lifespan: 15–20 years; can be used longer if maintained
  • Installation: 2–4 hours per unit
  • porta cbin (3)
    porta cbin (1)
    porta cbin (2)
    porta cbin (3)
    porta cbin (4)

    Product Detail

    Product Tags

    GS Housing offers high-quality prefabricated building solutions for quick deployment, robust structural performance, and long-term use in construction sites; emergency housing after disasters; movable military barracks; quick-build prefab hotels; and portable schools. Our prefabricated building systems provide a contemporary construction solution that is quicker, safer, and more economical than conventional building techniques by fusing factory accuracy with on-site productivity.

    A prefab building: what is it?

    Prefabricated buildings are modular constructions that are assembled on-site after being produced in a controlled factory setting. Prefab buildings provide outstanding efficiency, durability, and design flexibility thanks to their standardized modules, cutting-edge steel framing, and high-performance insulation panels. 结构图



    Technological Details of China's Prefabricated Buildings

    Size 6055*2435/3025*2896mm,customable
    Storey ≤3
    Parameter liftspan:20 yearsfloor live load:2.0KN/㎡roof live load:0.5KN/㎡weather load:0.6KN/㎡sersmic:8 degree
    Structure main frame:SGH440 Galvanized steel, t=3.0mm / 3.5mmsub beam:Q345B Galvanized steel, t=2.0mmpaint:powder electrostatic spraying   lacquer≥100μm
    Roof roof panel:roof panelInsulation:glass wool,density ≥14kg/m³ceiling:0.5mm Zn-Al coated steel
    Floor surface:2.0mm PVC boardcement board:19mm cement fiber board, density≥1.3g/cm³moisture-proof:moisture-proof plastic filmbase external plate:0.3mm Zn-Al coated board
    Wall 50-100 mm rock wool board;double layer board:0.5mm Zn-Al coated steel

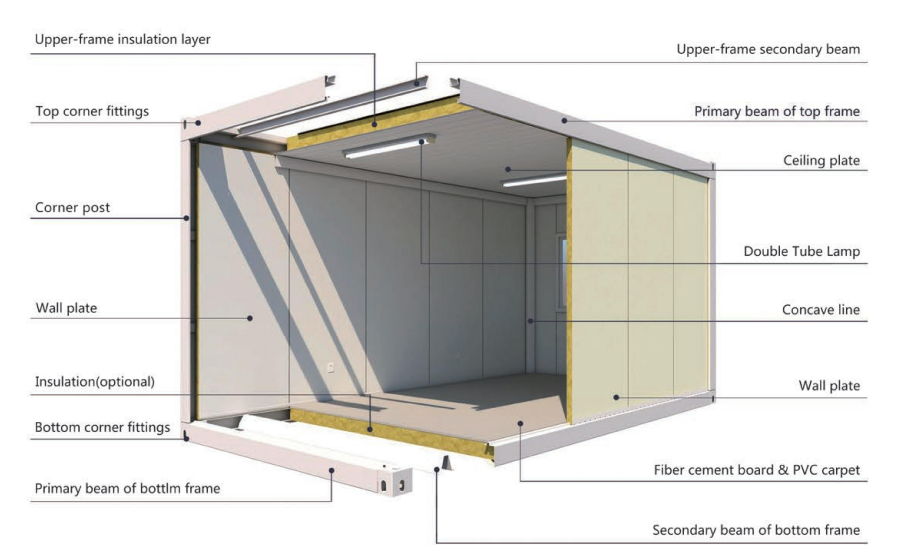

    flat pack container house structure

    Key Benefits of GS Housing Prefabricated Buildings

    1. Quick Buildings

    √ 70% quicker than conventional construction techniques

    √ The main structural components are produced in the GS Housing factory.

    √ Prefabricated containers that require little on-site work

    2. Strong Structural Integrity

    √ Steel Frame made of galvanized steel treated to prevent corrosion

    √ Designed to endure severe weather, powerful winds, and frequent use

    √ Ideal for medium-term structure building

    3. Superior Fire Safety & Insulation

    √ Sandwich panels made of rock wool

    √ Grade A fire safety

    The two main advantages are energy efficiency and a stable indoor temperature.

    4. Adaptable Style and Simple Growth

    √ Layouts are completely customizable.

    √ Select from designs that are single or multi-story.

    When necessary, projects can be moved, expanded, or reconfigured.

    5. Low Maintenance and Economical

    √ There is less material waste.

    √ The cost of labor is less.

    √ With a 15- to 25-year lifespan, the structure is made to last.

    6. Environmentally friendly and sustainable

    √ Prefabrication reduces carbon emissions, noise, and dust.

    √ Modular structure parts can be used again.

    √ The strategy promotes green building initiatives.




    Prefabricated Building Construction Uses

    Prefab houses from GS Housing are frequently used for:

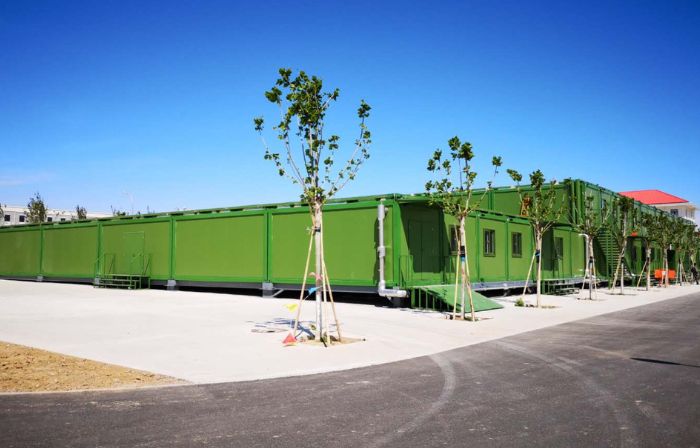

    military barrack

    military housing

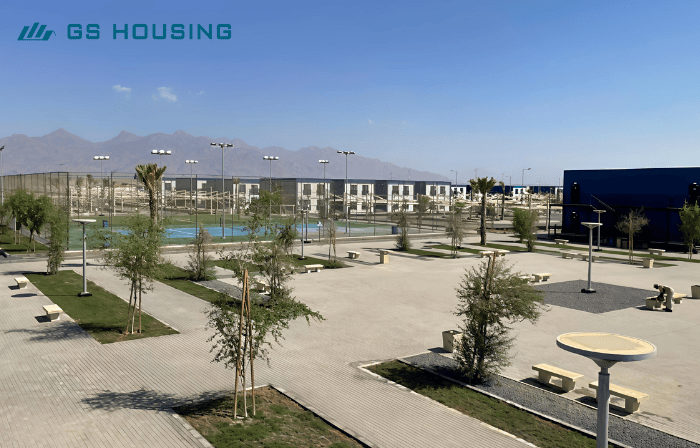

    modular town

    modular town

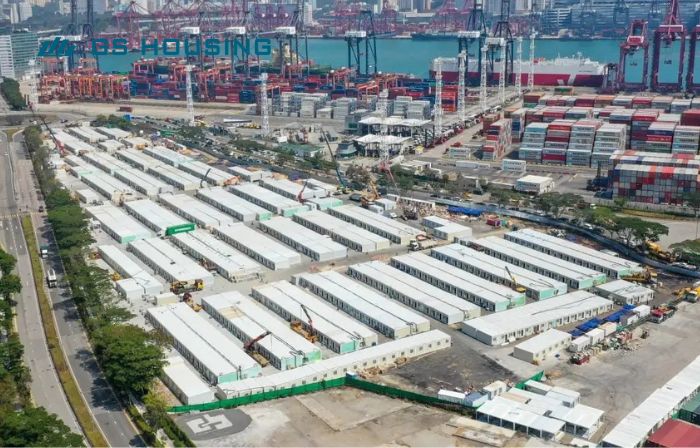

    prefab hospital

    prefab hospital

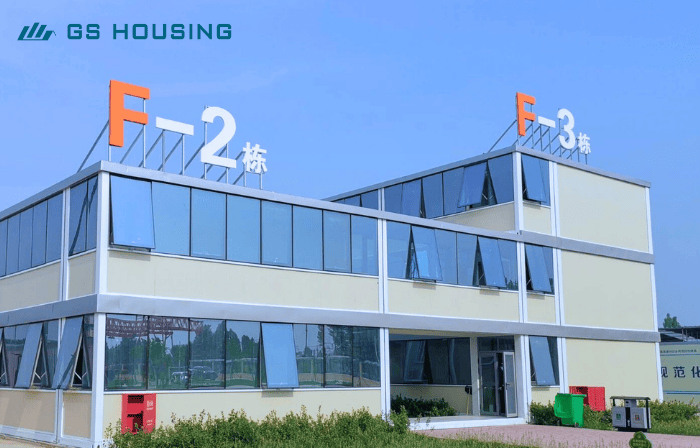

    modular office

    container office

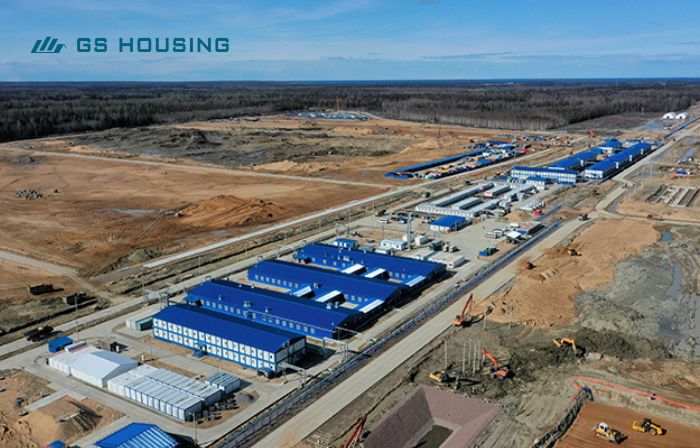

    worker accommodation

    oil&gas field camp

    Prefab Hotel

    modular hotel

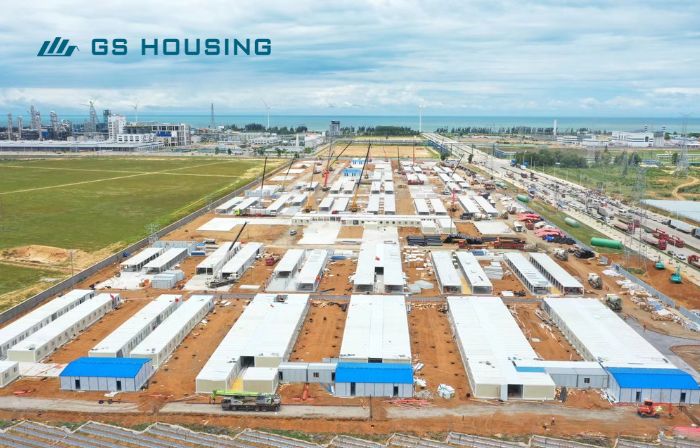

    emergency housing after diaster

    emergency housing after diaster

    prefab labour canteen

    prefab canteen&kitchen



    Why Opt for GS Housing? China's Top Prefab Building Manufacturer

    ✏ A one-stop prefabricated building provider with six state-of-the-art facilities and a daily capacity of more than 500 prefabricated building units, GS Housing effectively and consistently completes large-scale prefab camp projects.

    ✏ Experience with Global Projects

    ✏ Serving EPC contractors, NGOs, governments, and commercial businesses in Asia, Africa, the Middle East, South America, and Europe.

    ✏ Completely compliant with global modular building standards: ASTM, CE, GOST, ISO, and SGS

    Find Out Prefab Building Cost Now

    Get in touch with us right now to get a professional prefab accommodation camp solution in 12 hours.
