ASTM High Quality Porta Cabin Housing for Construction Camp
Porta cabin housing = Top frame components + Bottom frame components + Columns + Wall panels + Decorations
Using modular design concepts and production technology, modularize a house into standard parts and assemble the portable house on the construction site.
Structure of the portable cabin
Wall panel system of porta cabin fabrication
Outer board:0.42mm Alu-zinc colorful steel plate, HDP coating
Insulation layer: 75/60mm thick hydrophobic basalt wool (ECO-FRIENDLY), density ≥100kg/m³, class A non-combustible.
Inner board :0.42mm Alu-zinc colorful steel plate, PE coating
Corner column system of portacabin
The columns are connected with top & bottom frame with Hexagon head bolts(strength: 8.8)
The insulation block should be filled in after installed columns.
Insulating tapes among the junctions of the structures and the wall panels should be added to prevent the effect of cold and heat bridges and improve the performance of heat preservation and energy saving.
Top frame system of porta cabin office
Main beam: 3.0mm SGC340 galvanized cold-rolled steel profile. Sub-beam: 7pcs Q345B galvanizing steel, spec. C100x40x12x1.5mm, the space between sub-beams is 755mm.
Roof panel: 0.5mm thick Alu-zinc colorful steel plate, PE coating, Alu-zinc content ≥40g/㎡; 360-degree lap joint.
Insulation layer: 100mm thickness glass wool felt with aluminum foil on one side, density ≥16kg/m³,class A non-combustible.
Ceiling plate: 0.42mm thickness Alu-zinc colorful steel plate, V-193 type (hidden nail), PE coating, galvanized zinc content ≥40g/㎡.
Industrial socket: inlaid in the short side of the top frame beam explosion-proof box, a general plug. (pre-punching on the explosion-proof box )
Bottom frame system of cabin portable
Main beam: 3.5mm SGC340 galvanized cold-rolled steel profile;
Sub-beam: 9pcs "π" typed Q345B, spec.:120*2.0,
bottom sealing plate: 0.3mm steel .
Inner floor: 2.0mm PVC floor, B1 grade non-combustible;
Cement fiberboard:19mm,density ≥ 1.5g/cm³, A grade non-combustible.
Corner post system of prefabricated container porta cabin
Material: 3.0mm SGC440 galvanized cold rolled steel profile
columns QTY:four can be interchanged.

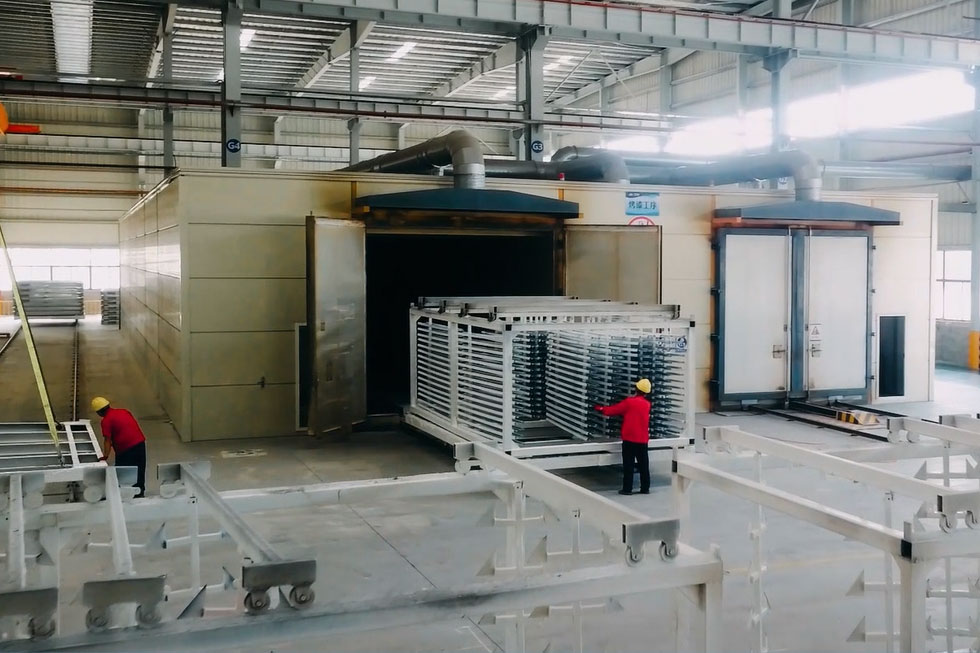

Painting of portacabin office
Powder electrostatic spraying, lacquer≥100μm
Specification of the porta cabin for sale
Customized porta cabin offices can be done too, GS housing Group has its own R&D dept. if you have the new style design , welcome to contact us, we are glad to study with you together.
| Model | Spec. | House outer size(mm) | House inner size (mm) | Weight(KG) | |||||
| L | W | H/packed | H/Assembled | L | W | H/Assembled | |||
| Type G Flat packed housing | 2435mm standard house | 6055 | 2435 | 660 | 2896 | 5845 | 2225 | 2590 | 2060 |
| 2990mm standard house | 6055 | 2990 | 660 | 2896 | 5845 | 2780 | 2590 | 2145 | |
| 2435mm corridor house | 5995 | 2435 | 380 | 2896 | 5785 | 2225 | 2590 | 1960 | |
| 1930mm corridor house | 6055 | 1930 | 380 | 2896 | 5785 | 1720 | 2590 | 1835 | |
2435mm standard house
2990mm standard house
2435mm corridor house
1930mm corridor house
Different functions of the porta cabin housing
The porta cabin houses can be designed to various construction camp with differrent function, such as container office, worker dormitory, leader dormitory with toilet, luxury meeting room,VR exbition hall, super market, coffee bar, restaurant....
Supporting facilities
Certifications of the porta cabin housing
GS Housing Group has more than 20 years of product development experience and has always been at the forefront of the Portable House industry. We have not only contributed to the formulation of China's modular building standards, but our products also meet strict market standards such as Russia's GOST, the Middle East's SASO, the United States' ASTM, UL, European CE, and have passed multiple tests by well-known certification agencies such as SGS and BV.
ASTM
CE
EAC
SGS
Installation video of the porta cabin housing
Our comprehensive pre-sales and after-sales services cover the entire project lifecycle, from initial consultation to final delivery. We provide on-site and off-site support, offering professional guidance and assistance throughout the assembly, installation and even marketing stages.
Detachable House Building Case of GS Housing Group
GS Housing has undertaken many projects in Middle East,Russia, Africa, Indonesia, US, Canada, Chile etc.,Our portacabin labour camps have withstood the test of severe weather.
Brife of GS housing group
GS Housing Group is one-stop porta cabin supplier which was established in 2001, and headquarthered in Foshan, Guangdong,China.
Our main products include various types of modular houses, which are widely used in temporary housing and emergency scenarios, commercial and public services, cultural tourism and accommodation, education and medical care, industry and military, agriculture and scientific research, creativity and public facilities, etc. due to their convenience, flexibility and reusability.
GS housing has six major prefabricated container portable cabin factories in Jiangsu, Guangdong, Sichuan, Tianjin, Liaoning,with a total area of 430,000 square meters and a monthly production capacity of 20,000 sets.
